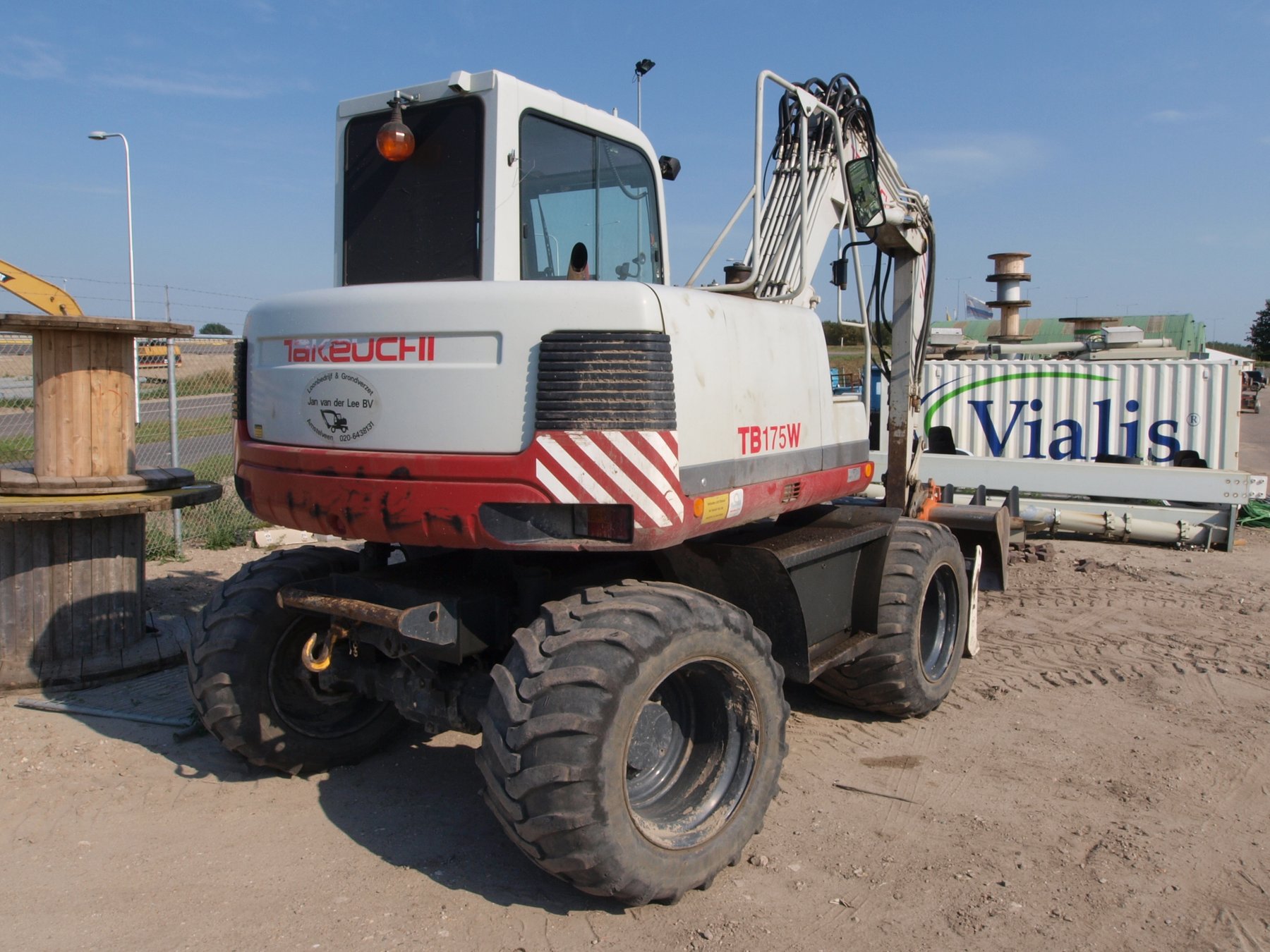

Takeuchi TB175W

Series: Takeuchi Mobile Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=19622372 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the TB175W, Takeuchi offers a model from the Takeuchi Mobile Excavator series. The engine delivers 53 kW, with a displacement of 3,318.4 cm³. Rated speed is 2,200 rpm. The unladen weight is 7,905 kg. The wheelbase measures 2,100.1 mm. Ground clearance is 335.3 mm. The tank holds 120.4 litres. The pump delivers 212.4 l/min. The hydraulic tank holds 135.1 litres. Working pressure is 280 bar. The cooling system holds 12.1 litres. The oil fill is 10.2 litres. The engine fitted is the 4TNV98T-ZSTBW. Tyre size: 8,25-20-12PR. Rated output across the Takeuchi range ranges from 6 to 72.3 kW; the TB175W sits in the upper part of that range with 53 kW. Its immediate neighbours are the TL230 Series 2 below it with 51 kW and the TW80 above it with 54.4 kW. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNV98T-ZSTBWcorrect
Power53 kWcorrect
Rated speed2,200 rpmcorrect
Displacement3,318.4 cm³correct
Coolant capacity12.1 lcorrect
Engine oil capacity10.2 lcorrect

Dimensions and weights

Wheelbase2,100.1correct
Ground clearance335.3correct
Unladen weight7,905 kgcorrect

Drivetrain and chassis

Tyre size8.25-20-12PRcorrect

Working data

Pump flow212.4 l/mincorrect
Hydraulic oil capacity135.1 lcorrect
Hydraulic pressure280 barcorrect
Fuel tank capacity120.4 lcorrect

Other data

Height2,971.8correct

Where this model stands

Power-to-weight ratio: 6.7 kW/t (53 kW / 7.9 t)

Stronger than 16% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB175W have?

The Takeuchi TB175W delivers 53 kW.

How much does the Takeuchi TB175W weigh?

The unladen weight is 7,905 kg.

What engine does the Takeuchi TB175W have?

3,318 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
