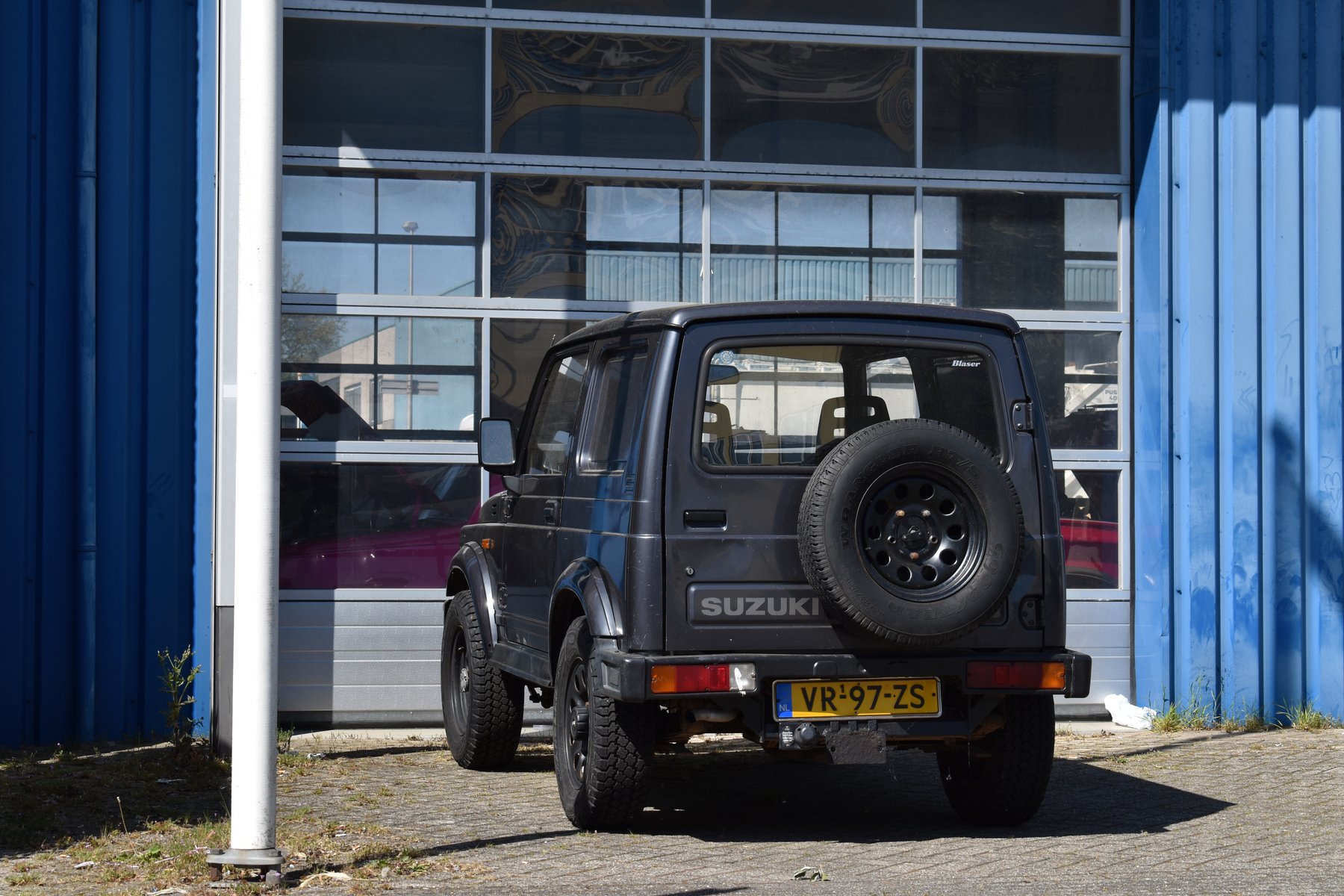

Suzuki SAMURAI VAN
Built: 1988-1993 · Series: SAMURAI
More machines from model year 1988
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Suzuki Samurai: the collection page for the ladder-frame light off-roader, Commercial and Van body styles, 1.3-litre petrol and 1.9-litre diesel, 46 to 51 kW
The Suzuki Samurai is the export name for the SJ413/SJ410 line introduced in 1985, a compact off-roader with a ladder frame and live axles that was also sold in many countries as the SJ or, built under licence in Spain, as the Santana. The Commercial suffix marks the two-seat utility version with blanked rear windows and a flat load floor, Van the closed body with rear glazing, and Pick-up the open bed; Rhino and Blue Lagoon were special editions, LX an upper trim level.
Read on 3 more paragraphs
The register lists 17 versions here with 46 to 51 kW from four-cylinder engines of 1,298 to 1,900 cm³ displacement, weights of 885 to 1,200 kg, gross vehicle weights of 1,330 to 1,470 kg, lengths around 3,470 to 3,480 mm and widths of 1,520 to 1,640 mm.
As a light, rugged off-roader, the Samurai sat below the larger Vitara and competed with the Lada Niva and early Daihatsu off-roaders; the Commercial version was widely registered as an inexpensive utility vehicle for agriculture, forestry and trades.
On a used example, rust on the box-section ladder frame and crossmembers matters most, along with the condition of the front axle's free-wheeling hubs and kingpins, the clutch, and on early models the carburettor. Because the mechanicals are simple and well supported with parts through off-road specialists, frame rust and bodywork condition usually matter more than the drivetrain.
Sources: Kennwerte der Modelle Suzuki Samurai, Suzuki Motor Corporation (Hersteller), RDW (Niederlande)
Technical data
Engine
| Cylinders | 4correct |
|---|---|
| Displacement | 1,324 cm³correct |
Dimensions and weights
| Width | 1,530 mmcorrect |
|---|---|
| Wheelbase | 2,030 mmcorrect |
| Unladen weight | 1,200 kgcorrect |
| Gross vehicle weight | 1,340 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the Suzuki SAMURAI VAN weigh?
The unladen weight is 1,200 kg.
What is the gross vehicle weight of the Suzuki SAMURAI VAN?
1,340 kg.
What engine does the Suzuki SAMURAI VAN have?
4 cylinders, 1,324 cm³ displacement.
When was the Suzuki SAMURAI VAN built?
Production years: 1988-1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
