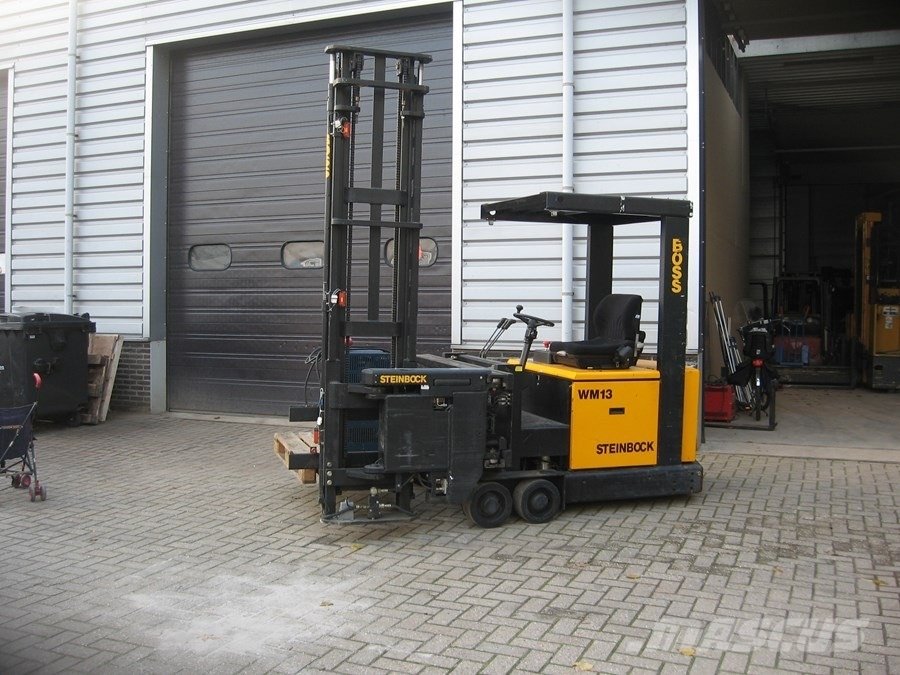

Steinbock Boss PE 20/300

Series: Steinbock Boss Forklift

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Steinbock Boss PE 20/300 belongs to the Steinbock Boss Forklift series. The engine delivers 11.6 kW. The machine is 1,120 mm wide. The unladen weight is 3,800 kg. Ground clearance is 120.1 mm. Top speed is 6.3 km/h. Lifting capacity is 2,000 kg. Lift height is 3,000 mm. The engine fitted is the Electric Motor. The Steinbock Boss Forklift series covers 124 models. Rated output within it ranges from 4 to 11.6 kW; the PE 20/300 sits at the top of that range with 11.6 kW. Its immediate neighbours are the JE 15-80 below it with 4 kW. Unladen weight within it ranges from 900 to 4,750 kg; here the PE 20/300 sits in the upper part of that range with 3,800 kg. 144 Steinbock Boss models across 9 series are on record.

Steinbock Boss Forklift – one brand name spanning decades of truck-building

Steinbock was a German material-handling manufacturer, first based in Munich and later in Moosburg. In 1983 competitor Lancer Boss took over the Moosburg plant, forming Steinbock Boss GmbH. After a financial crisis and insolvency in 1990, the brand passed to Jungheinrich, which finally discontinued production and sale of Steinbock trucks in 2002.

Read on 3 more paragraphs

The "Steinbock Boss Forklift" bucket therefore combines models from several decades and various series codes — in this database including C, H, L, CL and JE, with other eras also using PE, KE or RH/SH. A single letter logic holding across all series is not consistently documented in available sources; what is clear is that Steinbock focused almost exclusively on classic front-end counterbalance trucks, mostly diesel- and LPG-powered, with electric models playing only a minor role.

The models recorded here span capacities from 900 to 10,000 kg at own weights of 900 to 13,380 kg and lift heights of 2,770 to 6,050 mm, powered by engines of 2,000 to 6,000 cm³ displacement across 4 to 6 cylinders — a range from light warehouse trucks to heavy industrial units, seen in versions such as C 80, H 70D or L 16H.

Since the brand has not been built for over two decades, spare-parts supply is the main limiting factor when buying used: parts are usually only available from leftover stock, Jungheinrich-era remainders, or independent workshops. Given the typically high age of the machines, mast condition, cylinder seals and the drive axle deserve particularly close inspection.

Sources: Kennwerte der Modelle Steinbock Boss Forklift, - GSZ Gabelstaplerzentrum: Steinbock-Wiki (Geschichte, Serien PE/KE/JE), - Europa-Stapler: Gebrauchtangebote mit Typenbeispielen

Technical data

Engine

Engine modelElectric Motorcorrect
Power11.6 kWcorrect

Dimensions and weights

Width1,120 mmcorrect
Ground clearance120.1 mmcorrect
Unladen weight3,800 kgcorrect

Drivetrain and chassis

Tyre typepneumatic tyrescorrect
Top speed6.3 km/hcorrect
Turning radius1,880 mmcorrect

Working data

Lifting capacity2,000 kgcorrect
Lift height3,000 mmcorrect
Lowering speed30.6 m/mincorrect

Other data

Front wheels2correct
Lift speed37.2 m/mincorrect
Load centre500.1 mmcorrect
Mast tilt back8°correct
Mast tilt forward6°correct
Rear wheels2correct

Where this model stands

Power-to-weight ratio: 3.1 kW/t (12 kW / 3.8 t)

Stronger than 33% of the forklift trucks in the register — out of 316 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Steinbock Boss PE 20/300 have?

The Steinbock Boss PE 20/300 delivers 11.6 kW.

How much does the Steinbock Boss PE 20/300 weigh?

The unladen weight is 3,800 kg.

How fast does the Steinbock Boss PE 20/300 go?

Top speed is 6.3 km/h.

What is the load capacity of the Steinbock Boss PE 20/300?

Load capacity is 2,000 kg at a 500 mm load centre, lift height 3,000 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
