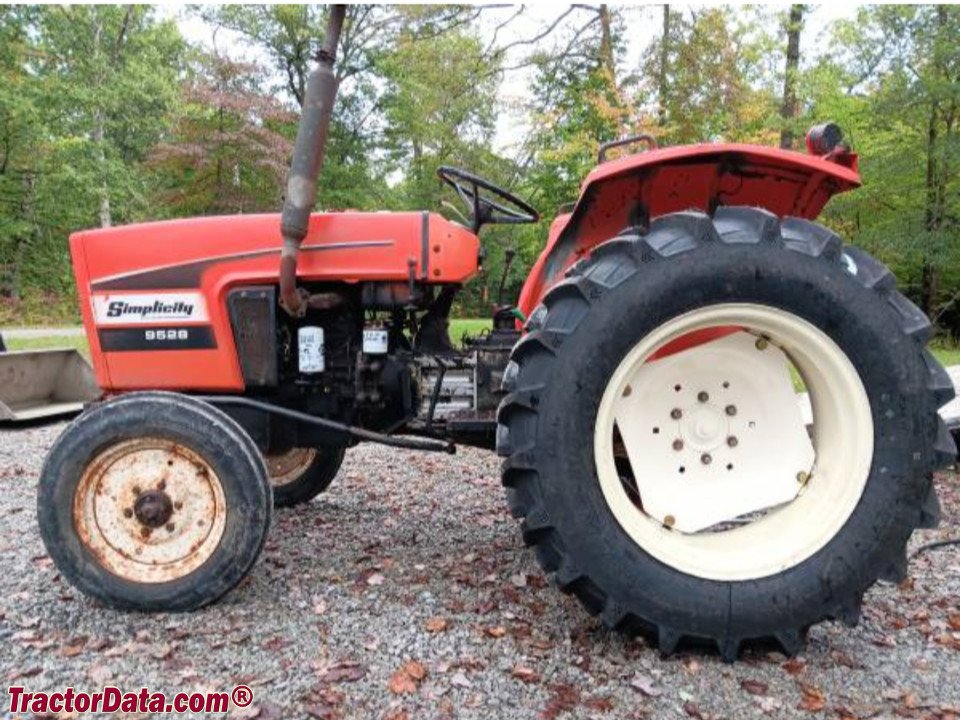

Simplicity 9528
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Simplicity 9528 is a tractor made by Simplicity. It is powered by a two-cylinder engine producing 20 kW. Rated power is reached at 2,500 rpm.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 10 to 20 kW; with 20 kW, the 9528 sits at the top. Below it ranks the 9523 with 16 kW.
Technical data
Engine
| Engine make | Toyoshacorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 26 hp (20 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 90.1 cu incorrect |
| Bore | 3.82 in (97 mm)correct |
| Stroke | 3.94 in (100,1 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 100.4 in (2550,2 mm)correct |
|---|---|
| Width | 48 in (1219,2 mm)correct |
| Height | 81.9 in (2080,3 mm)correct |
| Wheelbase | 61.8 in (1569,7 mm)correct |
| Turning circle | 92 in (2336,8 mm)correct |
| Unladen weight | 2,280 lbs (1034,2 kg)correct |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4correct |
Working data
| Fuel tank capacity | 7 galcorrect |
|---|---|
| PTO speed | 540correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | Toyosha, Japancorrect |
|---|
Frequently asked questions
How much power does the Simplicity 9528 have?
The Simplicity 9528 delivers 26 hp.
What engine does the Simplicity 9528 have?
2 cylinders, Diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
