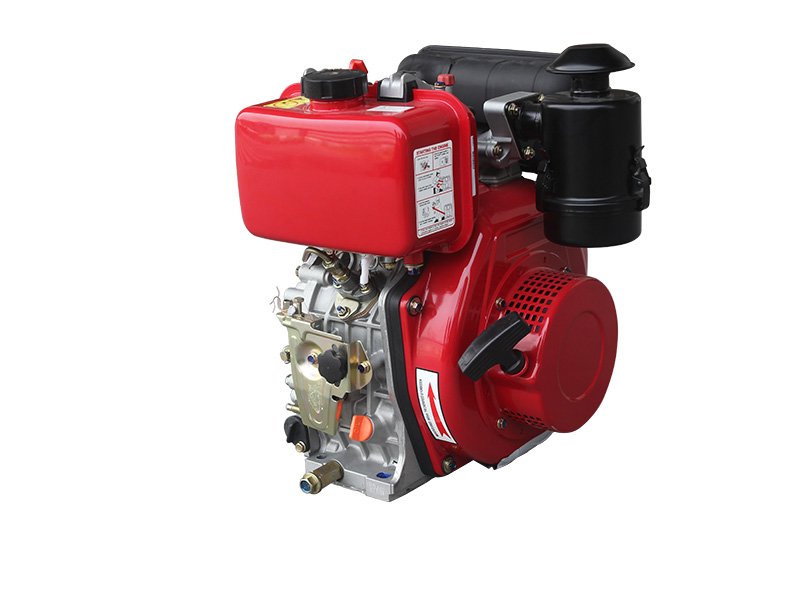

Shineray SR186FA
Built: 2012-2012 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Shineray – other nonroad diesel engines: the collective page of EPA-certified single-cylinder small diesel engines outside the named ranges, 4 to 6 kW, 3,600 rpm, model year 2012, Tier 4 Final
Shineray, headquartered in Chongqing, is a Chinese vehicle and engine group that, alongside motorcycles, also builds small air-cooled diesel engines for agricultural equipment and mobile drives. The versions listed here, SR178F, SR186F and SR186FA, carry the size-designation codes common across China's small-engine industry, in which the digit sequence denotes cylinder bore and build size. This page gathers the models outside the named ranges.
Read on 3 more paragraphs
The register lists here 3 versions with 4 to 6 kW rated output, all at 3,600 rpm, all single-cylinder with 78 to 86 mm bore and 62 to 72 mm stroke. Maximum torque ranges from 7.5 to 11.7 Nm, the model year is uniformly 2012; all three versions run direct injection at the Tier 4 (Final or Phase-in) emission stage and the under 8 kW power category.
The three versions form a closely staggered power series for portable generator sets, water pumps and simple agricultural machinery; the small differences in bore and stroke between the models allow fine steps in rated output within the same base engine.
On a used purchase, the oil level counts, along with the cooling fins on the air-cooled design, the condition of the injector and the tightness of the cylinder head gasket; since all three versions share the same model year, it is also worth checking the general condition and hours of use.
Sources: Kennwerte der Modelle Shineray (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine code | SR186FAcorrect |
|---|---|
| Engine family | CCSPL.418AAAcorrect |
| Engine families | CCSPL.418AAAcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 6 kWcorrect |
| Power band | kW<8correct |
| Rated speed | 3,600 rpmcorrect |
| Maximum torque | 11.7 N·mcorrect |
| Speed at max. torque | 3,600 rpmcorrect |
| Cylinders | 1correct |
| Cylinder layout | in linecorrect |
| Bore | 86 mmcorrect |
| Stroke | 72 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | SR186FAcorrect |
|---|---|
| Built from | 2012correct |
| Built to | 2012correct |
| Model year from | 2012correct |
| Model year to | 2012correct |
Frequently asked questions
How much power does the Shineray SR186FA have?
The Shineray SR186FA delivers 6 kW.
When was the Shineray SR186FA built?
Production years: 2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
