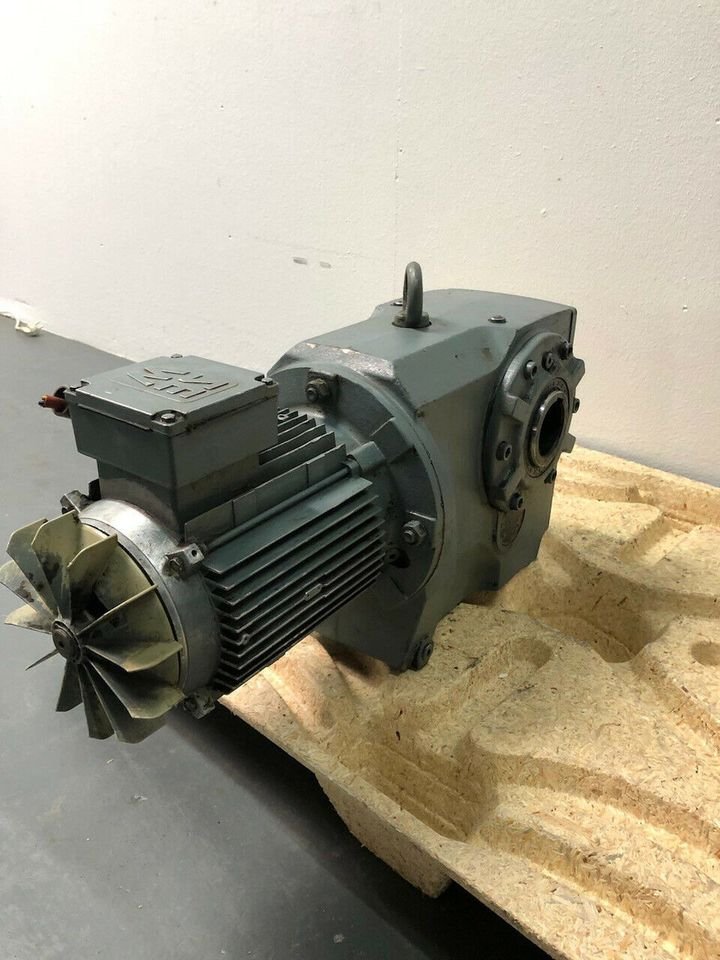

SEW-EURODRIVE DRN100L6

Series: Other models

Source: https://www.kleinanzeigen.de/s-anzeige/elektromotor-motor-se

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SEW-EURODRIVE DRN100L6 is a three-phase induction motor built by SEW-EURODRIVE. The rated output is 1.5 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 100. The efficiency is 83.3 per cent at full load, 83.5 per cent at 75 per cent load and 81.5 per cent at half load. Stated countries of manufacture: the USA, New Zealand, France, Germany, China, Brazil and Australia. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the SEW-EURODRIVE range ranges from 0.75 to 160 kW; the DRN100L6 sits at the bottom of that range with 1.5 kW. Its immediate neighbours are the EDRN90S4 below it with 1.1 kW and the DRE100L4 above it with 2.2 kW. 212 SEW-EURODRIVE models across 2 series are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output1.5 kWcorrect

Electrical data

Number of poles6correct
Protection classIP54, IP55, IP56, IP65, IP66correct
Frame size100correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B34, B35, V1, V3, V5, V6, V8, V9correct
Efficiency at full load83.3 %correct
Efficiency at 75 % load83.5 %correct
Efficiency at half load81.5 %correct

Origin and approval

Country of manufactureUnited States of America, New Zealand, France, Germany, China, Brazil, Australiacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the SEW-EURODRIVE DRN100L6 have?

The SEW-EURODRIVE DRN100L6 delivers 1.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
