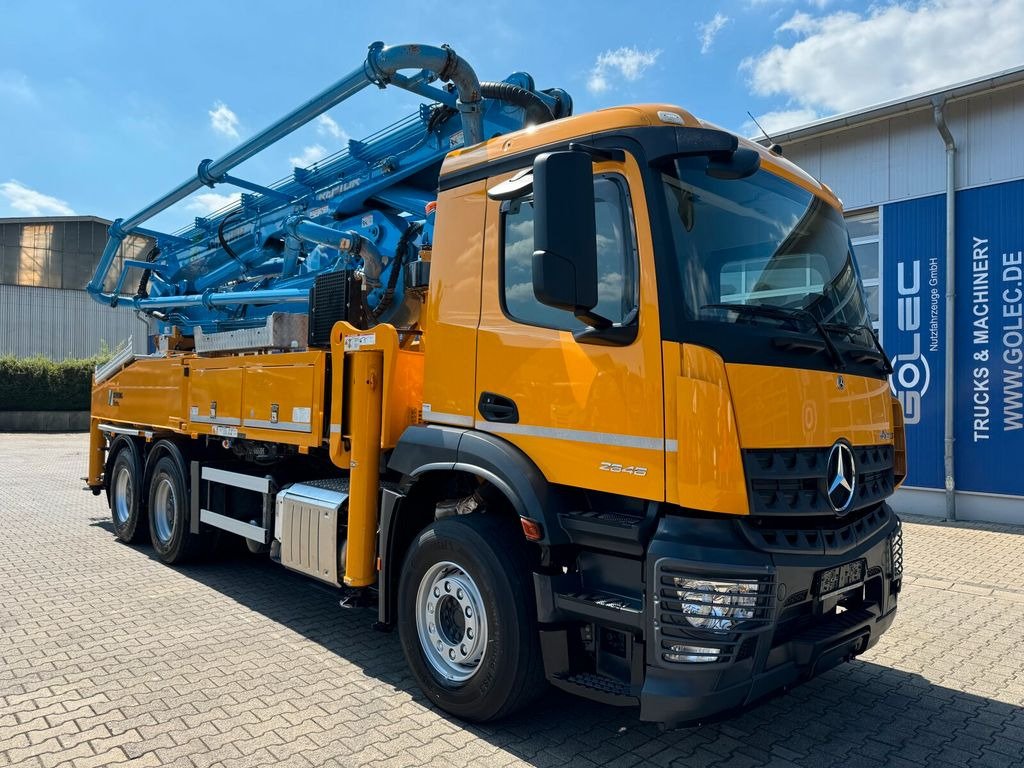

Schwing S - LINE DAIMLER
Built: 2023-2025 · Series: Other models
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schwing – other models: concrete pumps from Herne mounted on heavy truck chassis, S-Line and X-Line series, 290 to 335 kW, 26.7 to 35 tonnes gross vehicle weight
Schwing, based in Herne in the Ruhr region, is a long-established manufacturer of concrete pumps and has built truck-mounted concrete pumps for building and civil engineering work for decades. This collective page lists the models outside the named ranges, grouped into the two type series S-Line and X-Line, which differ in boom and pump class. The superstructure and placing boom come from Schwing, while the engine, cab and chassis are supplied by established truck manufacturers.
Read on 3 more paragraphs
The register lists five variants here with 290 to 335 kW from six-cylinder engines of 10,677 cm³ displacement, kerb weights from 25,400 to 33,545 kg, gross vehicle weights from 26,707 to 35,000 kg, lengths from 10,130 to 11,860 mm and widths from 2,540 to 2,550 mm.
Concrete pumps of this size work on large construction sites where concrete has to be delivered over long distances and to great heights; Schwing competes here mainly with Putzmeister and Cifa for market share across Europe and beyond. The considerable length and high gross weight result from the extended placing boom and the outriggers needed to support it.
When buying used, the pump's operating hours, the condition of the boom, pipework and wear plates, and the tightness of the hydraulic system matter most; on the chassis, brakes, axles and the history of the outrigger cylinders are the key points. Parts for pump and boom are supplied by Schwing itself, while the chassis is serviced through the regular truck dealer network.
Technical data
Engine
| Power | 335 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 10,677 cm³correct |
Dimensions and weights
| Length | 11,860 mmcorrect |
|---|---|
| Width | 2,540 mmcorrect |
| Wheelbase | 7,100 mmcorrect |
| Unladen weight | 33,545 kgcorrect |
| Gross vehicle weight | 34,045 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 90 km/hcorrect |
Where this model stands
Power-to-weight ratio: 10 kW/t (335 kW / 33.5 t)
Stronger than 68% of the trucks over 7.5 t in the register — out of 25,424 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schwing S - LINE DAIMLER have?
The Schwing S - LINE DAIMLER delivers 335 kW.
How much does the Schwing S - LINE DAIMLER weigh?
The unladen weight is 33,545 kg.
What is the gross vehicle weight of the Schwing S - LINE DAIMLER?
34,045 kg.
What engine does the Schwing S - LINE DAIMLER have?
6 cylinders, 10,677 cm³ displacement.
How fast does the Schwing S - LINE DAIMLER go?
Top speed is 90 km/h.
What are the dimensions of the Schwing S - LINE DAIMLER?
11,860 mm × 2,540 mm.
When was the Schwing S - LINE DAIMLER built?
Production years: 2023-2025.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
