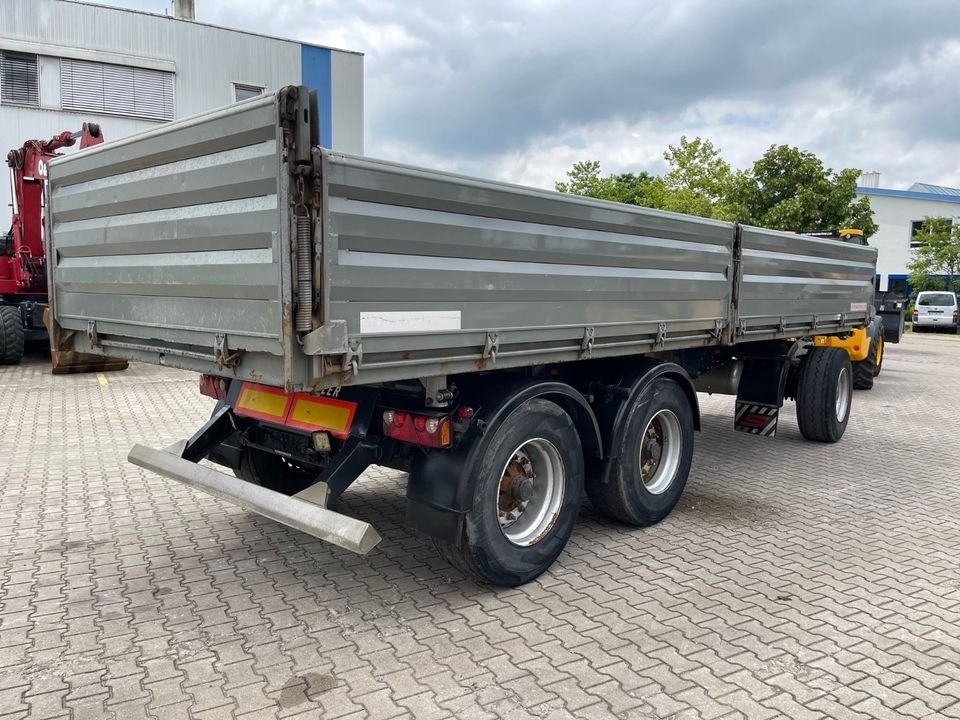

Schwarzmueller SPA3/EC
Built: 2006-2006 · Series: Other models
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schwarzmüller – further models: Austrian collector page of semi-trailers and trailers outside the main series, from tippers to standard semi-trailers, 2.73 to 15.14 t kerb weight, up to 54 t gross weight
Schwarzmüller is an Austrian commercial-vehicle manufacturer based in Freistadt, tracing back to a blacksmith's workshop founded in 1871 and now one of Europe's larger suppliers of semi-trailers, trailers and bodies. This page gathers Schwarzmüller models outside the named series; the letter codes in the type names (such as the K, P, S or T series) correspond in the maker's programme to different body types – tipper, flatbed, semi-trailer or tanker – sometimes supplemented by suffixes such as "2/E" denoting axle count and equipment level.
Read on 3 more paragraphs
The register lists 57 versions with kerb weights from 2,730 to 15,140 kg and a gross vehicle weight from 16,000 to 54,000 kg. Lengths range from 7.00 to 14.04 m and widths from 2.45 to 3.00 m – a spread running from medium-duty trailers to large-volume semi-trailers.
Schwarzmüller supplies haulage, construction and agricultural firms across Central and Eastern Europe, competing with Krone, Kögel, Schmitz Cargobull and other European trailer builders; tipping and building-materials semi-trailers have traditionally been a strength of the company.
When buying used, check the frame and chassis (corrosion, cracked cross-members), axles, brakes and air suspension, and on tippers also the hydraulic rams and side panels; spares are readily available through Schwarzmüller's dense European service network.
Sources: Kennwerte der Modelle Schwarzmüller (weitere Modelle), Schwarzmüller (Hersteller)
Technical data
Dimensions and weights
| Length | 13,730 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 9,130 mmcorrect |
| Unladen weight | 7,160 kgcorrect |
| Gross vehicle weight | 38,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Schwarzmueller SPA3/EC weigh?
The unladen weight is 7,160 kg.
What is the gross vehicle weight of the Schwarzmueller SPA3/EC?
38,000 kg.
Up to what speed is the Schwarzmueller SPA3/EC approved?
Approved up to 100 km/h.
What are the dimensions of the Schwarzmueller SPA3/EC?
13,730 mm × 2,550 mm.
When was the Schwarzmueller SPA3/EC built?
Production years: 2006.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
