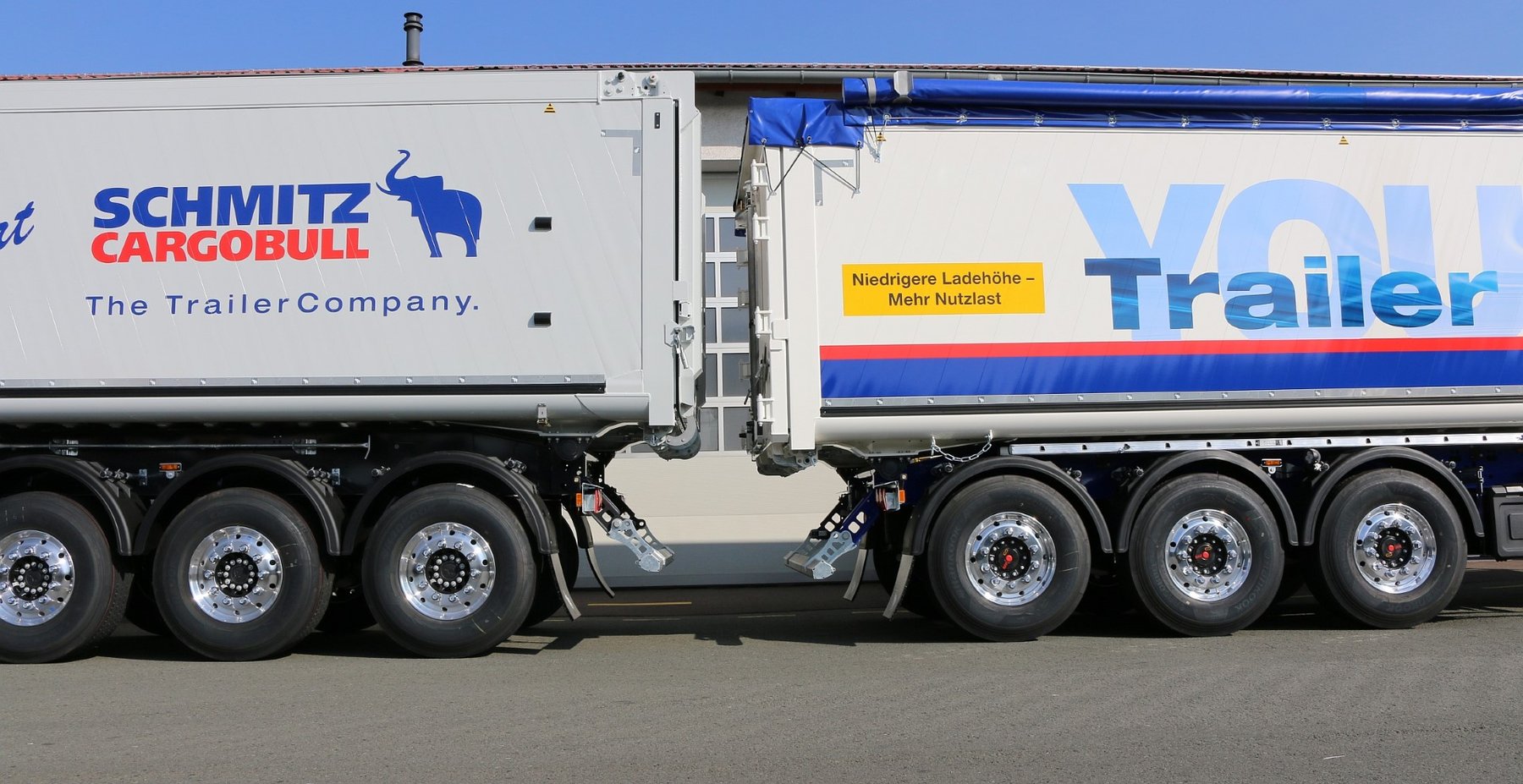

Schmitz Cargobull S01
Built: 1999-2012 · Series: S01
More machines from model year 1999
Schmitz Cargobull S01 – base semi-trailer type from Horstmar/Altenberge: unladen weight 6,600 to 8,200 kg, gross weight 39,000 to 42,000 kg, length 13,800 to 13,920 mm, uniform width 2,550 mm
Schmitz Cargobull lists a base semi-trailer type from its Horstmar/Altenberge production under the designation S01 in the register. This model line appears with various suffixes such as S01 UOPLYST, S01, I and S01/DB, II across different registration entries, which record the same basic build in slightly different spellings.
Read on 3 more paragraphs
The register lists here 6 versions with unladen weights from 6,600 to 8,200 kg, gross weights from 39,000 to 42,000 kg, lengths from 13,800 to 13,920 mm and a uniform width of 2,550 mm.
With lengths close to 14 metres and gross weights up to 42 tonnes, the S01 type is among the heavy standard semi-trailers of European long-haul transport, used on scheduled routes between major haulage hubs and distribution centres. As a widely used base type, the S01 often forms the backbone of larger fleets running around the clock behind different tractor units.
When buying used, check the condition of the chassis and side rails, the axles, braking system and air suspension, and the kingpin and landing legs. On curtainsider versions, also check the operation and wear of the sliding curtain, roof bows and lashing rails, since these parts see the heaviest use in daily loading and unloading; the service history also indicates how hard the trailer has worked over its operating life.
Sources: Kennwerte der Modelle Schmitz Cargobull S01, Schmitz Cargobull (Hersteller)
Technical data
Dimensions and weights
| Length | 13,920 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 9,150 mmcorrect |
| Unladen weight | 8,200 kgcorrect |
| Gross vehicle weight | 42,000 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Schmitz Cargobull S01 weigh?
The unladen weight is 8,200 kg.
What is the gross vehicle weight of the Schmitz Cargobull S01?
42,000 kg.
Up to what speed is the Schmitz Cargobull S01 approved?
Approved up to 100 km/h.
What are the dimensions of the Schmitz Cargobull S01?
13,920 mm × 2,550 mm.
When was the Schmitz Cargobull S01 built?
Production years: 1999-2012.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
