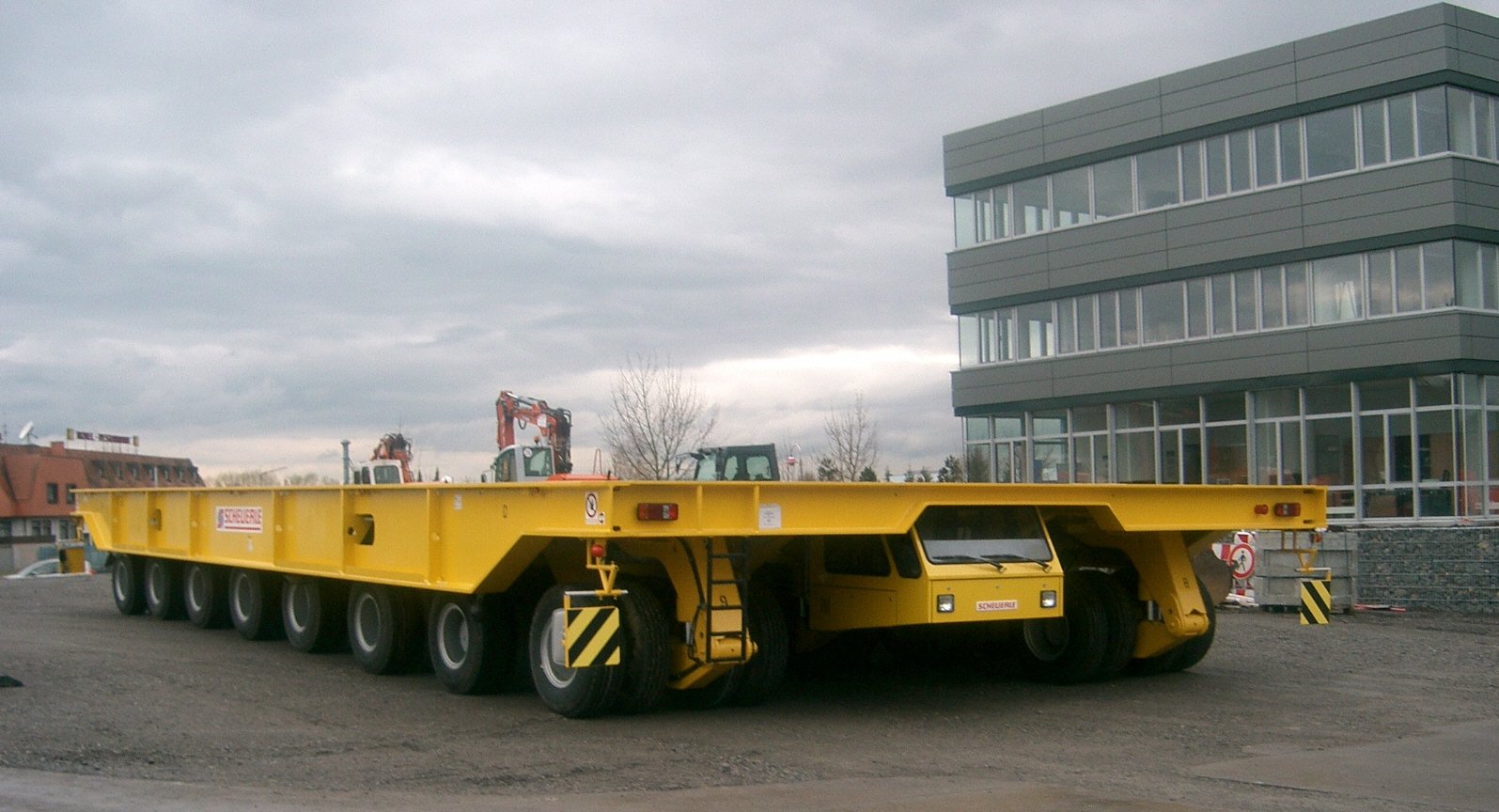

Scheuerle M1PE5M
Built: 2002-2002 · Series: Other models
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Scheuerle – other models: the collective page of heavy trailers and transport modules from Pfedelbach outside the named ranges, gross weight up to 400,000 kg, lengths up to 51,000 mm
This page gathers heavy trailers and transport modules of the Scheuerle brand that the register could not assign to a named range. Scheuerle is based in Pfedelbach in Baden-Württemberg and belongs to the TII Group (alongside Nicolas and Kamag); the brand specialises in modular heavy vehicles – self-propelled modular transporters (SPMT) and hydraulic platform or low-bed trailers that can be coupled together freely in axle-line modules. Type codes such as L2PE, L6SUE or K 100/4 denote the module series and the number of axle lines or the load per axle.
Read on 3 more paragraphs
The register lists here 119 versions with unladen weights from 3,120 to 54,920 kg, gross weights up to 400,000 kg, lengths up to 51,000 mm and widths up to 3,000 mm.
With gross weights up to 400 tonnes in coupled module combinations, Scheuerle is one of the specialists in heavy-load transport – transformers, bridge sections, wind-turbine components or entire factory installations – competing here with Nicolas, Kamag, Goldhofer and Faymonville.
On used transport modules, what counts is the condition of the hydraulics (steering and lifting rams, tightness), the operation of the electronic axle steering, the condition of the axles and tyres (load rating, age), complete inspection and maintenance records and, on combinations of several modules, the mutual compatibility of the individual assemblies and software versions.
Technical data
Dimensions and weights
| Length | 12,070 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Wheelbase | 10,220 mmcorrect |
| Unladen weight | 20,100 kgcorrect |
| Gross vehicle weight | 98,580 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Scheuerle M1PE5M weigh?
The unladen weight is 20,100 kg.
What is the gross vehicle weight of the Scheuerle M1PE5M?
98,580 kg.
Up to what speed is the Scheuerle M1PE5M approved?
Approved up to 100 km/h.
What are the dimensions of the Scheuerle M1PE5M?
12,070 mm × 2,750 mm.
When was the Scheuerle M1PE5M built?
Production years: 2002.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
