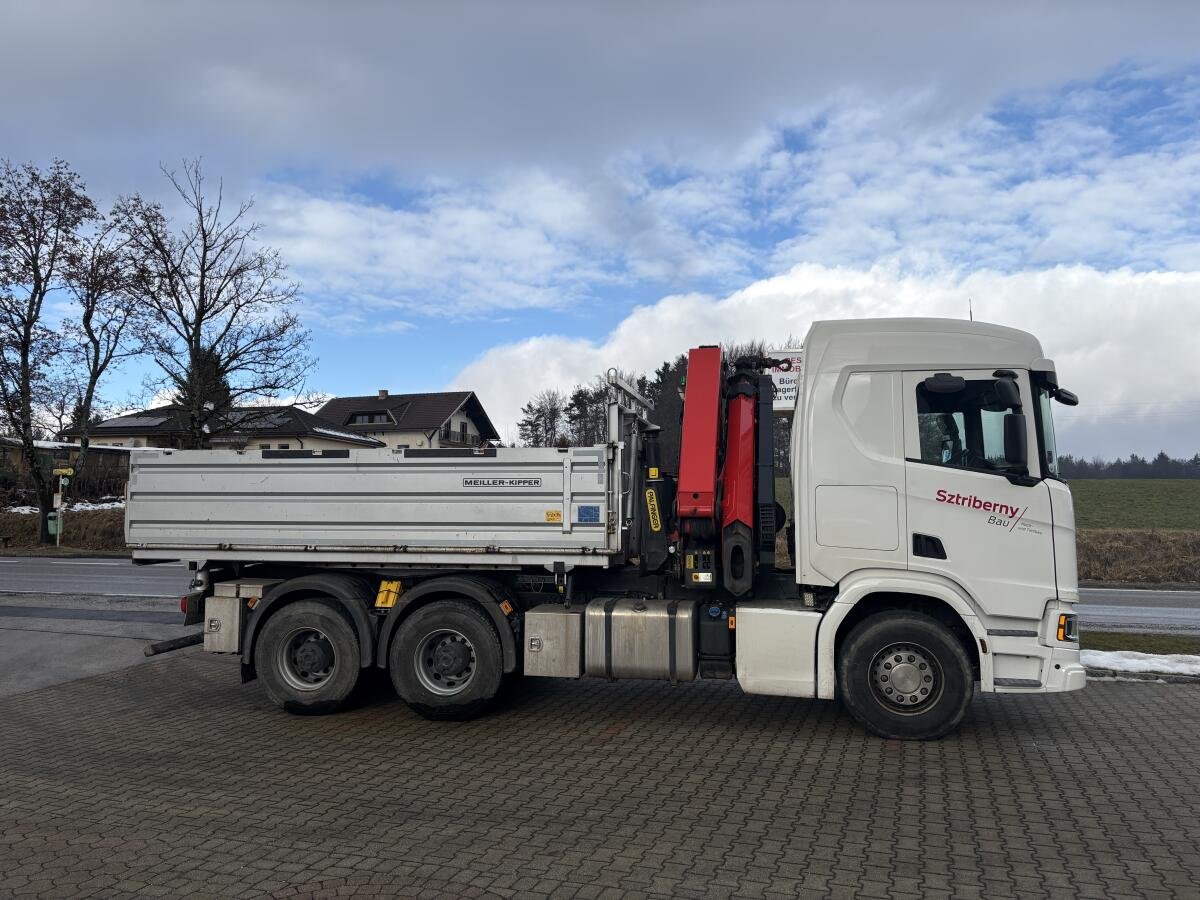

Scania 500 LB10X4*6MSA

Built: 2012-2012 · Series: R

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 500 LB10X4*6MSA, Scania offers a model from the R series. Production: 2012. The engine delivers 368 kW, has 8 cylinders, with a displacement of 15,607 cm³. The machine is 13,410 mm long and 2,790 mm wide. The unladen weight is 16,160 kg. The gross vehicle weight is 46,000 kg. The gearbox offers 12 gears. The R series covers 1740 models. Rated output within it ranges from 207 to 566 kW; the 500 LB10X4*6MSA sits in the middle of that range with 368 kW. Its immediate neighbours are the 500 CB8X2/4HNA below it with 367.5 kW and the 500 LB 6X2 HNA above it with 369 kW. 7586 Scania models across 18 series are on record. The model is listed under Trucks over 7.5 t. 9 verified figures from 1 source are on file.

Scania R — the letter is the cab, not the engine

Scania's R says nothing about engine or weight. It names the cab. Scania grades its cabs by height and entry: P is the low one, G the medium, R the tall long-haul cab, S the tallest with a flat floor and no engine tunnel. Anyone looking for an R is therefore looking first for a place to live in — long haul, overnight stays, standing room.

Read on 4 more paragraphs

The number after it is engine output in horsepower. An R 450 has 450 hp, an R 500 has 500. Read together, the designation is cab plus power — unlike MAN or Mercedes, where the first number means gross vehicle weight. Anyone comparing offers across brands should know this difference, or they will be comparing weight against power.

A suffix such as A4x2NA or B6x4HZ often follows. The first letter gives the body type (A = tractor unit, B = platform chassis), the digits the axle configuration, the final letters the suspension — N for air, H for leaf springs on the rear axle. That suffix often says more about a used vehicle's suitability than the horsepower figure does.

Important when searching: two vehicle generations share the letter. The R-series of 2004 was followed in 2016 by the next generation, developed internally as the New Truck Generation. Both are simply called R in listings. Two vehicles with identical designations can therefore be twelve years of development apart — what decides is first registration and emissions standard, not the letter.

Further back, Scania trucks carried plain numbers: 113, 143, 164. There the first digit stood for displacement in litres and the last for the series, so 113 meant eleven litres from the 3-series. That reading no longer applies to the R — but it explains why both systems appear side by side in used listings.

Sources: Scania Group, Wikipedia: Scania 3-series, Fleet News

Technical data

Engine

Power368 kWcorrect
Cylinders8correct
Displacement15,607 cm³correct

Dimensions and weights

Length13,410 mmcorrect
Width2,790 mmcorrect
Unladen weight16,160 kgcorrect
Gross vehicle weight46,000 kgcorrect

Drivetrain and chassis

Gears12correct

Where this model stands

Power-to-weight ratio: 22.8 kW/t (368 kW / 16.2 t)

Stronger than 81% of the trucks over 7.5 t in the register — out of 27,776 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Scania 500 LB10X4*6MSA have?

The Scania 500 LB10X4*6MSA delivers 368 kW.

How much does the Scania 500 LB10X4*6MSA weigh?

The unladen weight is 16,160 kg.

What is the gross vehicle weight of the Scania 500 LB10X4*6MSA?

46,000 kg.

What engine does the Scania 500 LB10X4*6MSA have?

8 cylinders, 15,607 cm³ displacement.

What are the dimensions of the Scania 500 LB10X4*6MSA?

13,410 mm × 2,790 mm.

When was the Scania 500 LB10X4*6MSA built?

Production years: 2012.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
