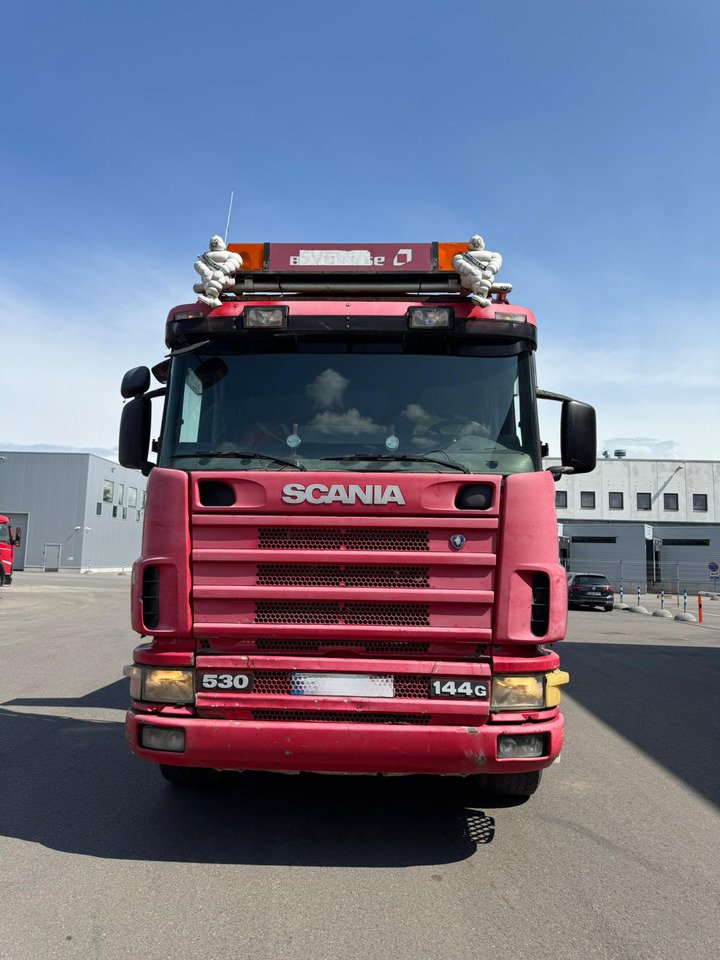

Scania 144 GB 8X4 NZ

Built: 1998-1998 · Series: R

More machines from model year 1998

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Scania 144 GB 8X4 NZ is a model in the R series. Production: 1998. The engine has 8 cylinders, with a displacement of 14,190 cm³. The machine is 10,120 mm long and 2,550 mm wide. The unladen weight is 32,450 kg. The wheelbase measures 6,850 mm. The gross vehicle weight is 37,000 kg. The machine runs on 8 wheels. The R series covers 1736 models. Unladen weight within it ranges from 6,580 to 76,711 kg; the 144 GB 8X4 NZ sits in the lower part of that range with 32,450 kg. Its immediate neighbours are the 143 HL-8X2/1520+3880+1320 below it with 31,850 kg and the 620 B 10X4*6 above it with 32,575 kg. Gross vehicle weight within it ranges from 10,000 to 76,961 kg; here the 144 GB 8X4 NZ sits in the middle of that range with 37,000 kg. 11893 Scania models across 91 series are on record.

Scania R — the letter is the cab, not the engine

Scania's R says nothing about engine or weight. It names the cab. Scania grades its cabs by height and entry: P is the low one, G the medium, R the tall long-haul cab, S the tallest with a flat floor and no engine tunnel. Anyone looking for an R is therefore looking first for a place to live in — long haul, overnight stays, standing room.

Read on 4 more paragraphs

The number after it is engine output in horsepower. An R 450 has 450 hp, an R 500 has 500. Read together, the designation is cab plus power — unlike MAN or Mercedes, where the first number means gross vehicle weight. Anyone comparing offers across brands should know this difference, or they will be comparing weight against power.

A suffix such as A4x2NA or B6x4HZ often follows. The first letter gives the body type (A = tractor unit, B = platform chassis), the digits the axle configuration, the final letters the suspension — N for air, H for leaf springs on the rear axle. That suffix often says more about a used vehicle's suitability than the horsepower figure does.

Important when searching: two vehicle generations share the letter. The R-series of 2004 was followed in 2016 by the next generation, developed internally as the New Truck Generation. Both are simply called R in listings. Two vehicles with identical designations can therefore be twelve years of development apart — what decides is first registration and emissions standard, not the letter.

Further back, Scania trucks carried plain numbers: 113, 143, 164. There the first digit stood for displacement in litres and the last for the series, so 113 meant eleven litres from the 3-series. That reading no longer applies to the R — but it explains why both systems appear side by side in used listings.

Sources: Scania Group, Scania 3-series (Wikipedia), Fleet News

Technical data

Engine

Cylinders8correct
Displacement14,190 cm³correct

Dimensions and weights

Length10,120 mmcorrect
Width2,550 mmcorrect
Wheelbase6,850 mmcorrect
Unladen weight32,450 kgcorrect
Gross vehicle weight37,000 kgcorrect

Drivetrain and chassis

Wheels8correct

Frequently asked questions

How much does the Scania 144 GB 8X4 NZ weigh?

The unladen weight is 32,450 kg.

What is the gross vehicle weight of the Scania 144 GB 8X4 NZ?

37,000 kg.

What engine does the Scania 144 GB 8X4 NZ have?

8 cylinders, 14,190 cm³ displacement.

What are the dimensions of the Scania 144 GB 8X4 NZ?

10,120 mm × 2,550 mm.

When was the Scania 144 GB 8X4 NZ built?

Production years: 1998.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
