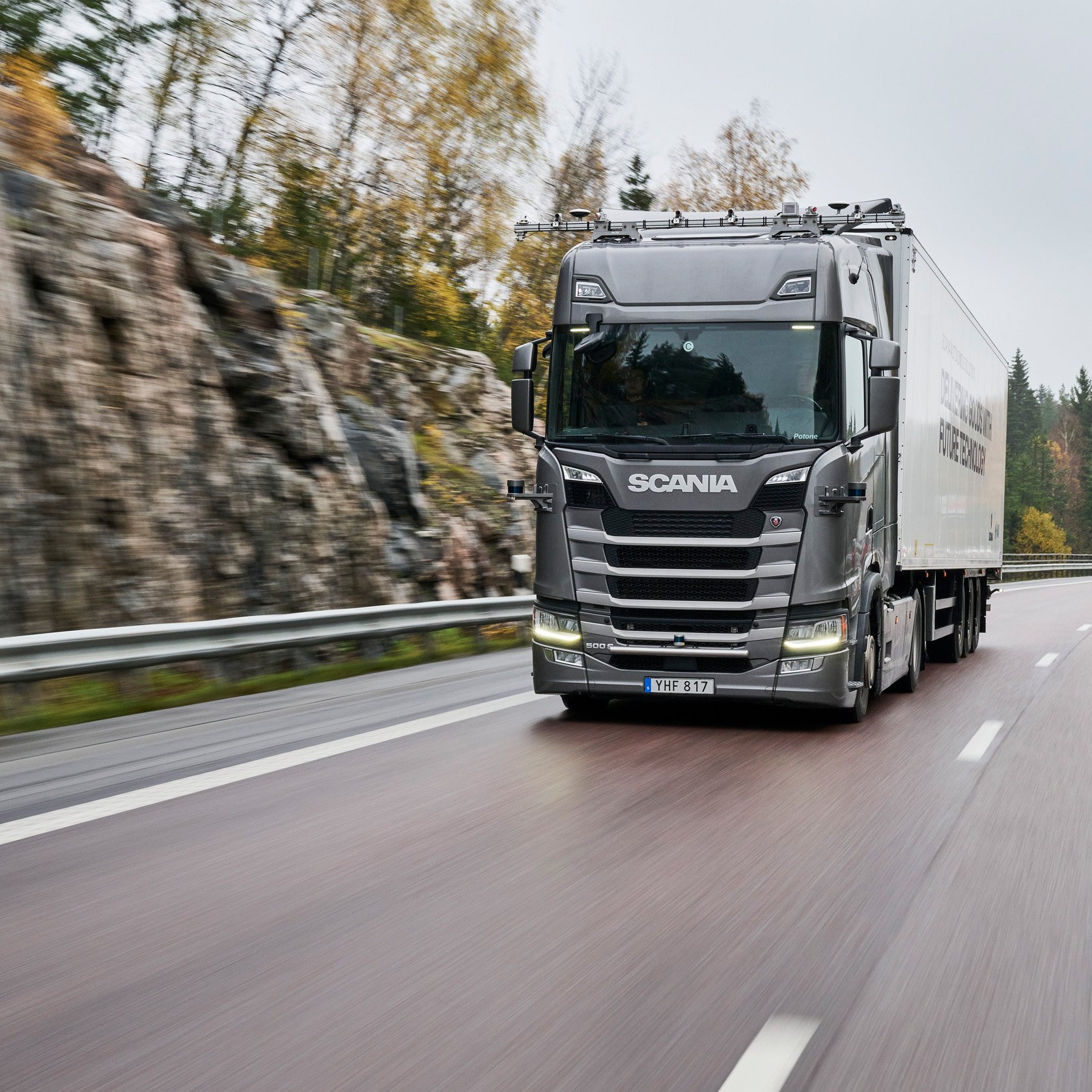

Scania CV AB
Built: 2009-2014 · Series: CV
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Scania CV – register collective name of Scania CV AB: type codes R143, R144, R164 and R500, six- and eight-cylinder engines of 14.2 to 15.6 litres, gross weights from 18,000 to 28,000 kg
Scania CV refers to Scania CV AB, the manufacturer's vehicle company based in Södertälje, whose name appears in this section of the register as a collective heading ahead of the actual type codes R143, R144, R164 and R500 of various series. R denotes the long-haul cab in each case, the following digit group the engine family or power class, and the axle formula 4X2 or 6X2 the number of axles and driven axles; LA and MNA in the chassis codes mark suspension and body variants of the respective chassis.
Read on 3 more paragraphs
The register lists 6 versions from six- and eight-cylinder engines of 14,190 to 15,607 cc. Kerb weights range from 7,375 to 13,430 kg, gross vehicle weights from 18,000 to 28,000 kg. Lengths run from 5,840 to 9,250 mm, widths from 2,520 to 2,550 mm.
The chassis gathered here cover the upper power segment of Scania's long-haul programmes and, depending on model year, competed with the Volvo F16/FH16 and the Mercedes-Benz Actros with a V8 engine; tractor units and three-axle chassis for body fitment sit side by side in the register.
On a used example, checks should cover corrosion on the frame outriggers and spring brackets, the condition of the air suspension and fifth-wheel coupling on tractor units, and sealing of the charge-air cooler and turbocharger on the big six- or eight-cylinder engine; spare parts are widely available through Scania's service network.
Sources: Kennwerte der Modelle Scania CV, Scania (Hersteller)
Technical data
Engine
| Cylinders | 8correct |
|---|---|
| Displacement | 15,607 cm³correct |
Dimensions and weights
| Length | 9,250 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,420 mmcorrect |
| Unladen weight | 13,430 kgcorrect |
| Gross vehicle weight | 28,000 kgcorrect |
Drivetrain and chassis
| Wheels | 10correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the Scania CV AB weigh?
The unladen weight is 13,430 kg.
What is the gross vehicle weight of the Scania CV AB?
28,000 kg.
What engine does the Scania CV AB have?
8 cylinders, 15,607 cm³ displacement.
How fast does the Scania CV AB go?
Top speed is 90 km/h.
What are the dimensions of the Scania CV AB?
9,250 mm × 2,550 mm.
When was the Scania CV AB built?
Production years: 2009-2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
