SAME Iron 160 DCR 4V
Built: 2010-2010 · Series: Other models
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

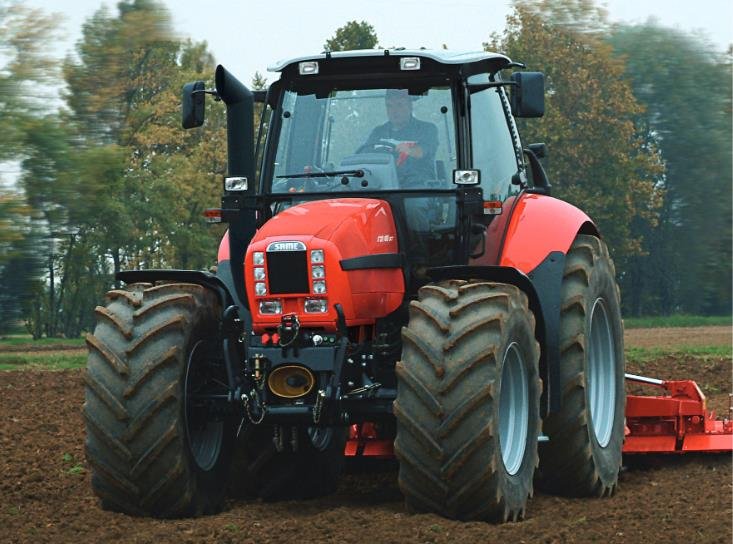

Built in 2010, the SAME (sdf) Iron 160 DCR 4V is a tractor from SAME (sdf). From 6.1 litres the engine produces 120 kW.
Dimensions are 4.77 m by 2.55 m. Unladen weight is 6,515 kg.
Within the range, rated power spans from 40 to 145 kW; with 120 kW, the Iron 160 DCR 4V sits in the upper third. Directly alongside are the Silver 130 with 97 kW below and the RUBIN 180-S40S806WVT-4X4/285 with 133 kW above.
SAME – other models: the collective page of Italian tractors outside the named ranges, from Ariete and Delfino to the narrow Frutteto range, DT marking four-wheel drive, 18 to 179 kW
This page gathers the SAME tractors the register could not assign to a named range – from standard tractors with animal names such as Delfino, Falcon, Buffalo and Condor to the narrow Frutteto range for fruit and wine growing. SAME (Società Anonima Motori Endotermici) was founded in 1942 in Treviglio near Bergamo, after Francesco Cassani had already built an early diesel four-wheel-drive tractor there in 1927; Lamborghini Trattori joined the group in 1972, Hürlimann in 1977, and since the 1995 merger with Deutz-Fahr the group has traded as SDF, still headquartered in Treviglio. The DT suffix on Italian tractors traditionally stands for Doppia Trazione, four-wheel drive, and appears on numerous types on this page such as the Buffalo DT and Condor-55 (DT). The engines historically came from the company's own production in Treviglio, and after the Deutz-Fahr merger, per the register, also from Deutz.
Read on 3 more paragraphs
The register lists here 134 versions with 18.4 to 179 kW or 25 to 244 hp from two- to six-cylinders of 1,118 to 7,146 cm³, unladen weights from 1,005 to 7,500 kg and gross weights from 4,100 to 12,000 kg.
SAME is one of the traditional Italian tractor brands and is strongly represented in Italy itself, France and Eastern Europe; the narrow Frutteto range is a benchmark in fruit and wine growing, where it competes with the group siblings Lamborghini and Hürlimann as well as Landini and Fendt for narrow row spacings.
On used tractors, engine condition and rust on sheet metal and cab count, clutch and gearbox, front axle and transfer case on the DT four-wheel-drive types, and on the Frutteto range the condition of cab guards and hydraulics; parts run through the SDF network of SAME Deutz-Fahr.
Technical data
Engine
| Power | 120 kWcorrect |
|---|---|
| Displacement | 6,057 cm³correct |
Dimensions and weights
| Length | 4,770 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 6,515 kgcorrect |
| Gross vehicle weight | 10,300 kgcorrect |
Where this model stands
Power-to-weight ratio: 18.4 kW/t (120 kW / 6.5 t)
Power class: Large (100–180 hp)
Stronger than 86% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Iron 160 DCR 4V have?
The SAME Iron 160 DCR 4V delivers 120 kW.
How much does the SAME Iron 160 DCR 4V weigh?
The unladen weight is 6,515 kg.
What is the gross vehicle weight of the SAME Iron 160 DCR 4V?
10,300 kg.
What engine does the SAME Iron 160 DCR 4V have?
6,057 cm³ displacement.
What are the dimensions of the SAME Iron 160 DCR 4V?
4,770 mm × 2,550 mm.
When was the SAME Iron 160 DCR 4V built?
Production years: 2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
