Rxm Ef Series T11D2RXMEF

Series: Other models

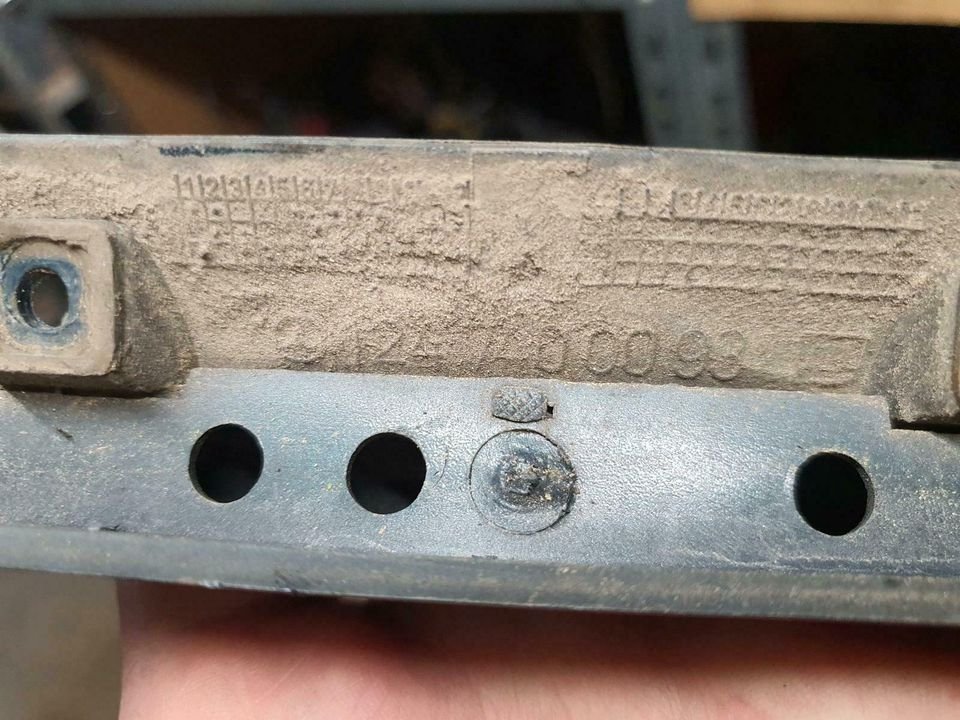

The photo shows the T5.5D4RXMEF from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/w124-kombi-griffleist

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Rxm Ef Series lists the T11D2RXMEF as a three-phase induction motor. The rated output is 11 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 160 M in foot-mounted form. The protection class is IP56. The efficiency is 91 per cent at full load, 90.9 per cent at 75 per cent load and 89.6 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B35, B5, V1 and V2. The motor is built in China. The figures come from the Australian MEPS register under the GEMS Determination 2012; measured to AS/NZS 1359.102.3:2000. Rated output across the Rxm Ef Series range ranges from 0.75 to 160 kW; the T11D2RXMEF sits at the bottom of that range with 11 kW. Its immediate neighbours are the T7.5D8RXMEF below it with 7.5 kW and the T15D2RXMEF above it with 15 kW. 63 Rxm Ef Series models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output11 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP56correct
Frame size160 M (foot)correct
Mounting (IEC 60034-7)B3, B35, B5, V1, V2correct
Efficiency at full load91 %correct
Efficiency at 75 % load90.9 %correct
Efficiency at half load89.6 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Rxm Ef Series T11D2RXMEF have?

The Rxm Ef Series T11D2RXMEF delivers 11 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
