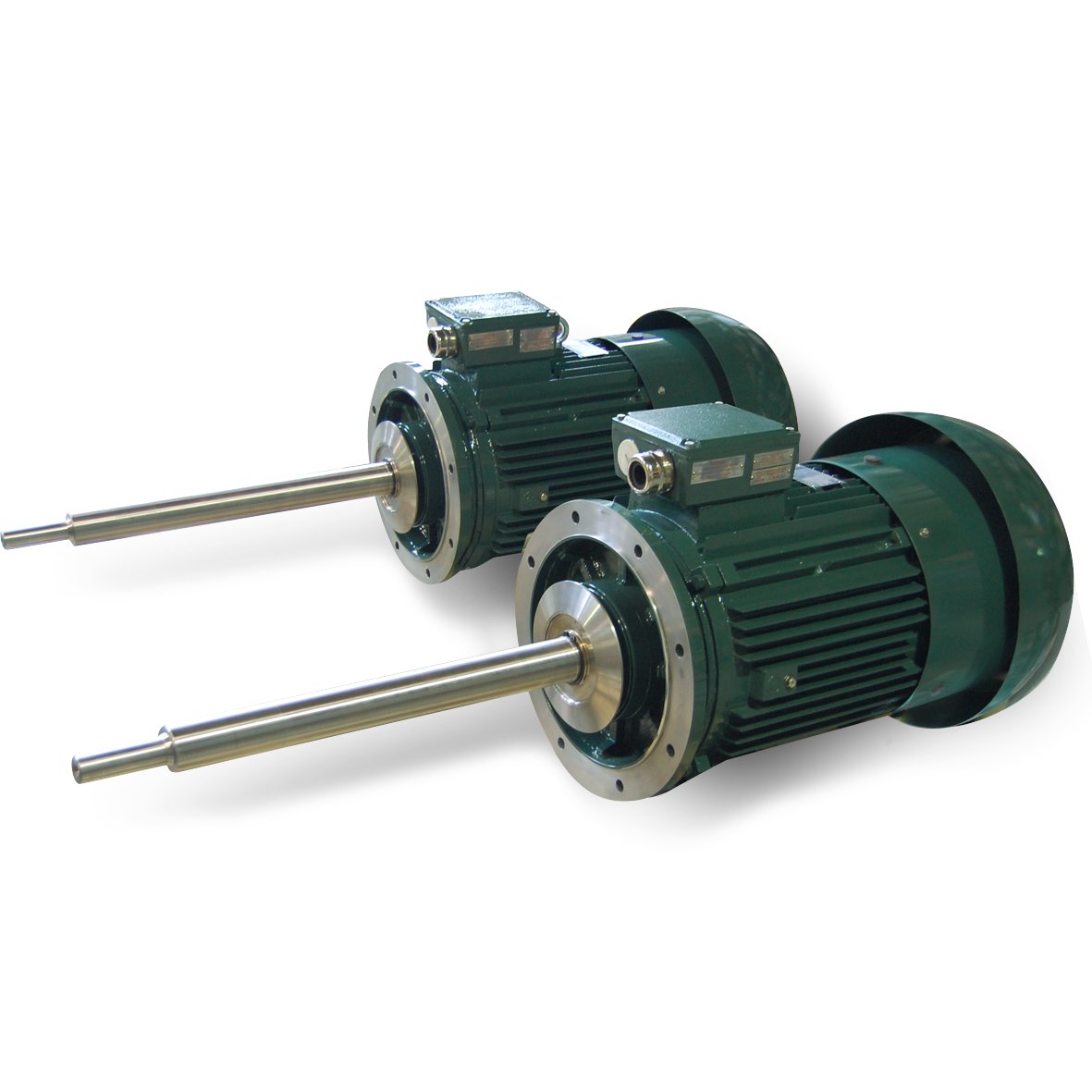

Rototech Hu80B-4

Series: Other models

Source: https://rototech.com.au/products/special-applications/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Rototech lists the Hu80B-4 as a three-phase induction motor. The rated output is 0.75 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 80 M in foot-mounted form. The protection class is IP55. The efficiency is 75.2 per cent at full load, 75.1 per cent at 75 per cent load and 72.1 per cent at half load. The motor weighs 11.5 kg. At full load it delivers 5.15 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in China. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2000 (Legacy); measured to AS 1359.102.1:1997. Rated output across the Rototech range ranges from 0.75 to 160 kW; the Hu80B-4 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the Hu100LB-8 above it with 1.1 kW. 83 Rototech models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Rototech – other models: the collective page of MEPS-registered three-phase motors outside the named ranges, frame sizes 80 to 355, 0.75 to 160 kW, 2- to 8-pole, 415 V, IP55

This page gathers the three-phase motors carried in the Australian energy-efficiency register under the Rototech brand, which the register does not assign to a named range. No reliable information is available on Rototech's headquarters or group ownership. The type designations follow the scheme Hu with IEC frame size, a foot-form letter and pole count, e.g. Hu100L-2 or Hu160M-6; the further meaning of the Hu code cannot be established from the dump.

Read on 3 more paragraphs

The register lists here 83 versions with 0.75 to 160 kW, two- to eight-pole, all rated for 415 V. Full-load efficiencies run between 71 and 95.4%, and at 75% load between 69 and 95.3%. All 83 motors are built to protection rating IP55, frame sizes run from 80 to 355 under IEC, manufactured consistently in China and tested under the older 2000 Legacy standard with test method B. None of the 83 motors is classified under the Australian High Efficiency Level. The mounting code is consistently the combination B3/B5/B35.

The page thus covers a uniformly built IEC standard-motor programme without efficiency certification, common in the spares trade and retrofitting of older plant; the wide spread of frame sizes up to 355 shows that Rototech also carries larger industrial drives in its programme.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and efficiency class; since none of the motors carries a High Efficiency Level certification, for continuous duty it is worth comparing against IE2/IE3 alternatives. Spares depend on the distribution channel.

Sources: Kennwerte der Modelle Rototech (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output0.75 kWcorrect

Dimensions and weights

Weight11.5 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection class55correct
Frame size80 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load75.2 %correct
Efficiency at 75 % load75.06 %correct
Efficiency at half load72.1 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Rototech Hu80B-4 have?

The Rototech Hu80B-4 delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
