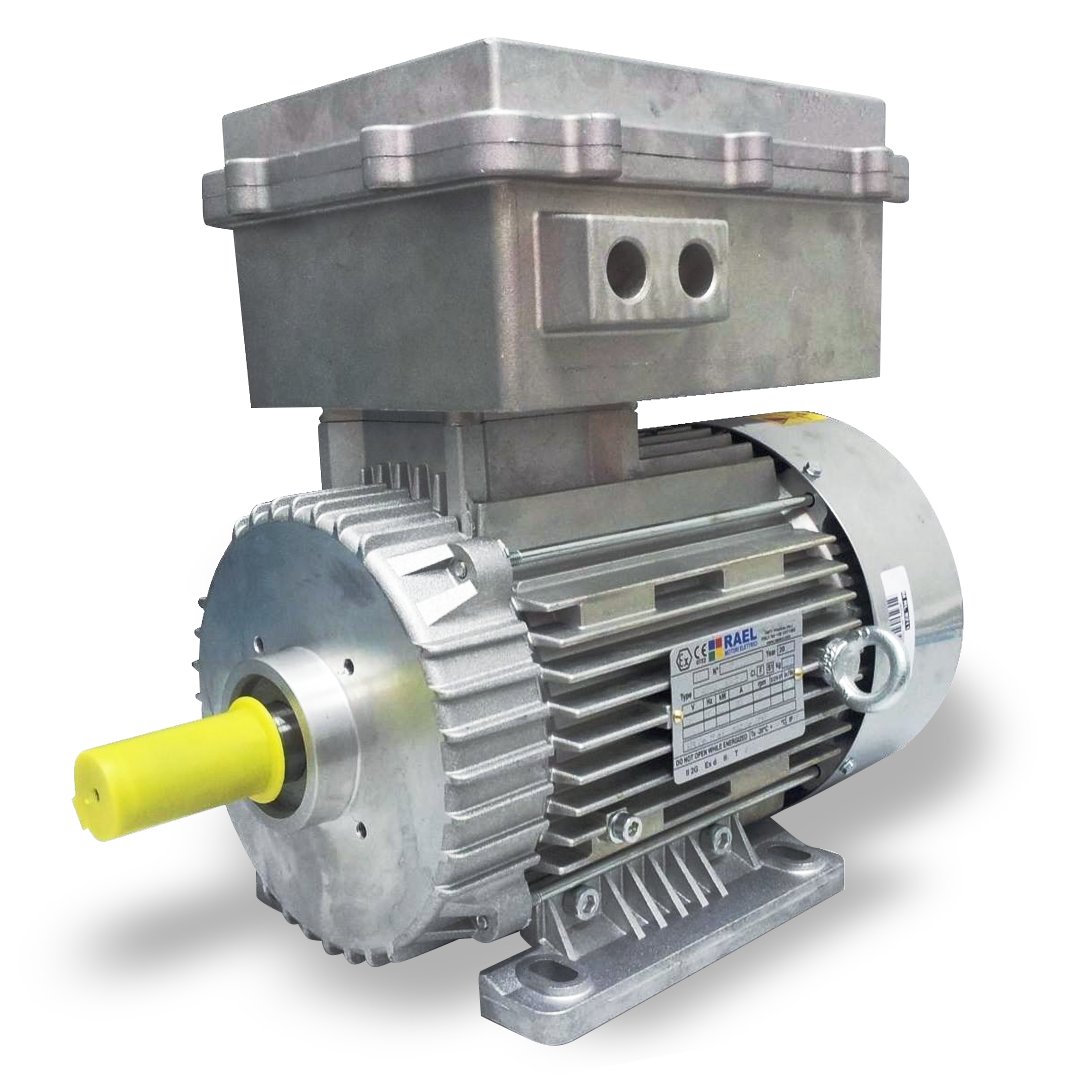

Rototech Hu200LA-2

Series: Other models

Source: https://rototech.com.au/products/electric-motors/rael-iecex/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Rototech lists the Hu200LA-2 as a three-phase induction motor. The rated output is 30 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 200. The protection class is IP55. The efficiency is 93.3 per cent at full load, 93.4 per cent at 75 per cent load and 89 per cent at half load. The motor weighs 257 kg. At full load it delivers 97.1 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in China. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to AS 1359.102.1:1997. Rated output across the Rototech range ranges from 0.75 to 160 kW; the Hu200LA-2 sits in the lower part of that range with 30 kW. Its immediate neighbours are the Hu225M-8 below it with 22 kW and the Hu200LB-2 above it with 37 kW. 83 Rototech models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output30 kWcorrect

Dimensions and weights

Weight257 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection class55correct
Frame size200correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load93.3 %correct
Efficiency at 75 % load93.4 %correct
Efficiency at half load89 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Rototech Hu200LA-2 have?

The Rototech Hu200LA-2 delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
