Rotek 80M1-2

Series: Other models

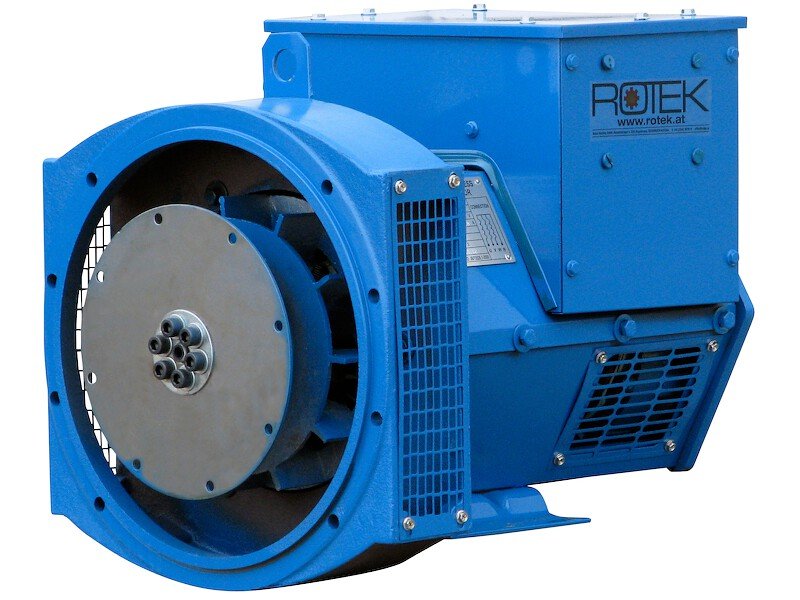

The photo shows the 200L2-2 from the same series. Source: https://watter.dk/itm/9009970002671/udgaaet-rotek-generator-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Rotek 80M1-2 is a three-phase induction motor from the Rotek range. The rated output is 0.75 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 80 M in foot-mounted form. The protection class is IP55. The efficiency is 75 per cent at full load, 74.4 per cent at 75 per cent load and 71 per cent at half load. The motor is built in China. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to AS 1359.102.1:1997. Rated output across the Rotek range ranges from 0.18 to 160 kW; the 80M1-2 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the 80M2-6 below it with 0.55 kW and the 80M2-2 above it with 1.1 kW. 132 Rotek models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output0.75 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size80 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1, V3, V5, V6, B6, B7, B8, V15, V36correct
Efficiency at full load75 %correct
Efficiency at 75 % load74.4 %correct
Efficiency at half load71 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Rotek 80M1-2 have?

The Rotek 80M1-2 delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
