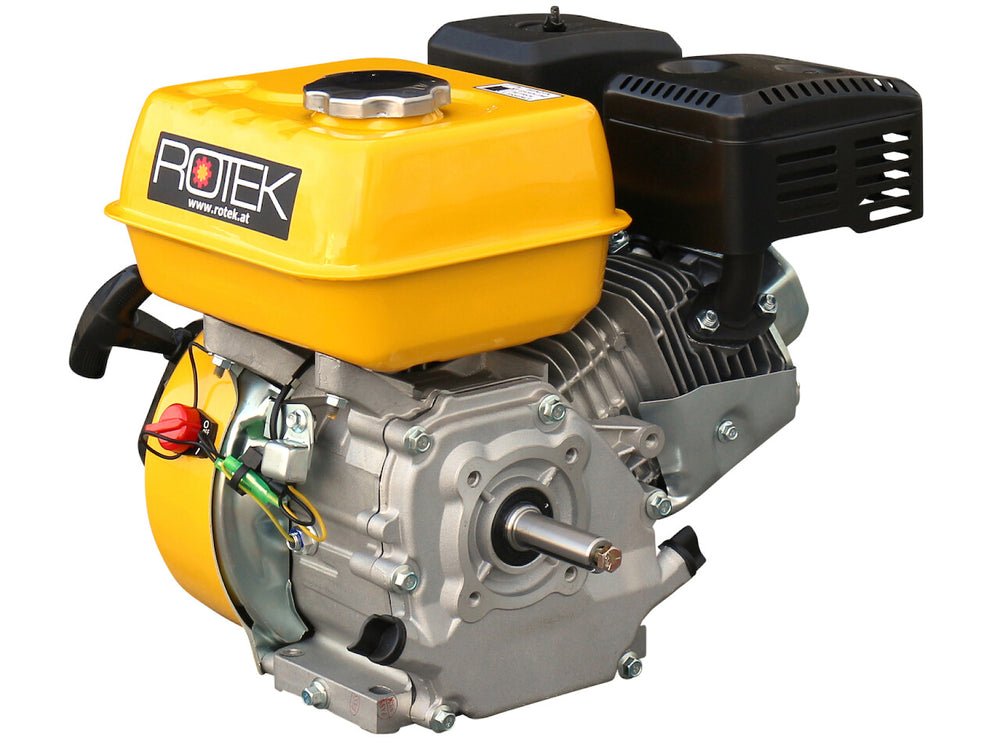

Rotek 160L-6

Series: Other models

Source: https://shop.rotek.at/pages/motoren?srsltid=AfmBOoq5IpSjTToc

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Rotek 160L-6 is a three-phase induction motor built by Rotek. The rated output is 11 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 400 V. The housing is frame size 160 L in foot-mounted form. The protection class is IP55. The efficiency is 88.5 per cent at full load, 88.6 per cent at 75 per cent load and 85.5 per cent at half load. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to AS/NZS 1359.102.3:2000. Rated output across the Rotek range ranges from 0.18 to 160 kW; the 160L-6 sits at the bottom of that range with 11 kW. Its immediate neighbours are the RXQ 7.5Kw 3 Phase Vertical 2 Pole Motor below it with 7.5 kW and the 160L-4 above it with 15 kW. 132 Rotek models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Rotek – other models: the collective page of MEPS-registered three-phase motors outside the named ranges, manufactured in China and Taiwan, frame sizes 63 to 280, 0.18 to 90 kW, 2- to 6-pole

This page gathers the Rotek three-phase motors the Australian energy-efficiency register could not assign to a named range. No confirmed data on the company itself is available. The model designations in the register are inconsistent: alongside plain-text descriptions such as "1.1Kw 6 Pole Motor", coded type designations like 160M1-2, following the frame-size/length/pole-count scheme, appear side by side.

Read on 3 more paragraphs

The register lists here 55 versions with 0.18 to 90 kW, two- to six-pole, full-load efficiencies from 65.9 to 94.9% and at 75% load from 65.1 to 96%. Frame sizes run from 63 to 280, protection is almost exclusively IP55 (54 of 55). China (46) and Taiwan (9) are recorded as manufacturing countries. Testing mostly followed the older 2000 Legacy AS/NZS 1359.5 standard (43), alongside the 2004 version (12), with test methods A (51) and B (4); none of the 55 motors carries a documented High Efficiency classification under GEMS.

With its broad output band from under 1 kW to 90 kW and manufacturing in China and Taiwan, Rotek covers a wide field of standard applications, from small fans to larger pump and conveyor drives.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible corrosion on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size and pole count; since none of the motors carries a High Efficiency classification, actual efficiency should be measured if in doubt. Spares and support depend on the distribution channel.

Sources: Kennwerte der Modelle Rotek (weitere Modelle, MEPS-Registrierungen)

Technical data

Engine

Rated output11 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles6correct
Protection classIP55correct
Frame size160 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1, V3, V5, V6, B6, B7, B8, V15, V36correct
Efficiency at full load88.5 %correct
Efficiency at 75 % load88.6 %correct
Efficiency at half load85.5 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Rotek 160L-6 have?

The Rotek 160L-6 delivers 11 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
