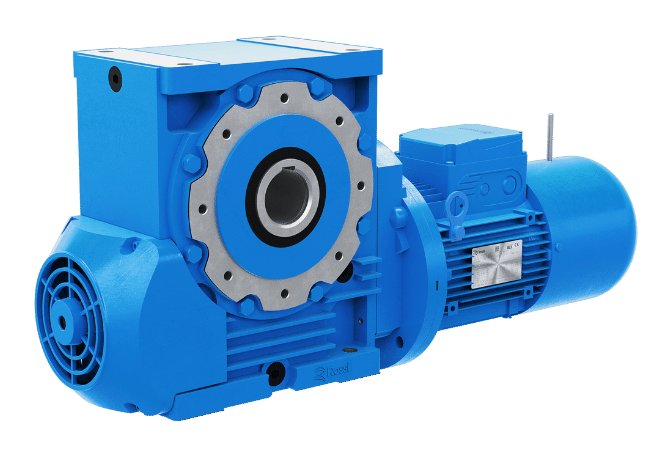

Rossi HF132M4

Series: Other models

Source: https://www.rossi.com/en/Products/Gearmotors

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HF132M4 from Rossi is a three-phase induction motor. The rated output is 7.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 132 M in foot-mounted form. The protection class is IP55. The efficiency is 87.1 per cent at full load, 86.7 per cent at 75 per cent load and 84.4 per cent at half load. The mounting arrangement to IEC 60034-7 is B5. The motor is built in Italy. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to AS 1359.102.1:1997. Rated output across the Rossi range ranges from 0.55 to 15 kW; the HF132M4 sits in the middle of that range with 7.5 kW. Its immediate neighbours are the HF132S4 below it with 5.5 kW and the HF132L4 above it with 9.2 kW. 47 Rossi models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output7.5 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size132 M (foot)correct
Mounting (IEC 60034-7)B5correct
Efficiency at full load87.1 %correct
Efficiency at 75 % load86.7 %correct
Efficiency at half load84.4 %correct

Origin and approval

Country of manufactureItalycorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Rossi HF132M4 have?

The Rossi HF132M4 delivers 7.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
