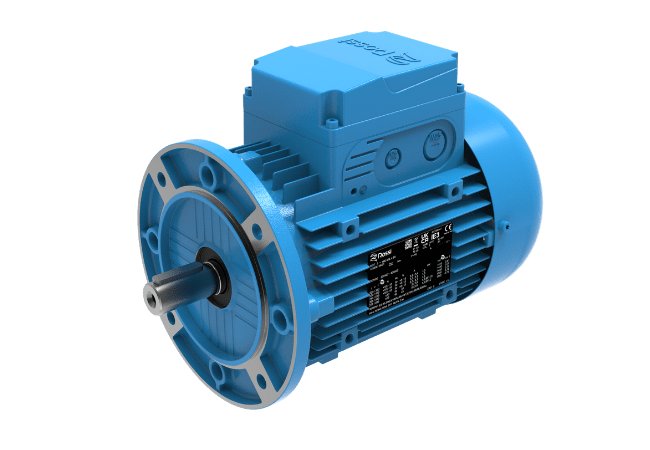

Rossi HB 100
Series: HB
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Rossi HB – three-phase motor from the Italian manufacturer in Modena: frame sizes 90 to 132, four-pole, 0.75 to 5.5 kW, IP55, flange mounting B5
HB is a three-phase motor range from Rossi, the Italian gearmotor manufacturer headquartered in Modena. The five versions listed cover frame sizes 80, 90, 100, 112 and 132; the B4 suffix on the smallest frame size refers to the winding or build variant within that frame size.
Read on 3 more paragraphs
The register lists five versions with 0.75 to 5.5 kW rated output, four poles throughout, and an efficiency span of 82.1 to 88% at full load and 80.5 to 87.9% at 75% load. Frame size ranges from 90 to 132, protection is IP55 throughout, and the voltage entry is uniformly 240/415 V. Manufacturing takes place in Italy, tested under the 2012 GEMS determination for three-phase motors, using test method A throughout. The mounting code for all five versions is B5.
With flange mounting across the whole output range, HB is designed for direct attachment to gearboxes, pumps and other units, covering the lower to mid output band of Rossi's motor programme for gearmotor combinations.
When buying used or swapping, check bearing condition, insulation resistance of the winding, visible overheating traces on the terminal box and fan cover, and a legible nameplate showing frame size, pole count and efficiency. For a flange motor, also check the condition of the spigot and flange threads, since damage there affects the fit to the mating unit. Spare parts run through the Rossi sales network.
Sources: Kennwerte der Modelle Rossi HB
Technical data
Engine
| Rated output | 2.2 kWcorrect |
|---|
Electrical data
| Rated voltage | 240/415 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55correct |
| Frame size | 100 (flange)correct |
| Mounting (IEC 60034-7) | B5correct |
| Efficiency at full load | 84.9 %correct |
| Efficiency at 75 % load | 85.6 %correct |
| Efficiency at half load | 84.4 %correct |
Origin and approval
| Country of manufacture | Italycorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct |
|---|---|
| Test method | AS/NZS 1359.102.3:2000correct |
Frequently asked questions
How much power does the Rossi HB 100 have?
The Rossi HB 100 delivers 2.2 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
