RCG T002.2D4HRCG

Series: Other models

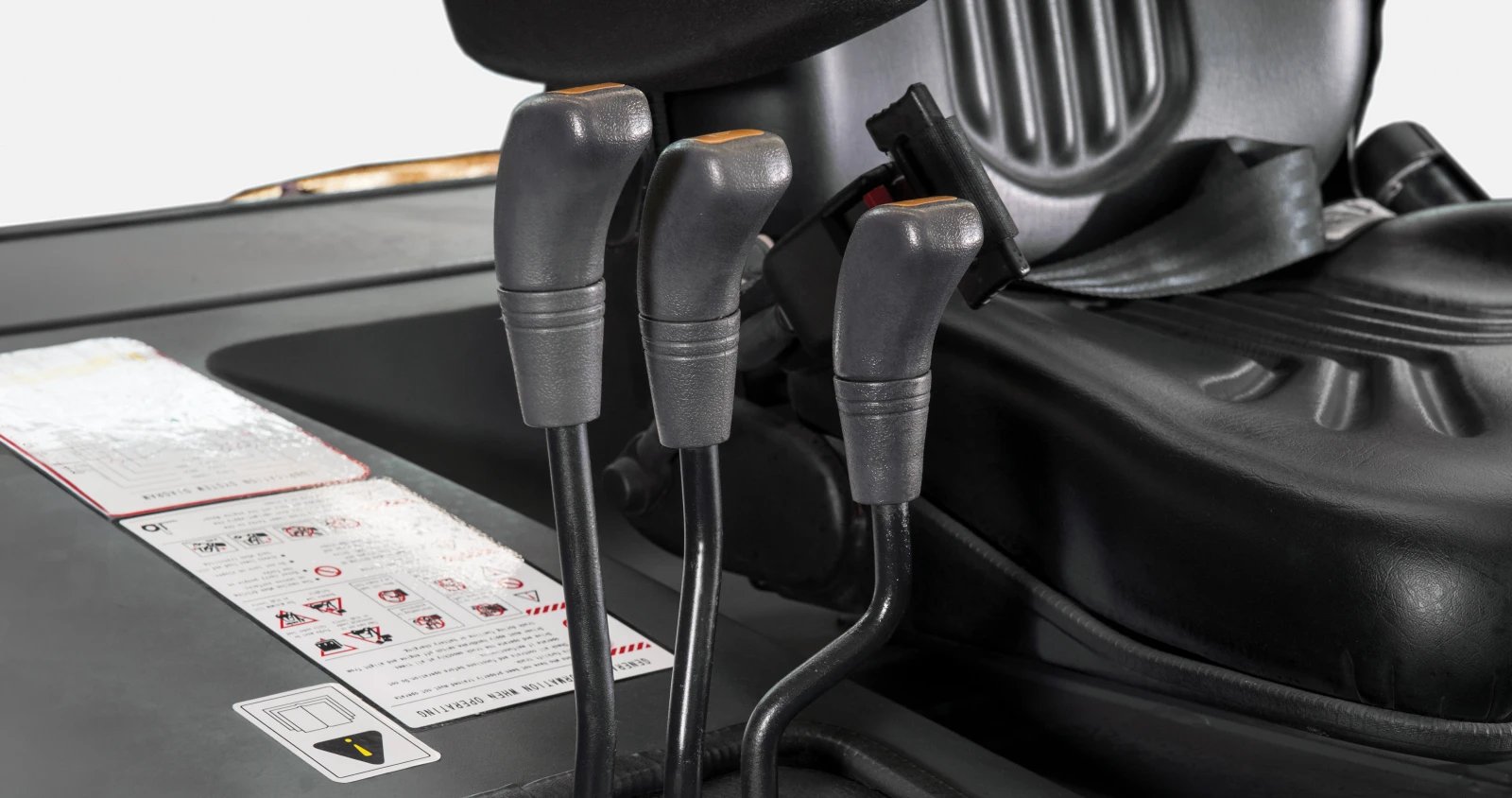

The photo shows the T1.5D4A-RCG from the same series. Source: https://www.still.dz/produits/chariots-neufs/chariots-elevat

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The RCG T002.2D4HRCG is a three-phase induction motor. The rated output is 2.2 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 415 V. The housing is frame size 100 L in foot-mounted form. The protection class is IP55. The efficiency is 87 per cent at full load, 86.7 per cent at 75 per cent load and 84.7 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B34 and B35. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to AS 1359.102.1:1997. Rated output across the RCG range ranges from 0.75 to 160 kW; the T002.2D4HRCG sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the T1.5D6ARCG below it with 1.5 kW and the T003D2HRCG above it with 3 kW. 130 RCG models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output2.2 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B34, B35correct
Efficiency at full load86.97 %correct
Efficiency at 75 % load86.74 %correct
Efficiency at half load84.69 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the RCG T002.2D4HRCG have?

The RCG T002.2D4HRCG delivers 2.2 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
