Perkins 403J-17

Q: How much power does the Perkins 403J-17 have?

The Perkins 403J-17 delivers 18 kW.

Built: 2020-2020 · Series: Other models

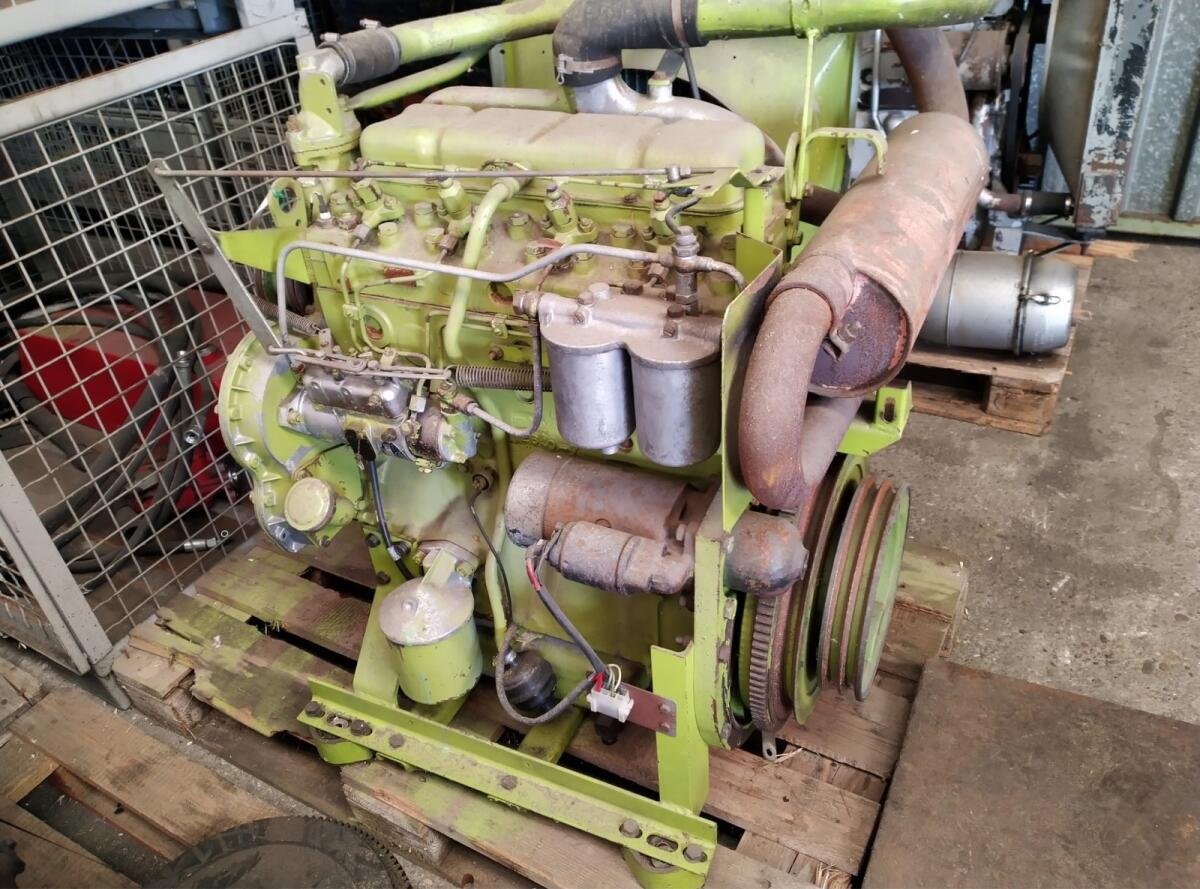

The photo shows the 4168/2200 from the same series. Source: https://www.landwirt.com/kleinanzeigen/detail/perkins-4-236-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 403J-17 comes from Perkins. Production: 2020. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 18 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Perkins range ranges from 4 to 678 kW; the 403J-17 sits at the bottom of that range with 18 kW. Its immediate neighbours are the 403J-11 below it with 15 kW and the 404D-22 above it with 21 kW. 352 Perkins models are on record. The model is listed under Non-road diesel engines. 24 verified figures from 1 source are on file.

Technical data

Engine

Engine code	IS24/2200correct
Engine family	NPKXL01.7J2V; PPKXL01.7J2V; MPKXL01.7J2V; LPKXL1.66J2Vcorrect
Engine families	NPKXL01.7J2V; PPKXL01.7J2V; MPKXL01.7J2V; LPKXL1.66J2Vcorrect
Fuel	7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output	18 kWcorrect
Power band	8<=kW<19correct
Rated speed	2,200 rpmcorrect
Maximum torque	91.9 N·mcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	3correct
Cylinder layout	in linecorrect
Bore	84 mmcorrect
Stroke	100 mmcorrect
Operating cycle	four-stroke dieselcorrect
Injection	indirect injectioncorrect
Aspiration	naturally aspiratedcorrect
Emissions stage	Tier 4 (Final or Phase In)correct

Origin and approval

Version	IS24/2200correct
Built from	2020correct
Built to	2023correct
Model year from	2020correct
Model year to	2023correct

Frequently asked questions

How much power does the Perkins 403J-17 have?

The Perkins 403J-17 delivers 18 kW.

When was the Perkins 403J-17 built?

Production years: 2020.

What to check before buying

Match the data plate against the order: frame size, mounting and rating have to agree.
For used units, ask about winding condition and bearing play.
Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →

Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
