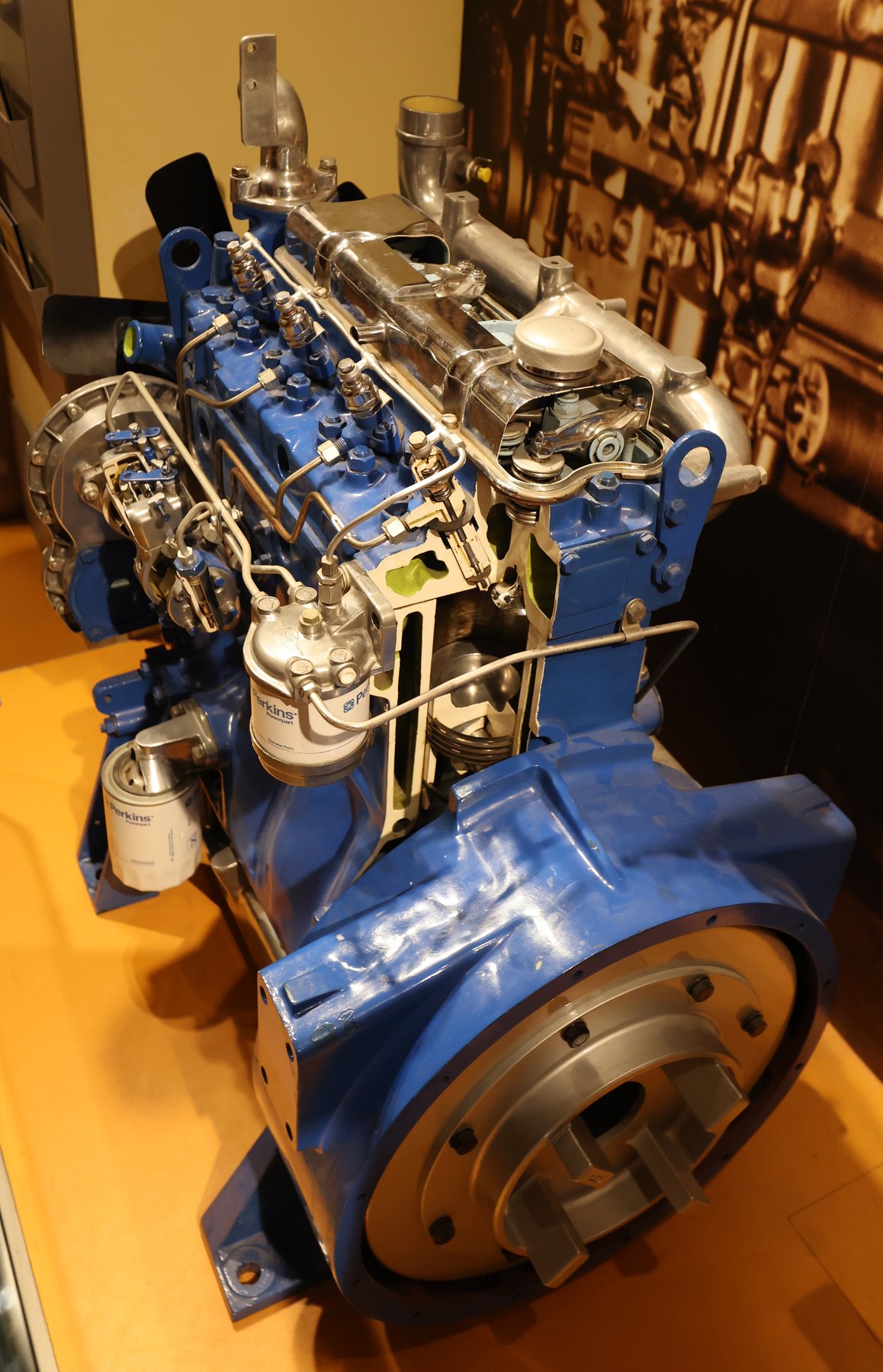

Perkins Engines 3361/2300
Built: 2012-2015 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine code | 1correct |
|---|---|
| Engine family | DPKXL04.4NL1correct |
| Fuel | 300-500 ppm Low Sulfur Diesel; Perkins specification for distilate diesel fuelcorrect |
| Rated output | 64 kWcorrect |
| Power band | 56<=kW<75correct |
| Rated speed | 2,300 rpmcorrect |
| Maximum torque | 368 N·mcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 105 mmcorrect |
| Stroke | 127 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Emissions stage | Tier 3correct |
Origin and approval
| Version | 1correct |
|---|---|
| Sales region | USA excluding Californiacorrect |
Frequently asked questions
How much power does the Perkins Engines 3361/2300 have?
The Perkins Engines 3361/2300 delivers 64 kW.
When was the Perkins Engines 3361/2300 built?
Production years: 2012-2015.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
