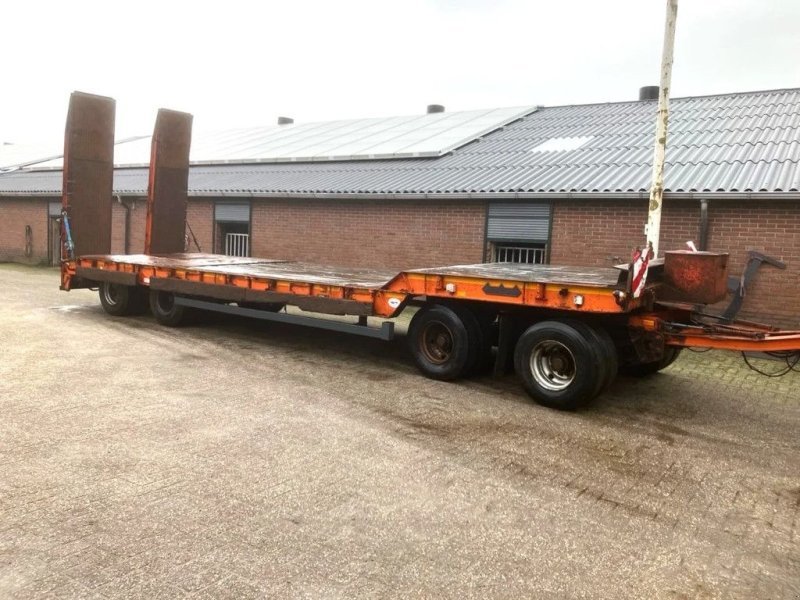

Nooteboom OVB 48VV
Built: 1995-1997 · Series: OVB
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nooteboom OVB – low-loader semi-trailer series: from the 32- to the 86-tonne version, 7,420 to 18,240 kg unladen weight, 2,480 to 2,550 mm width
OVB denotes semi low-loaders at Nooteboom, semi-trailers with a lowered load floor for transporting construction machinery and heavy loads. Nooteboom, based in Wijchen in the Netherlands, is among the oldest and best-known European manufacturers of low-loaders and special transport vehicles. The number sequence in the type name, for instance OVB 48 03 V or OVB 55 03 V, denotes payload or construction size, with the suffix V marking a version variant. Depending on payload, two to several steerable axle lines are used, allowing tight turning radii on building sites.
Read on 3 more paragraphs
The register lists 24 versions with an unladen weight of 7,420 to 18,240 kg and a gross weight of 32,000 to 86,000 kg. Widths range from 2,480 to 2,550 mm.
Semi low-loaders of this type carry excavators, wheel loaders and other construction machinery requiring a low loading height and compete with other European low-loader manufacturers in comparable weight classes up to 86 tonnes gross weight. The lowered load floor also allows transport where bridges or tunnels limit the clearance height.
When buying used, check the frame and the lowered load floor for cracks and deformation, as well as the ramps, axles, brake system and kingpin connection for wear. On steered axles, additionally check the hydraulic or mechanical steering system. It is also worth checking the ramp locking mechanism during transit and the function of the working lights. Spare parts and servicing for ramps, axles and steering are offered by Nooteboom through its dealer network.
Sources: Kennwerte der Modelle Nooteboom OVB, Nooteboom
Technical data
Dimensions and weights
| Length | 22,340 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,500 mmcorrect |
| Unladen weight | 13,540 kgcorrect |
| Gross vehicle weight | 48,000 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Nooteboom OVB 48VV weigh?
The unladen weight is 13,540 kg.
What is the gross vehicle weight of the Nooteboom OVB 48VV?
48,000 kg.
Up to what speed is the Nooteboom OVB 48VV approved?
Approved up to 100 km/h.
What are the dimensions of the Nooteboom OVB 48VV?
22,340 mm × 2,550 mm.
When was the Nooteboom OVB 48VV built?
Production years: 1995-1997.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
