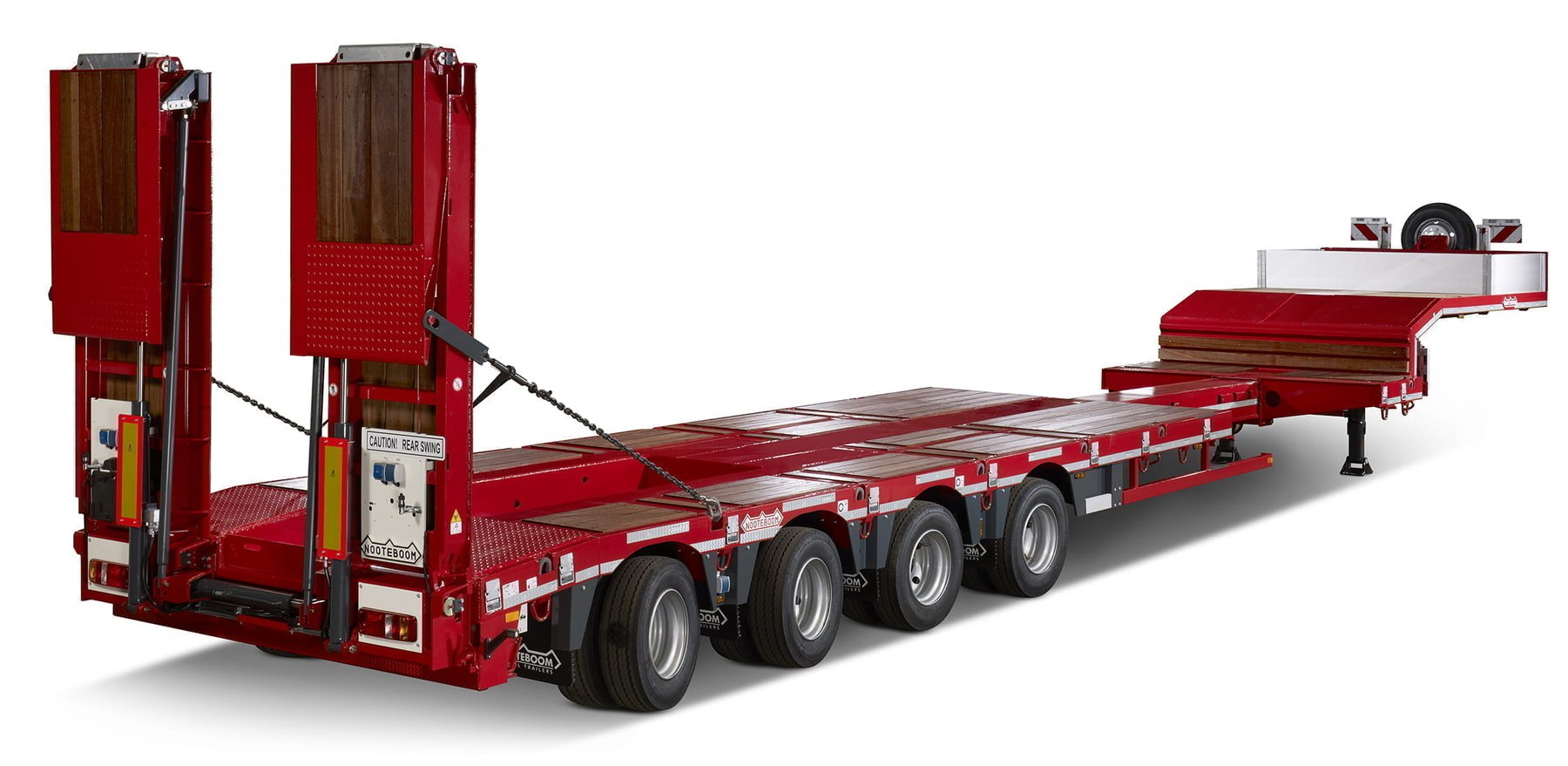

Nooteboom OSD 41 03
Built: 1996-2004 · Series: OSD
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nooteboom OSD – low-loader semi-trailer series from the Dutch heavy-transport manufacturer: multi-axle low-loaders with gross vehicle weights from 16,000 to 50,000 kg, 11.8 to 19.9 metres long
Nooteboom is a Dutch manufacturer of semi-trailers for heavy and special transport, based in Wijchen with a long history in vehicle building. Within the maker's range, the OSD series covers multi-axle low-loader semi-trailers designed for hauling construction machinery, plant components and other heavy, indivisible loads. The load bed sits low between the axle groups so that even tall cargo stays within the legal overall height.
Read on 3 more paragraphs
The register lists 24 versions of the OSD series with kerb weights from 5,160 to 18,880 kg at gross vehicle weights from 16,000 to 50,000 kg. Lengths range from 11,800 to 19,900 mm, widths from 2,490 to 2,800 mm.
The series covers the full spectrum, from a light low-loader for construction machinery to multi-axle trailers for very heavy special loads. The kingpin plate and axle assemblies have to be engineered so that tractor units of varying power can haul the trailer; in the European heavy-haulage business, Nooteboom competes with manufacturers such as Goldhofer and Faymonville for machinery and plant transport contracts.
When buying a used OSD trailer it is worth checking the axle assemblies and steering axles for play, the braking system including the trailer control valve, and the fifth-wheel coupling for wear. The chassis and load bed should be inspected for cracks and corrosion at the weld seams, and any hydraulic cylinders for ramps or height adjustment for leaks. Spare parts for axles, brakes and lighting are available from Nooteboom itself as well as from the independent commercial-vehicle parts trade.
Sources: Kennwerte der Modelle Nooteboom OSD, Nooteboom
Technical data
Dimensions and weights
| Length | 11,800 mmcorrect |
|---|---|
| Width | 2,520 mmcorrect |
| Wheelbase | 9,910 mmcorrect |
| Unladen weight | 13,020 kgcorrect |
| Gross vehicle weight | 41,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Nooteboom OSD 41 03 weigh?
The unladen weight is 13,020 kg.
What is the gross vehicle weight of the Nooteboom OSD 41 03?
41,000 kg.
Up to what speed is the Nooteboom OSD 41 03 approved?
Approved up to 100 km/h.
What are the dimensions of the Nooteboom OSD 41 03?
11,800 mm × 2,520 mm.
When was the Nooteboom OSD 41 03 built?
Production years: 1996-2004.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
