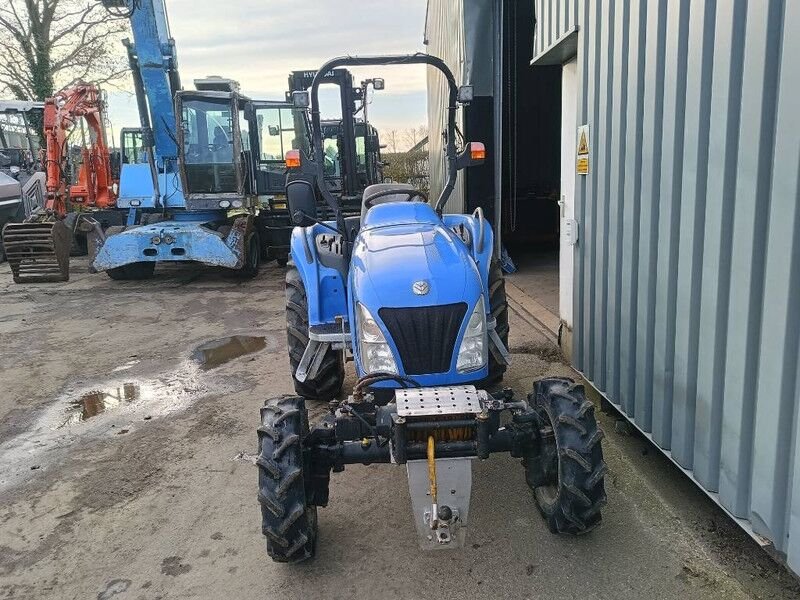

New Holland TN85DA 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TN85DA belongs to the New Holland 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 4.5 litres, producing 81 hp (59.7 kW). Rated output is reached at 2,300 rpm, so it works in the lower rev range.
Within the range, rated power spans from 18.8 to 622 hp; with 81.1 hp, the TN85DA sits in the mid-field. Directly alongside are the TK80MA with 78.1 hp below and the TN85FA with 83.1 hp above.
Technical data
Engine
| Power | 81.1 hp (59.7 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | naturalcorrect |
Dimensions and weights
| Length | 4,060 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | 8x8 constant-mesh gearbox transmission with synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| Tyre size | front: 11.2x20, rear 14.9x28correct |
| Turning radius | 3,870 mmcorrect |
Working data
| Lifting capacity | 1,800 kgcorrect |
|---|---|
| Pump flow | 57.2 l/mincorrect |
| Hydraulic pressure | 190correct |
| Fuel tank capacity | 89.3 lcorrect |
| PTO output | 69 hpcorrect |
Other data
| Cab height | 2,307.3correct |
|---|
Frequently asked questions
How much power does the New Holland TN85DA have?
The New Holland TN85DA delivers 81.1 hp.
What engine does the New Holland TN85DA have?
4 cylinders, 4,502 cm³ displacement.
What is the PTO output of the New Holland TN85DA?
PTO output is 69 hp.
How much does the rear linkage of the New Holland TN85DA lift?
The rear linkage lifts 1,800 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
