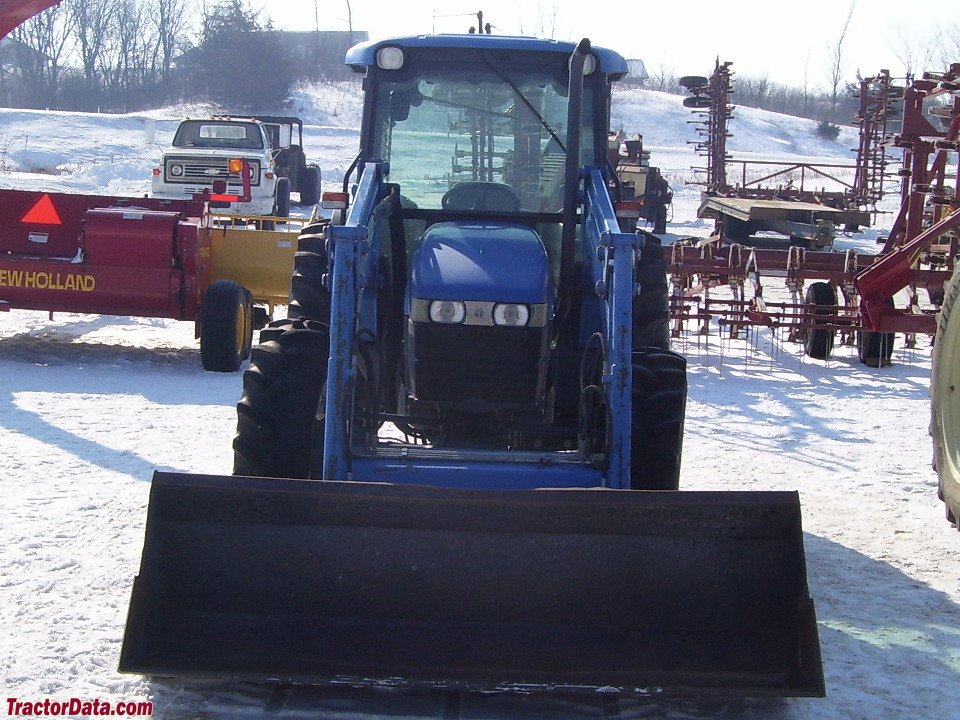

New Holland TN75SA 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TN75SA belongs to the New Holland 2WD Tractor series. From 2.9 litres the engine produces 76 hp (55.9 kW). Rated power is reached at 2,300 rpm.
Within the range, rated power spans from 25 to 157 hp; with 76 hp, the TN75SA sits in the lower third. Directly alongside are the TN75FA with 73 hp below and the T4030 with 77.1 hp above.
Technical data
Engine
| Power | 76 hp (55.9 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 298.3correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Displacement | 2,900.5 cm³correct |
| Aspiration | turbochargedcorrect |
Drivetrain and chassis
| Gearbox type | 8x8 constant-mesh gearbox w/ synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| Turning radius | 3,660 mmcorrect |
Working data
| Lifting capacity | 1,800 kgcorrect |
|---|---|
| Pump flow | 64.4 l/mincorrect |
| Fuel tank capacity | 74.2 lcorrect |
Other data
| PTO output | 62 hpcorrect |
|---|---|
| System voltage | 12 Vcorrect |
Frequently asked questions
How much power does the New Holland TN75SA have?
The New Holland TN75SA delivers 76 hp.
What engine does the New Holland TN75SA have?
2,900 cm³ displacement.
What is the PTO output of the New Holland TN75SA?
PTO output is 62 hp.
How much does the rear linkage of the New Holland TN75SA lift?
The rear linkage lifts 1,800 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
