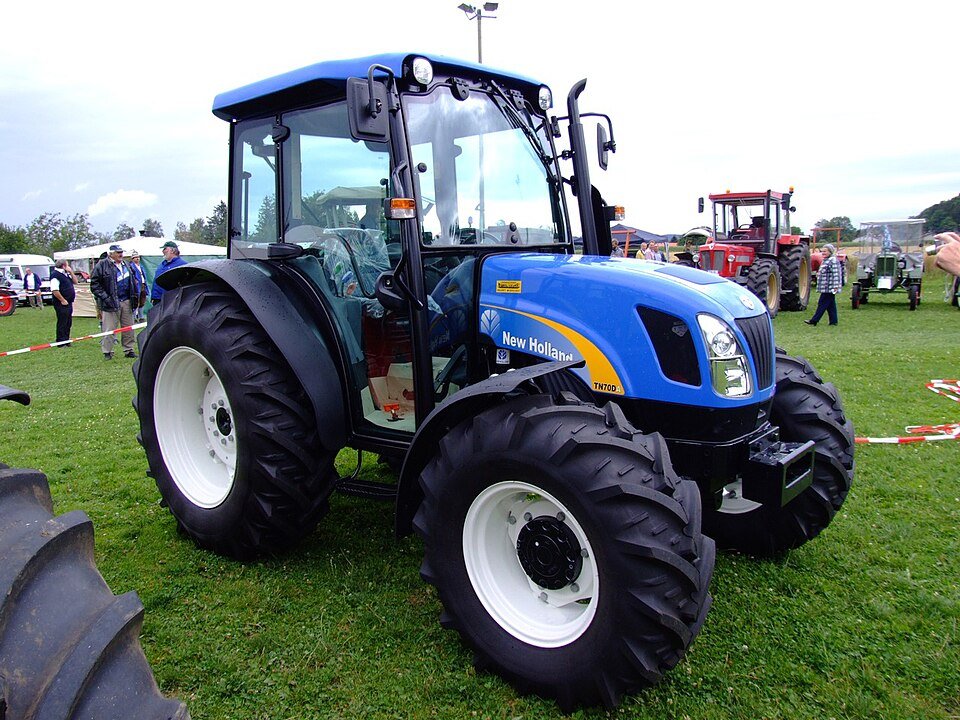

New Holland TN70DA 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TN70DA belongs to the New Holland 2WD Tractor series. 71 hp (52.2 kW) is what the three-cylinder engine gets out of 2.9 litres. Rated power is reached at 2,300 rpm.
Wheelbase is 2.13 m.
Within the range, rated power spans from 25 to 157 hp; with 71 hp, the TN70DA sits in the lower third. Directly alongside are the T4020 with 64.9 hp below and the TD80D with 73 hp above.
Technical data
Engine
| Power | 71 hp (52.2 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 289.1correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,133.6correct |
|---|
Drivetrain and chassis
| Gearbox type | 8x8 constant-mesh gearbox w/ synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 48.5 l/mincorrect |
|---|---|
| Fuel tank capacity | 74.2 lcorrect |
Frequently asked questions
How much power does the New Holland TN70DA have?
The New Holland TN70DA delivers 71 hp.
What engine does the New Holland TN70DA have?
3 cylinders, 2,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
