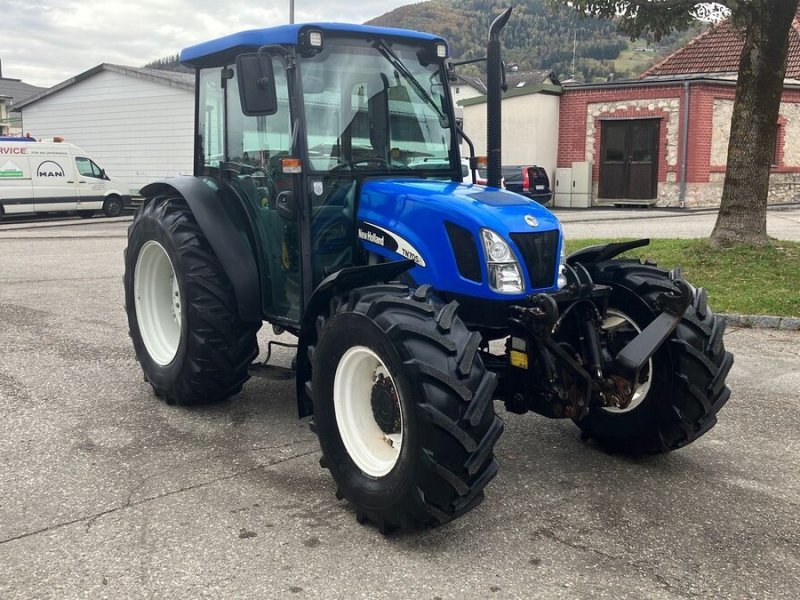

New Holland TN70A 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TN70A belongs to the New Holland 2WD Tractor series. Under the bonnet works a three-cylinder engine displacing 2.9 litres, producing 71 hp (52.2 kW). Rated power is reached at 2,300 rpm.
Wheelbase is 2.07 m.
Within the range, rated power spans from 25 to 157 hp; with 71 hp, the TN70A sits in the lower third. Directly alongside are the T4020 with 64.9 hp below and the TD80D with 73 hp above.
Technical data
Engine
| Power | 71 hp (52.2 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 288.8correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,072.6correct |
|---|
Drivetrain and chassis
| Gearbox type | 8x8 constant-mesh gearbox w/ synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 48.5 l/mincorrect |
|---|---|
| Fuel tank capacity | 87.1 lcorrect |
Frequently asked questions
How much power does the New Holland TN70A have?
The New Holland TN70A delivers 71 hp.
What engine does the New Holland TN70A have?
3 cylinders, 2,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
