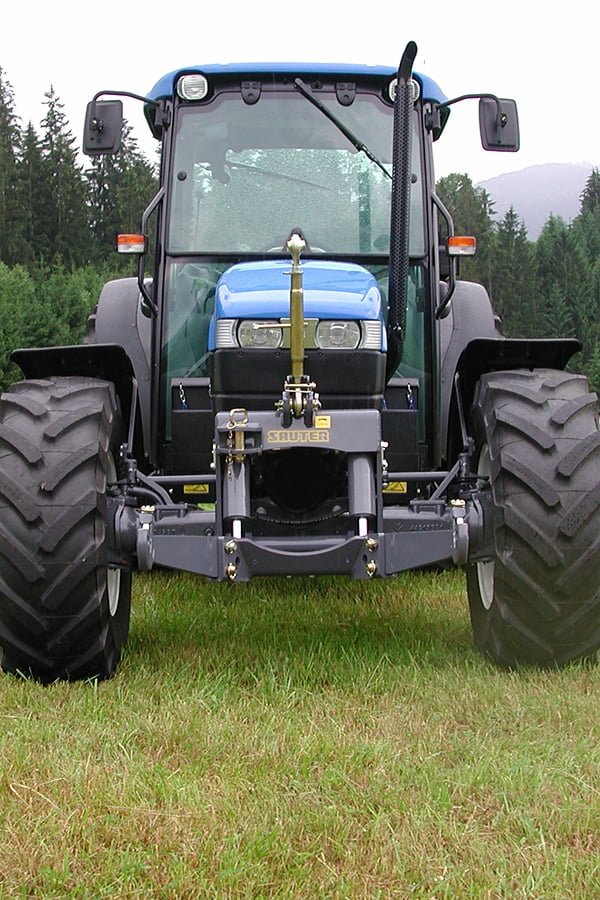

New Holland TN60DA 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TN60DA belongs to the New Holland 4WD Tractor series. 58 hp (42.5 kW) is what the three-cylinder engine gets out of 2.9 litres. Rated output is reached at 2,300 rpm, so it works in the lower rev range.
Within the range, rated power spans from 18.8 to 622 hp; with 57.8 hp, the TN60DA sits in the lower third. Directly alongside are the TT60A with 56.8 hp below and the T4020 with 64.9 hp above.
Technical data
Engine
| Power | 57.8 hp (42.5 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | naturalcorrect |
Drivetrain and chassis
| Gearbox type | 8x8 constant-mesh gearbox transmission with synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| Tyre size | front: 11.2x20, rear 14.9x28correct |
Working data
| Pump flow | 48.1 l/mincorrect |
|---|---|
| Hydraulic pressure | 190correct |
| Fuel tank capacity | 74.2 lcorrect |
Other data
| Height | 2,307.3correct |
|---|
Frequently asked questions
How much power does the New Holland TN60DA have?
The New Holland TN60DA delivers 57.8 hp.
What engine does the New Holland TN60DA have?
3 cylinders, 2,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
