New Holland TN60A Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

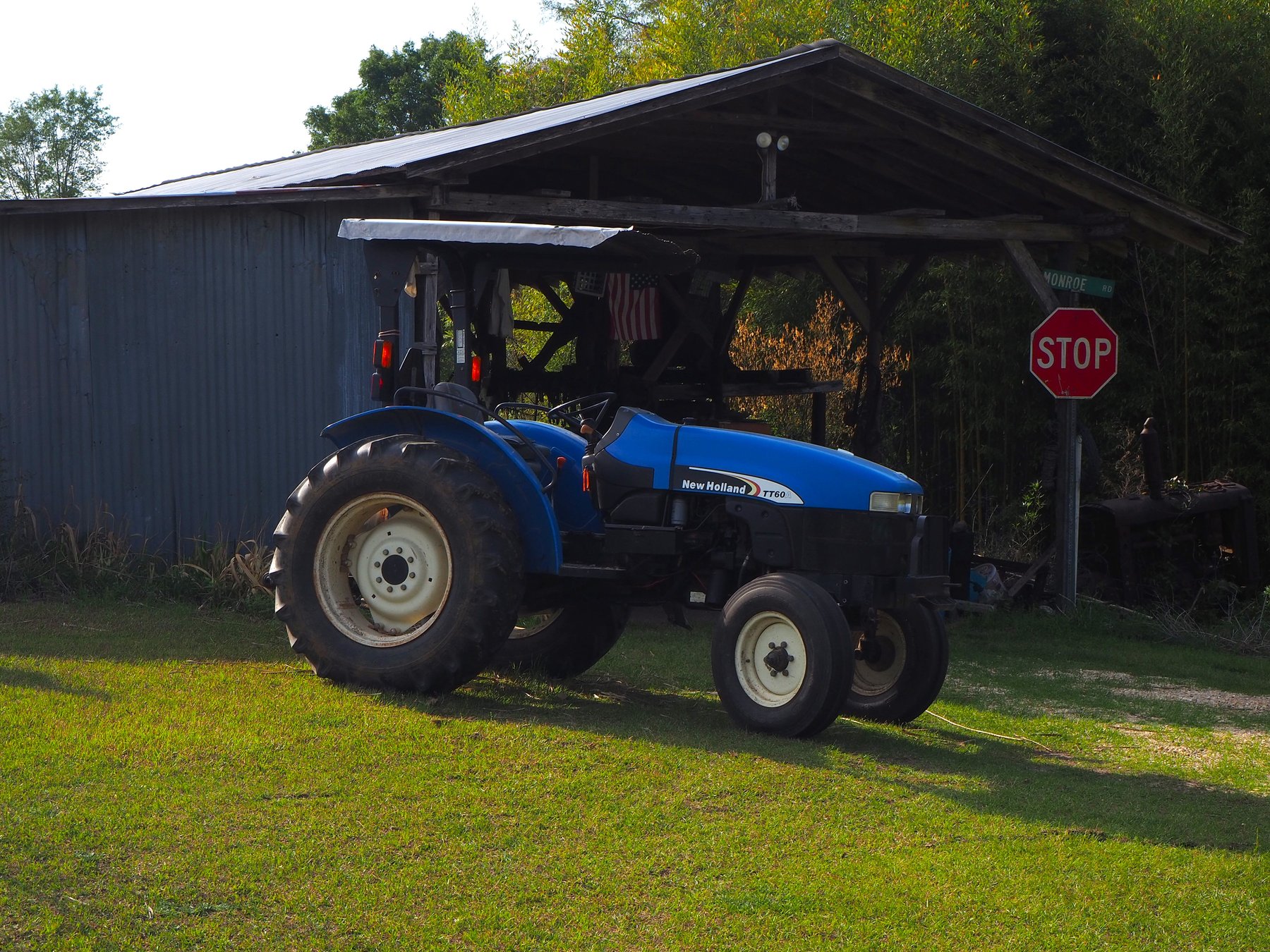

The New Holland TN60A is a tractor from the New Holland Utility Tractor series. Power comes from a three-cylinder engine; from 2.9 litres it draws 58 hp (42.5 kW). Rated power arrives at 2,300 rpm — the engine pulls from low down rather than needing to be revved.
Wheelbase is 2.07 m.
Within the range, rated power spans from 40.6 to 71 hp; with 57.8 hp, the TN60A sits in the mid-field. Directly alongside are the TT60A with 56.8 hp below and the WORKMASTER™ 60 2WD with 60.8 hp above.
Technical data
Engine
| Power | 57.8 hp (42.5 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 215.6correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,900.5 cm³correct |
| Aspiration | naturally aspiratedcorrect |
Dimensions and weights
| Wheelbase | 2,072.6correct |
|---|
Drivetrain and chassis
| Gearbox type | 8x8 constant-mesh gearbox w/ synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 48.5 l/mincorrect |
|---|---|
| Fuel tank capacity | 87.1 lcorrect |
Frequently asked questions
How much power does the New Holland TN60A have?
The New Holland TN60A delivers 57.8 hp.
What engine does the New Holland TN60A have?
3 cylinders, 2,900 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
