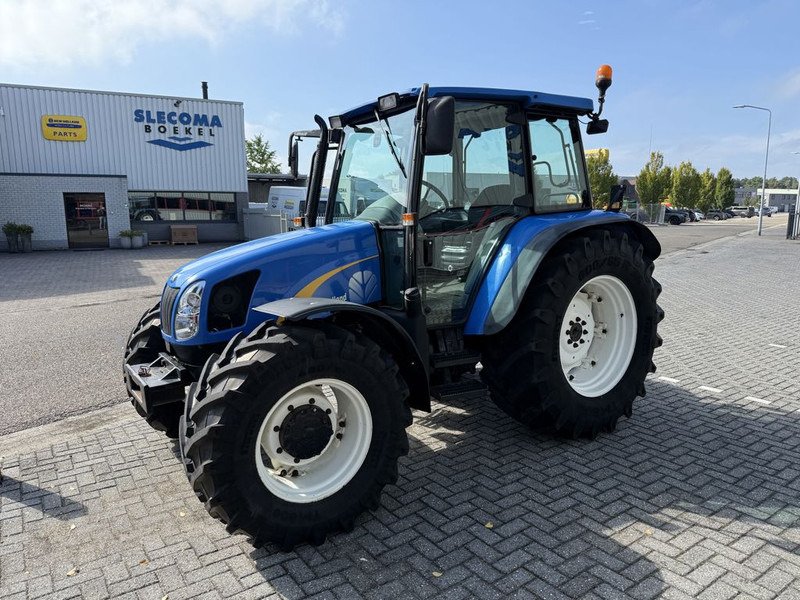

New Holland TL90A 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland TL90A is a tractor from the New Holland 4WD Tractor series. The four-cylinder engine, displacing 4.5 litres, produces 91 hp (67.1 kW). Rated output is reached at 2,500 rpm, so it works in the lower rev range.
Within the range, rated power spans from 18.8 to 622 hp; with 91.2 hp, the TL90A sits in the mid-field. Directly alongside are the TK90MA with 88.2 hp below and the TN95FA with 92.3 hp above.
Technical data
Engine
| Power | 91.2 hp (67.1 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 14 lcorrect |
| Engine oil capacity | 9.8 lcorrect |
Drivetrain and chassis
| Gearbox type | 12x12 Synchro Command w/mechanical gearbox shuttlecorrect |
|---|---|
| Tyre size | 18.4R30correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 75.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 126.8 lcorrect |
Other data
| Height | 2,606correct |
|---|
Frequently asked questions
How much power does the New Holland TL90A have?
The New Holland TL90A delivers 91.2 hp.
What engine does the New Holland TL90A have?
4 cylinders, 4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
