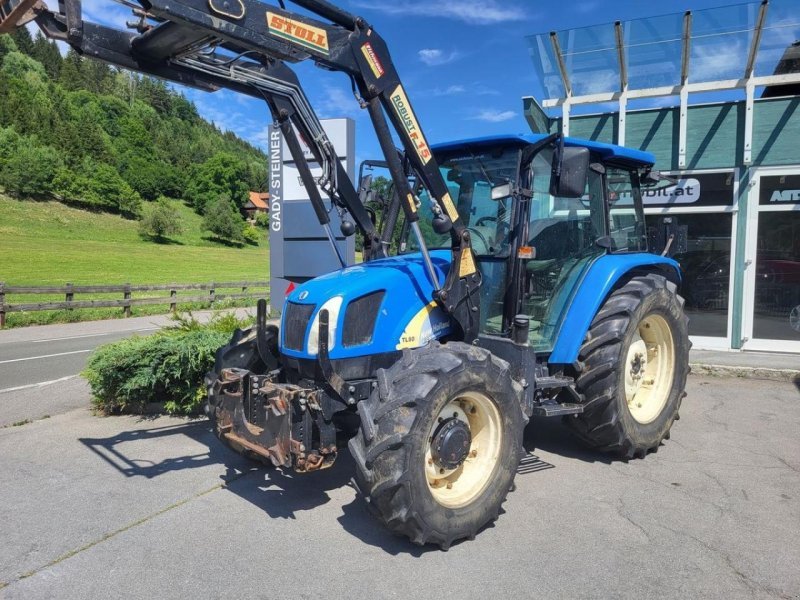

New Holland TL80A 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland TL80A is a tractor from the New Holland 4WD Tractor series. The engine draws 81 hp (59.7 kW) from 4.5 litres. With a rated speed of 2,500 rpm, it is built for pulling power, not for revving.
Within the range, rated power spans from 18.8 to 622 hp; with 81.1 hp, the TL80A sits in the mid-field. Directly alongside are the TK80MA with 78.1 hp below and the TN85FA with 83.1 hp above.
Technical data
Engine
| Power | 81.1 hp (59.7 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Displacement | 4,501.5 cm³correct |
| Aspiration | Naturalcorrect |
| Coolant capacity | 14 lcorrect |
| Engine oil capacity | 9.8 lcorrect |
Drivetrain and chassis
| Gearbox type | 12x12 Synchro Command w/ mechanical gearbox shuttlecorrect |
|---|---|
| Tyre size | 18.4R30correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 75.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 126.8 lcorrect |
Other data
| Height | 2,606correct |
|---|
Frequently asked questions
How much power does the New Holland TL80A have?
The New Holland TL80A delivers 81.1 hp.
What engine does the New Holland TL80A have?
4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
