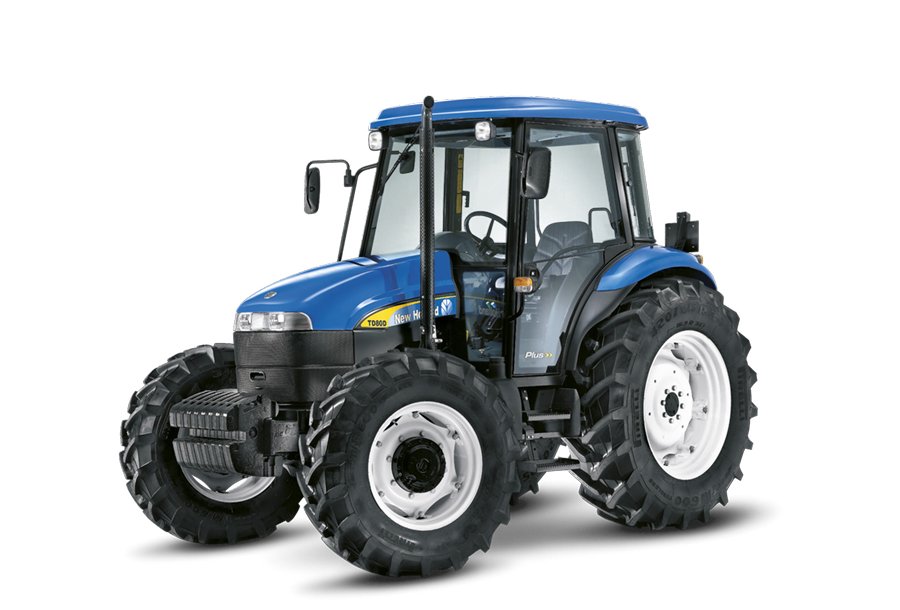

New Holland TD80D 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland TD80D is a tractor from the New Holland 4WD Tractor series. The four-cylinder engine, displacing 3.9 litres, produces 73 hp (53.7 kW). With a rated speed of 2,500 rpm, it is built for pulling power, not for revving.
At 28 km/h, that is as fast as it goes.
Within the range, rated power spans from 18.8 to 622 hp; with 73 hp, the TD80D sits in the lower third. Directly alongside are the TN70A with 71 hp below and the NH 640 with 76 hp above.
Technical data
Engine
| Power | 73 hp (53.7 kW)correct |
|---|---|
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,900.1 cm³correct |
| Aspiration | naturally aspiratedcorrect |
Drivetrain and chassis
| Gearbox type | synchromesh gearbox mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | rear: 16.9x30correct |
| Top speed | 27.8 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 82.1 l/mincorrect |
|---|---|
| Hydraulic pressure | 190correct |
| Fuel tank capacity | 90.1 lcorrect |
Other data
| Height | 2,621.3correct |
|---|
Frequently asked questions
How much power does the New Holland TD80D have?
The New Holland TD80D delivers 73 hp.
What engine does the New Holland TD80D have?
4 cylinders, 3,900 cm³ displacement.
How fast does the New Holland TD80D go?
Top speed is 27.8 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
