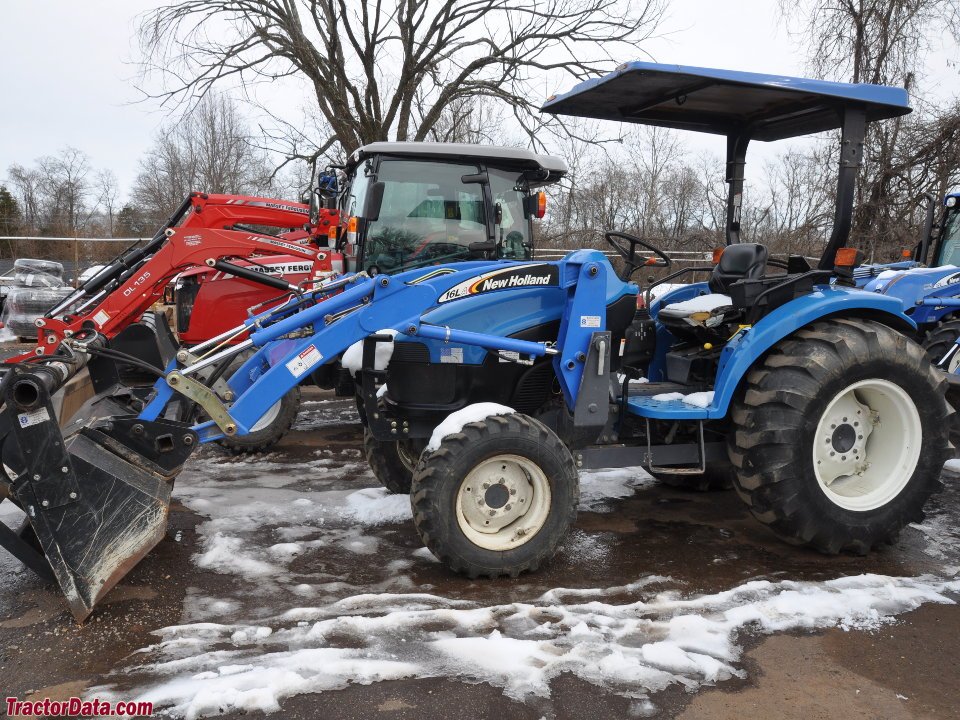

New Holland TC45 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TC45 belongs to the New Holland 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 2.2 litres, producing 46 hp (33.6 kW). With a rated speed of 2,600 rpm, it is built for pulling power, not for revving.
At 24 km/h, that is as fast as it goes. Empty, it weighs 1,519 kg.
Within the range, rated power spans from 18.8 to 622 hp; with 45.6 hp, the TC45 sits at the bottom end. Directly alongside are the TC40D with 40.6 hp below and the NH 480 with 55.8 hp above.
Technical data
Engine
| Power | 45.6 hp (33.6 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,215.5 cm³correct |
Dimensions and weights
| Length | 3,180 mmcorrect |
|---|---|
| Ground clearance | 356.1correct |
| Unladen weight | 1,519.1 kgcorrect |
Drivetrain and chassis
| Gearbox type | manual gearboxcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | Front 7x16, Rear 13.6x24correct |
| Top speed | 23.8 km/hcorrect |
| Turning radius | 2,800 mmcorrect |
Working data
| Lifting capacity | 1,057 kgcorrect |
|---|---|
| Pump flow | 56.4 l/mincorrect |
| Fuel tank capacity | 49.2 lcorrect |
| PTO output | 40 hpcorrect |
Other data
| Cab height | 2,414correct |
|---|
Where this model stands
Power-to-weight ratio: 22.1 kW/t (34 kW / 1.5 t)
Power class: Universal (40–100 hp)
Stronger than 31% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TC45 have?
The New Holland TC45 delivers 45.6 hp.
How much does the New Holland TC45 weigh?
The unladen weight is 1,519 kg.
What engine does the New Holland TC45 have?
4 cylinders, 2,216 cm³ displacement.
How fast does the New Holland TC45 go?
Top speed is 23.8 km/h.
What is the PTO output of the New Holland TC45?
PTO output is 40 hp.
How much does the rear linkage of the New Holland TC45 lift?
The rear linkage lifts 1,057 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
