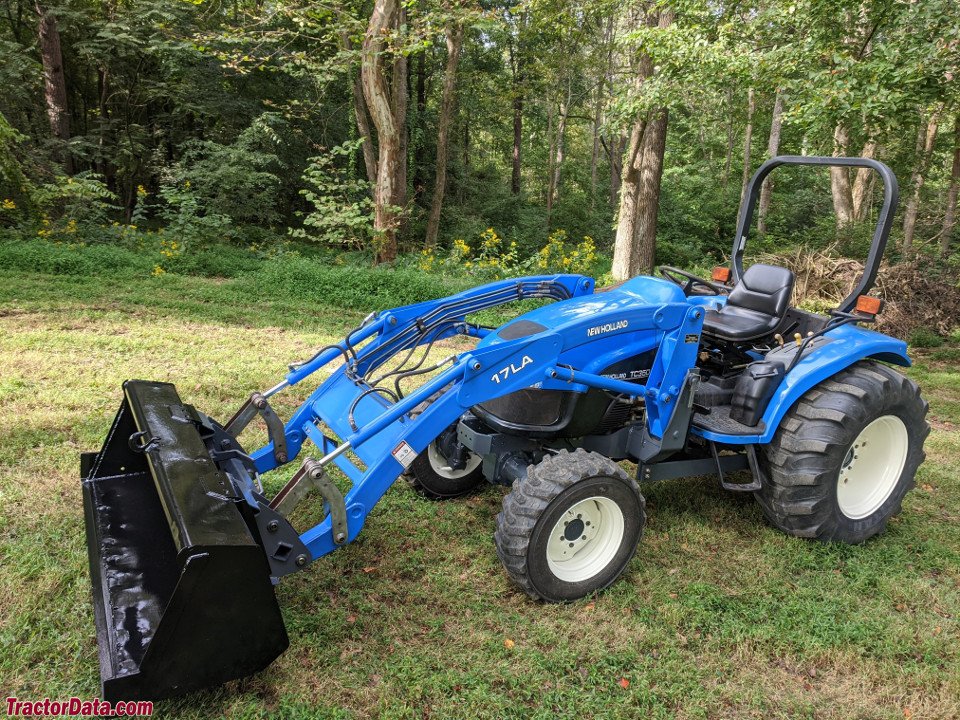

New Holland TC35D 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland TC35D is a tractor from the New Holland 4WD Tractor series. Power comes from a three-cylinder engine; from 1.7 litres it draws 36 hp (26.1 kW). With a rated speed of 2,600 rpm, it is built for pulling power, not for revving.
At 23 km/h, that is as fast as it goes. Empty, it weighs 1,475 kg.
Within the range, rated power spans from 18.8 to 622 hp; with 35.5 hp, the TC35D sits at the bottom end. Directly alongside are the TC33D with 33.5 hp below and the TC40 with 40.6 hp above.
Technical data
Engine
| Power | 35.5 hp (26.1 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,656.7 cm³correct |
Dimensions and weights
| Length | 3,180 mmcorrect |
|---|---|
| Ground clearance | 356.1correct |
| Unladen weight | 1,475.1 kgcorrect |
Drivetrain and chassis
| Gearbox type | Dualpowercorrect |
|---|---|
| Tyre size | Front 7x16, Rear 13.6x24correct |
| Top speed | 23 km/hcorrect |
| Turning radius | 2,800 mmcorrect |
Working data
| Lifting capacity | 919 kgcorrect |
|---|---|
| Pump flow | 56.4 l/mincorrect |
| Fuel tank capacity | 49.2 lcorrect |
Other data
| Cab height | 2,414correct |
|---|---|
| PTO output | 29 hpcorrect |
Where this model stands
Power-to-weight ratio: 17.7 kW/t (26 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 23% of the tractors in the register — out of 15,030 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TC35D have?
The New Holland TC35D delivers 35.5 hp.
How much does the New Holland TC35D weigh?
The unladen weight is 1,475 kg.
What engine does the New Holland TC35D have?
3 cylinders, 1,657 cm³ displacement.
How fast does the New Holland TC35D go?
Top speed is 23 km/h.
What is the PTO output of the New Holland TC35D?
PTO output is 29 hp.
How much does the rear linkage of the New Holland TC35D lift?
The rear linkage lifts 919 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
