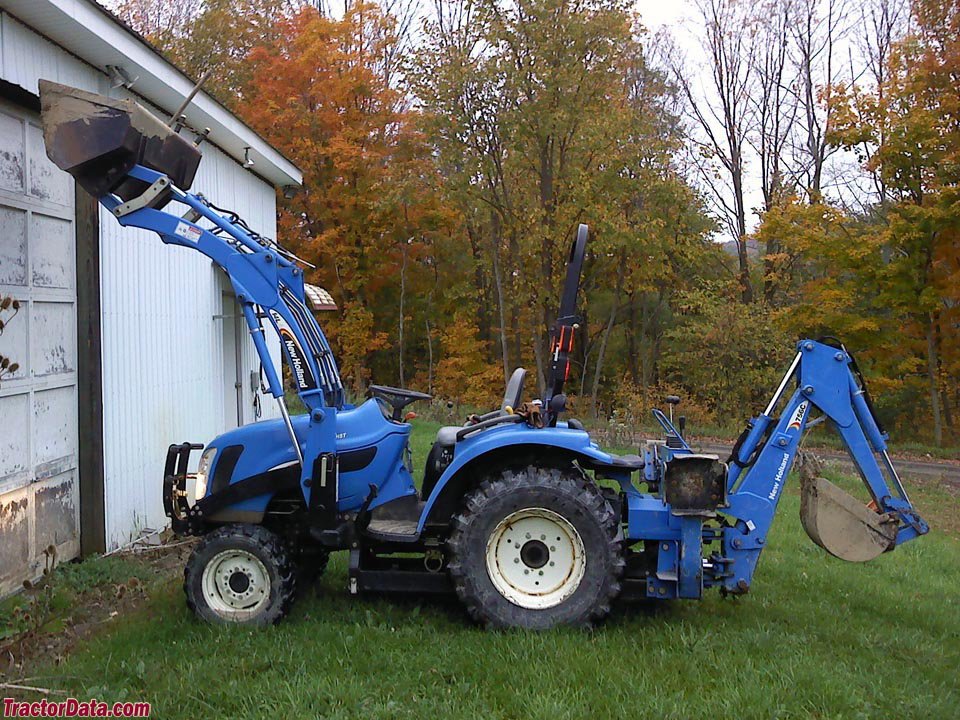

New Holland TC29D 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland TC29D belongs to the New Holland 4WD Tractor series. 29 hp (21.6 kW) is what the three-cylinder engine gets out of 1.3 litres. Rated power is reached at 2,800 rpm.
At 21 km/h, that is as fast as it goes. Empty, it weighs 1,122 kg.
Within the range, rated power spans from 18.8 to 622 hp; with 29.4 hp, the TC29D sits at the bottom end. Directly alongside are the TC24D with 24.3 hp below and the TC33D with 33.5 hp above.
Technical data
Engine
| Power | 29.4 hp (21.6 kW)correct |
|---|---|
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,330.6 cm³correct |
Dimensions and weights
| Length | 2,700 mmcorrect |
|---|---|
| Ground clearance | 355.1correct |
| Unladen weight | 1,122.2 kgcorrect |
Drivetrain and chassis
| Gearbox type | manual gearboxcorrect |
|---|---|
| Forward gears | 9correct |
| Reverse gears | 3correct |
| Tyre size | Front 7x14, Rear 11.2x24correct |
| Top speed | 20.6 km/hcorrect |
| Turning radius | 2,470 mmcorrect |
Working data
| Lifting capacity | 742 kgcorrect |
|---|---|
| Pump flow | 48.1 l/mincorrect |
| Fuel tank capacity | 27.6 lcorrect |
| PTO output | 25 hpcorrect |
Other data
| Cab height | 2,231.1correct |
|---|
Where this model stands
Power-to-weight ratio: 19.2 kW/t (22 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 17% of the tractors in the register — out of 15,105 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TC29D have?
The New Holland TC29D delivers 29.4 hp.
How much does the New Holland TC29D weigh?
The unladen weight is 1,122 kg.
What engine does the New Holland TC29D have?
3 cylinders, 1,331 cm³ displacement.
How fast does the New Holland TC29D go?
Top speed is 20.6 km/h.
What is the PTO output of the New Holland TC29D?
PTO output is 25 hp.
How much does the rear linkage of the New Holland TC29D lift?
The rear linkage lifts 742 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
