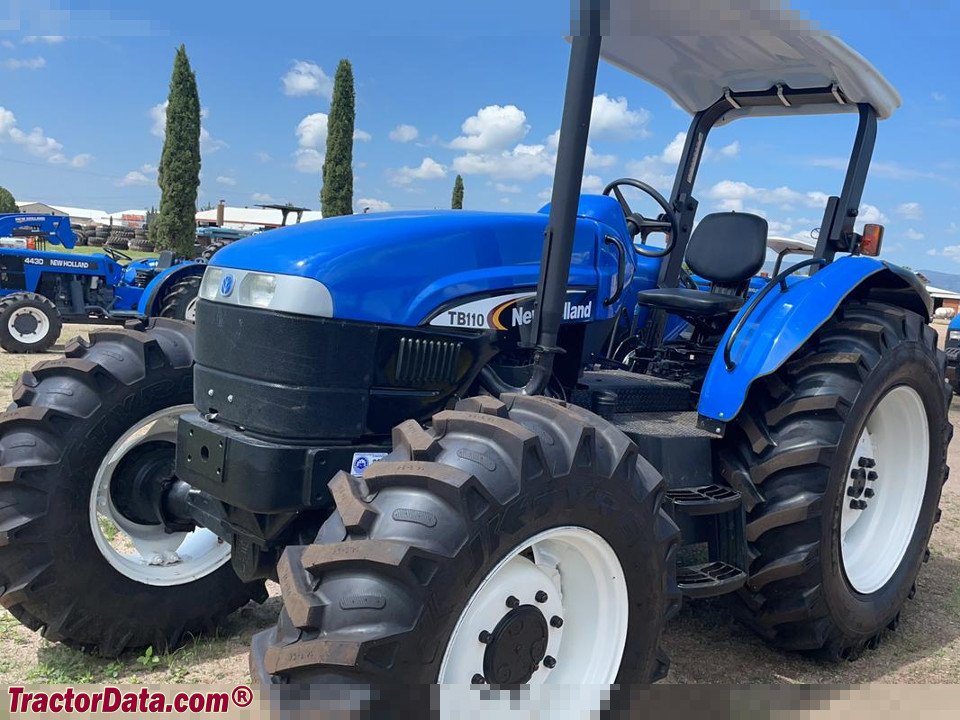

New Holland TB110 Low-Profile 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland TB110 Low-Profile is a tractor from the New Holland 2WD Tractor series. The four-cylinder engine, displacing 5 litres, produces 110 hp (80.5 kW). Rated power arrives at 2,100 rpm — the engine pulls from low down rather than needing to be revved.
It will not go faster than 25 km/h — a working pace, not a travelling one. It measures 2.03 m across. Wheelbase is 2.29 m.
Within the range, rated power spans from 25 to 157 hp; with 110 hp, the TB110 Low-Profile sits in the upper third. Directly alongside are the T5060 with 106 hp below and the T6020 Delta Series with 112 hp above.
Technical data
Engine
| Power | 109.5 hp (80.5 kW)correct |
|---|---|
| Rated speed | 2,100 rpmcorrect |
| Torque | 337.6correct |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 5,001.3 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Width | 2,033correct |
|---|---|
| Wheelbase | 2,286correct |
| Ground clearance | 292.1correct |
Drivetrain and chassis
| Gearbox type | constant-mesh gearboxcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Tyre size | Front 9.5x24, Rear 16.9x24correct |
| Top speed | 24.6 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 70 l/mincorrect |
|---|---|
| Hydraulic pressure | 179.3correct |
| Fuel tank capacity | 140.1 lcorrect |
Other data
| Height | 1,615.4correct |
|---|
Frequently asked questions
How much power does the New Holland TB110 Low-Profile have?
The New Holland TB110 Low-Profile delivers 110 hp.
What engine does the New Holland TB110 Low-Profile have?
4 cylinders, 5,001 cm³ displacement.
How fast does the New Holland TB110 Low-Profile go?
Top speed is 24.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
