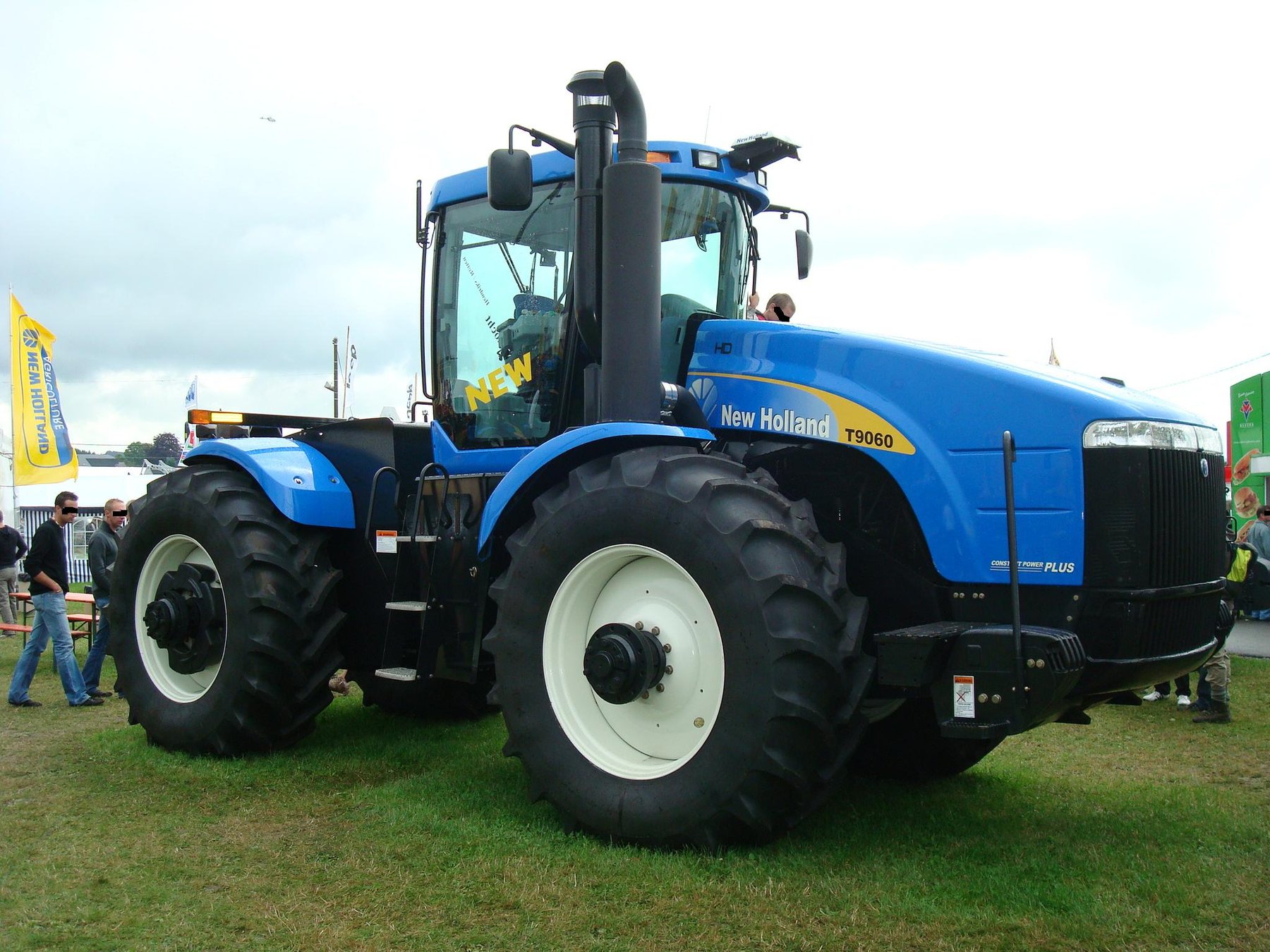

New Holland T9060 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland T9060 is a tractor from the New Holland 4WD Tractor series. The engine draws 597 hp (398.9 kW) from 15 litres. Rated speed is 2,000 rpm.
Unladen, it tips the scales at 24,494 kg.
Within the range, rated power spans from 18.8 to 622 hp; with 597 hp, the T9060 sits at the top. Directly alongside are the T9050 with 542 hp below and the T9.615 with 622 hp above.
New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF, Genesis, Iveco and Cummins engines
This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.
Read on 3 more paragraphs
The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.
New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.
On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.
Sources: Kennwerte der Modelle New Holland (weitere Modelle), New Holland Agriculture (Hersteller)
Technical data
Engine
| Engine make | Cumminscorrect |
|---|---|
| Engine model | QSX15correct |
| Fuel | dieselcorrect |
| Power | 597.2 hp (398.9 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Displacement | 15,000.7 cm³correct |
| Aspiration | Turbocharged, air to air after cooledcorrect |
| Cooling | water-cooledcorrect |
| Coolant capacity | 79.9 lcorrect |
| Engine oil capacity | 49.2 lcorrect |
Dimensions and weights
| Length | 7,560 mmcorrect |
|---|---|
| Unladen weight | 24,494 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel driveWDcorrect |
|---|---|
| Gearbox type | powershift transmissioncorrect |
| Forward gears | 16correct |
| Reverse gears | 2correct |
| Forward gears | 16correct |
| Reverse gears | 2correct |
| Tyre size | 20.8R42correct |
| Turning radius | 5,120 mmcorrect |
Working data
| Lifting capacity | 8,900 kgcorrect |
|---|---|
| Pump flow | 159 l/mincorrect |
| Fuel tank capacity | 1,135.6 lcorrect |
Origin and approval
| Plant | Fargo, North Dakota, USAcorrect |
|---|
Other data
| Cab height | 3,819.1correct |
|---|---|
| Linkage category | Cat Icorrect |
| Predecessor | New Holland TJ530correct |
| System voltage | 12 Vcorrect |
More machines with this engine (Cummins QSX15, 17)
Where this model stands
Power-to-weight ratio: 16.3 kW/t (399 kW / 24.5 t)
Power class: Heavy (> 180 hp)
Stronger than 100% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T9060 have?
The New Holland T9060 delivers 597 hp.
How much does the New Holland T9060 weigh?
The unladen weight is 24,494 kg.
What engine does the New Holland T9060 have?
15,001 cm³ displacement, Diesel.
How much does the rear linkage of the New Holland T9060 lift?
The rear linkage lifts 8,900 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 32 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
