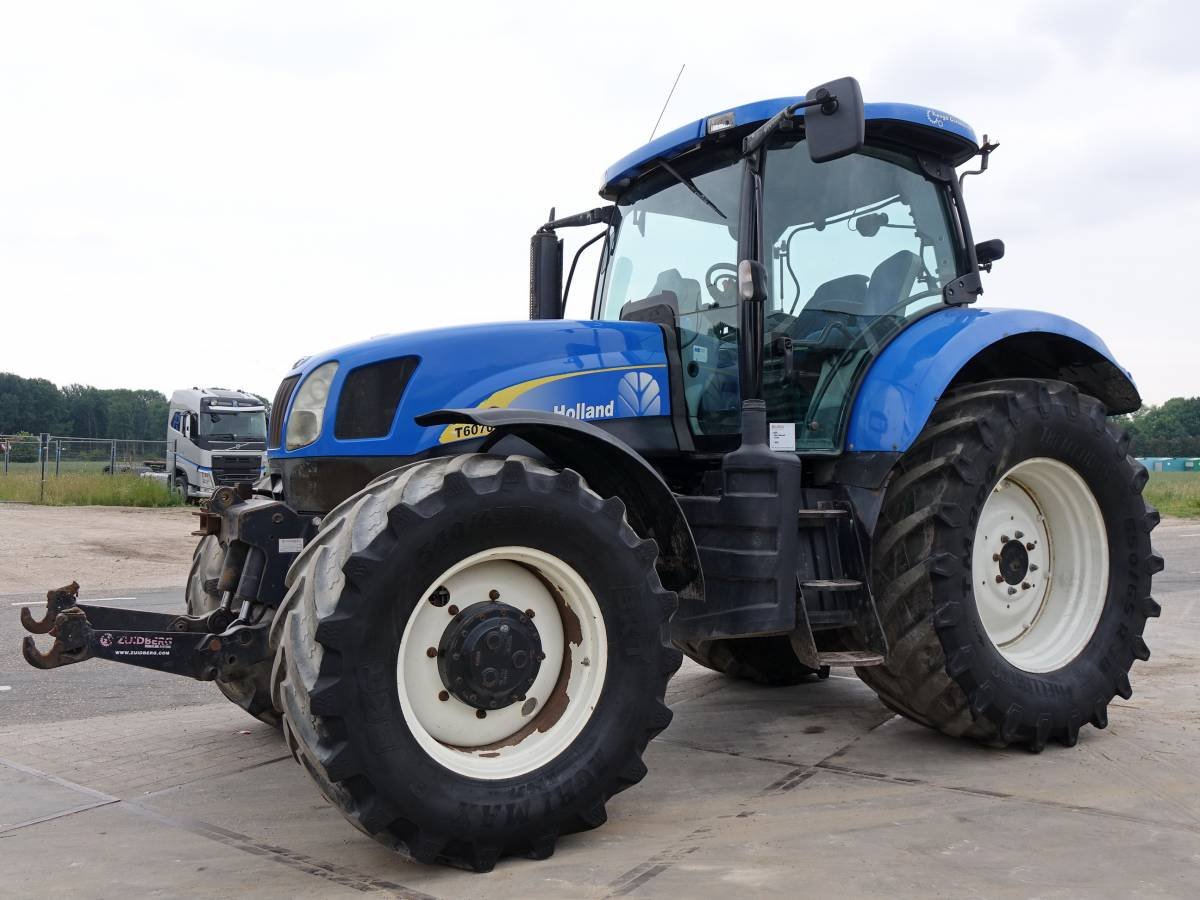

New Holland T6070 Plus 4WD
Series: T6070
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T6070 (2007–2012) – the top model of the T6000 range from Basildon with 141 hp: Plus and Elite as equipment lines, Power Command with 50 km/h, NEF six-cylinder of 6.75 litres, 90 to 123 kW, 120 hp at the PTO, up to 10.5 t gross
The T6070 was the most powerful model of the T6000 range with which New Holland replaced the TS-A range in 2007 – built in Basildon, England, with 141 hp rated and power boost to about 165 hp at the border to the T7000 range. The type logic: T marks the tractor ranges of the blue programme, 6 the mid-range series, 070 the top power step; Plus and Elite are the equipment lines, Elite with Power Command powershift, front-axle suspension and electronic hydraulics, PC50 marks, by factory nomenclature, the version with Power Command and 50 km/h, TG an equipment variant. The engine is FPT's NEF six-cylinder of 6.75 litres at 2,200 rpm with common-rail injection; the register span of 90 to 123 kW shows rated and maximum power with boost.
Read on 3 more paragraphs
The register lists 9 versions with 89.5 to 123 kW from the six-cylinder of 6,701 to 6,752 cm³, torque from 578 to 663 Nm, 120 hp at the PTO, lift capacities from 4,211 to 5,539 kg, unladen weights from 5,380 to 6,550 kg, gross weights from 10,000 to 10,500 kg, lengths from 4,649 to 5,347 mm, widths from 2,089 to 2,550 mm and heights from 2,925 to 3,090 mm.
The T6070 Elite was the tractor of contractors and big arable farms that used the six-cylinder with power boost for transport and PTO work; its successor is the T6.175 of the T6 range.
On used tractors, operating hours, the condition of engine and common-rail injection, Power Command transmission (clutch packs, calibration), front-axle suspension, hydraulics and electronics, cab and parts supply through CNH count.
Sources: Kennwerte der Modelle New Holland T6070, New Holland Agriculture (Hersteller)
Technical data
Engine
| Power | 141.9 hp (104.4 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 663 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | turbochargedcorrect |
| Engine oil capacity | 15.1 lcorrect |
Dimensions and weights
| Length | 4,950 mmcorrect |
|---|---|
| Width | 2,280 mmcorrect |
| Height | 2,925 mmcorrect |
| Wheelbase | 2,652 mmcorrect |
| Unladen weight | 6,030 kgcorrect |
Drivetrain and chassis
| Gearbox | 24 V/24 R, 16 V/16 R and 17 V/16 Rcorrect |
|---|---|
| Gearbox type | 16x16 ElectroShiftcorrect |
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Lifting capacity | 5,527 kgcorrect |
|---|---|
| Pump flow | 140.1 l/mincorrect |
| Hydraulic oil capacity | 62.1 lcorrect |
| Fuel tank capacity | 254 lcorrect |
Other data
| Cab height | 2,898.6correct |
|---|---|
| Linkage category | Cat IIIcorrect |
| PTO output | 120 hpcorrect |
| PTO speed | 540/540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 17.3 kW/t (104 kW / 6 t)
Power class: Large (100–180 hp)
Stronger than 81% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T6070 Plus have?
The New Holland T6070 Plus delivers 142 hp.
How much does the New Holland T6070 Plus weigh?
The unladen weight is 6,030 kg.
What engine does the New Holland T6070 Plus have?
6 cylinders, 6,752 cm³ displacement.
What is the PTO output of the New Holland T6070 Plus?
PTO output is 120 hp. PTO speeds: 540/540E/1000 rpm.
How much does the rear linkage of the New Holland T6070 Plus lift?
The rear linkage lifts 5,527 kg.
What are the dimensions of the New Holland T6070 Plus?
4,950 mm × 2,280 mm × 2,925 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
