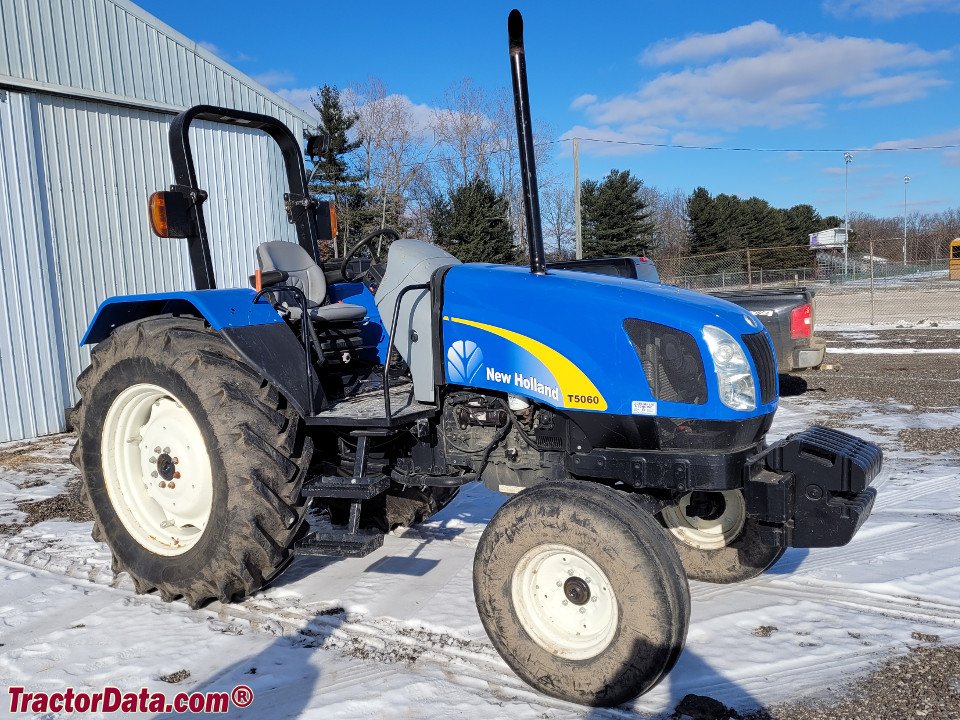

New Holland T5060 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland T5060 belongs to the New Holland 4WD Tractor series. 106 hp (78.3 kW) is what the four-cylinder engine gets out of 4.5 litres. Rated power is reached at 2,300 rpm.
At 30 km/h, that is as fast as it goes.
Within the range, rated power spans from 18.8 to 622 hp; with 106 hp, the T5060 sits in the mid-field. Directly alongside are the T6010 Plus with 101 hp below and the TB110 All-Purpose with 110 hp above.
Technical data
Engine
| Power | 106.5 hp (78.3 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbocharged/intercooledcorrect |
Dimensions and weights
| Length | 4,120 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | 12x12 w/ mechanical gearbox shuttlecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | 18.4x30correct |
| Top speed | 30.1 km/hcorrect |
| Turning radius | 4,050 mmcorrect |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 2,605 kgcorrect |
|---|---|
| Pump flow | 79.9 l/mincorrect |
| Hydraulic pressure | 197.9correct |
| Fuel tank capacity | 127.2 lcorrect |
| PTO output | 90 hpcorrect |
Other data
| Cab height | 2,560.3correct |
|---|
Frequently asked questions
How much power does the New Holland T5060 have?
The New Holland T5060 delivers 106 hp.
What engine does the New Holland T5060 have?
4 cylinders, 4,502 cm³ displacement.
How fast does the New Holland T5060 go?
Top speed is 30.1 km/h.
What is the PTO output of the New Holland T5060?
PTO output is 90 hp.
How much does the rear linkage of the New Holland T5060 lift?
The rear linkage lifts 2,605 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
