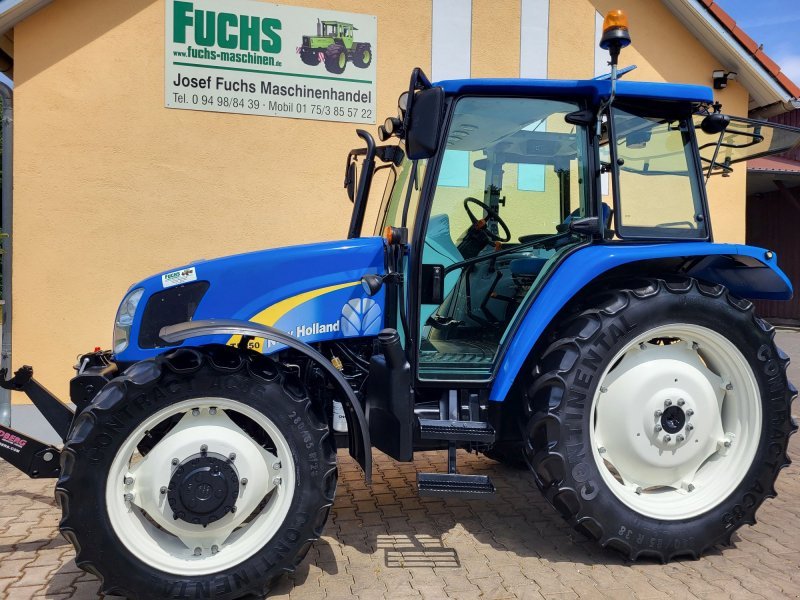

New Holland T5050 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF, Genesis, Iveco and Cummins engines
This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.
Read on 3 more paragraphs
The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.
New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.
On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.
Sources: Kennwerte der Modelle New Holland (weitere Modelle), New Holland Agriculture (Hersteller)
Technical data
Engine
| Power | 96.3 hp (70.8 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 419 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbocharged/intercooledcorrect |
Dimensions and weights
| Length | 4,120 mmcorrect |
|---|---|
| Width | 2,005 mmcorrect |
| Height | 2,546 mmcorrect |
Drivetrain and chassis
| Gearbox | 12 V/12 R and 24 V/24 Rcorrect |
|---|---|
| Gearbox type | 12x12 w/ mechanical gearbox shuttlecorrect |
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | 18.4x30correct |
| Top speed | 30.1 km/hcorrect |
| Turning radius | 4,050 mmcorrect |
Working data
| Lifting capacity | 2,605 kgcorrect |
|---|---|
| Pump flow | 79.9 l/mincorrect |
| Hydraulic pressure | 197.9correct |
| Fuel tank capacity | 127.2 lcorrect |
Other data
| Cab height | 2,560.3correct |
|---|---|
| Linkage category | Cat I/IIcorrect |
| PTO output | 80 hpcorrect |
| PTO speed | 540/540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
Frequently asked questions
How much power does the New Holland T5050 have?
The New Holland T5050 delivers 96.3 hp.
What engine does the New Holland T5050 have?
4 cylinders, 4,502 cm³ displacement.
How fast does the New Holland T5050 go?
Top speed is 30.1 km/h.
What is the PTO output of the New Holland T5050?
PTO output is 80 hp. PTO speeds: 540/540E/1000 rpm.
How much does the rear linkage of the New Holland T5050 lift?
The rear linkage lifts 2,605 kg.
What are the dimensions of the New Holland T5050?
4,120 mm × 2,005 mm × 2,546 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
