New Holland T4050 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

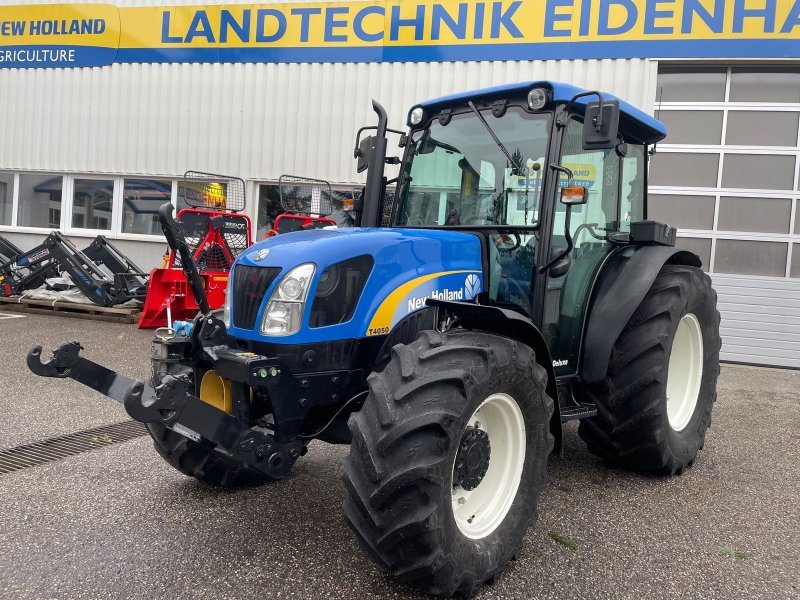

The New Holland T4050 is a tractor from the New Holland 2WD Tractor series. The four-cylinder engine, displacing 4.5 litres, produces 96 hp (70.8 kW). Rated output is reached at 2,300 rpm, so it works in the lower rev range.
Top speed is 38 km/h. Wheelbase is 2.20 m.
Within the range, rated power spans from 25 to 157 hp; with 96.3 hp, the T4050 sits in the mid-field. Directly alongside are the TN95FA with 92.3 hp below and the TB100 with 99.4 hp above.
Technical data
Engine
| Engine model | NEFcorrect |
|---|---|
| Power | 96.3 hp (70.8 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbocharged air to air intercooledcorrect |
Dimensions and weights
| Wheelbase | 2,203.7correct |
|---|
Drivetrain and chassis
| Gearbox type | 16RX16R Synchro Command transmission with mechanical gearbox shuttle or clutchless powercorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Top speed | 37.8 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 96.5 l/mincorrect |
|---|---|
| Fuel tank capacity | 82.1 lcorrect |
Frequently asked questions
How much power does the New Holland T4050 have?
The New Holland T4050 delivers 96.3 hp.
What engine does the New Holland T4050 have?
4 cylinders, 4,502 cm³ displacement.
How fast does the New Holland T4050 go?
Top speed is 37.8 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
