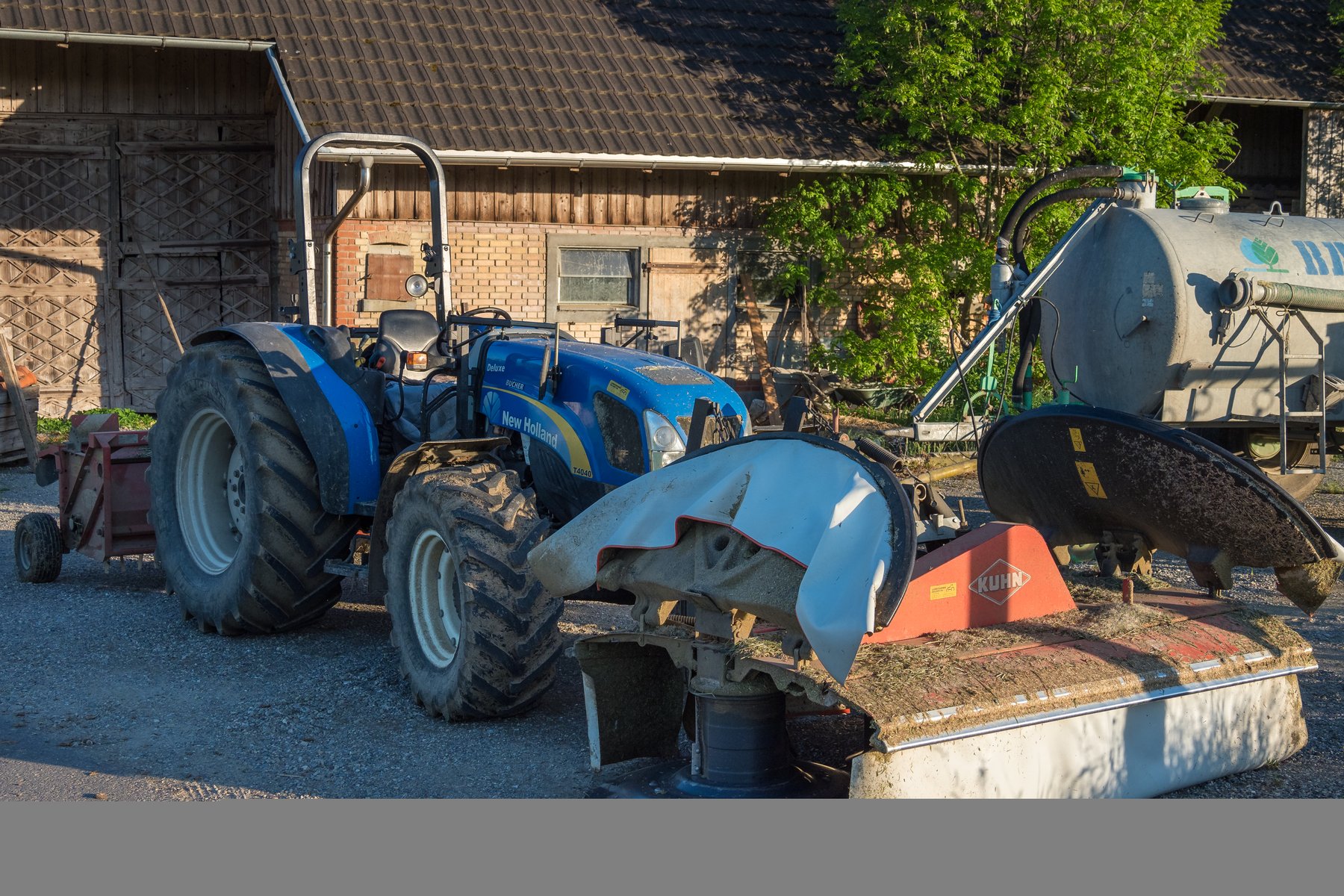

New Holland T4040 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the New Holland T4040 belongs to the New Holland 4WD Tractor series. 85 hp (62.6 kW) is what the four-cylinder engine gets out of 4.5 litres. Rated power arrives at 2,300 rpm — the engine pulls from low down rather than needing to be revved.
It will not go faster than 38 km/h — a working pace, not a travelling one.
Within the range, rated power spans from 18.8 to 622 hp; with 85.2 hp, the T4040 sits in the mid-field. Directly alongside are the TN85FA with 83.1 hp below and the NH 640 S with 86.2 hp above.
New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF, Genesis, Iveco and Cummins engines
This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.
Read on 3 more paragraphs
The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.
New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.
On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.
Sources: Kennwerte der Modelle New Holland (weitere Modelle), New Holland Agriculture (Hersteller)
Technical data
Engine
| Engine model | NEFcorrect |
|---|---|
| Power | 85.2 hp (62.6 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 373 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbocharged air to air intercooledcorrect |
Dimensions and weights
| Length | 3,520 mmcorrect |
|---|---|
| Width | 1,867 mmcorrect |
| Height | 2,340 mmcorrect |
| Wheelbase | 2,185 mmcorrect |
| Unladen weight | 3,755 kgcorrect |
Drivetrain and chassis
| Gearbox | 16 V/16 R or 32 V/16 Rcorrect |
|---|---|
| Gearbox type | 16FX16R Synchro Command transmission with mechanical gearbox shuttle or clutcheless powecorrect |
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Tyre size | Front 12.4R20, Rear 16.9x28R1correct |
| Top speed | 37.8 km/hcorrect |
Working data
| Lifting capacity | 1,800 kgcorrect |
|---|---|
| Pump flow | 96.5 l/mincorrect |
| Hydraulic pressure | 190correct |
| Fuel tank capacity | 82.1 lcorrect |
Other data
| Cab height | 2,322.6correct |
|---|---|
| Linkage category | Cat I/IIcorrect |
| PTO output | 70 hpcorrect |
| PTO speed | 540/540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
More machines with this engine (Iveco NEF, 5)
Where this model stands
Power-to-weight ratio: 16.7 kW/t (63 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 58% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T4040 have?
The New Holland T4040 delivers 85.2 hp.
How much does the New Holland T4040 weigh?
The unladen weight is 3,755 kg.
What engine does the New Holland T4040 have?
4 cylinders, 4,502 cm³ displacement.
How fast does the New Holland T4040 go?
Top speed is 37.8 km/h.
What is the PTO output of the New Holland T4040?
PTO output is 70 hp. PTO speeds: 540/540E/1000 rpm.
How much does the rear linkage of the New Holland T4040 lift?
The rear linkage lifts 1,800 kg.
What are the dimensions of the New Holland T4040?
3,520 mm × 1,867 mm × 2,340 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
