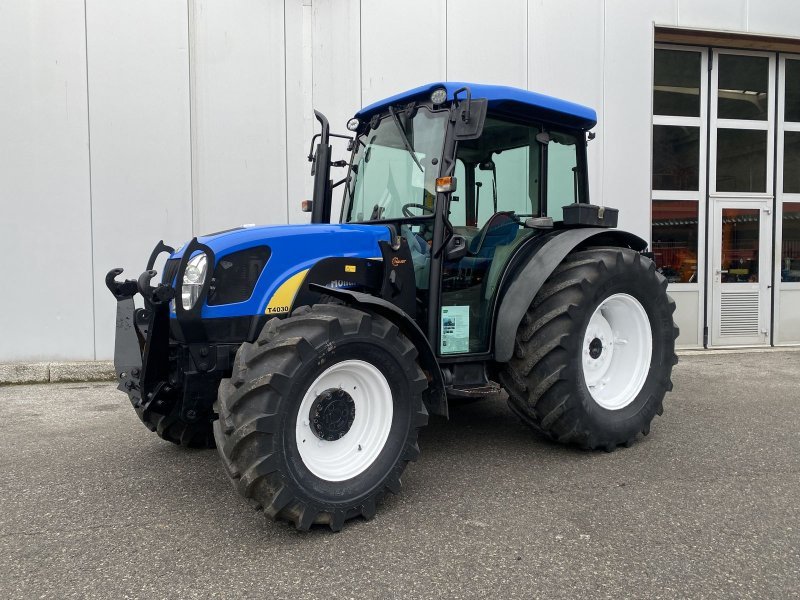

New Holland T4030 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland T4030 is a tractor from the New Holland 2WD Tractor series. The four-cylinder engine, displacing 3.2 litres, produces 77 hp (56.7 kW). Rated speed is 2,300 rpm.
It will not go faster than 38 km/h — a working pace, not a travelling one. Wheelbase is 2.12 m.
Within the range, rated power spans from 25 to 157 hp; with 77.1 hp, the T4030 sits in the mid-field. Directly alongside are the TT75A with 76 hp below and the TL80A with 81.1 hp above.
Technical data
Engine
| Engine model | F5Ccorrect |
|---|---|
| Power | 77.1 hp (56.7 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,200.4 cm³correct |
| Aspiration | turbocharged air to air intercooledcorrect |
Dimensions and weights
| Length | 3,440 mmcorrect |
|---|---|
| Wheelbase | 2,115.3correct |
Drivetrain and chassis
| Gearbox type | 16RX16R Synchro Command transmission with mechanical gearbox shuttle or clutchless powercorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Top speed | 37.8 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 1,800 kgcorrect |
|---|---|
| Pump flow | 84.4 l/mincorrect |
| Fuel tank capacity | 82.1 lcorrect |
| PTO output | 62 hpcorrect |
More machines with this engine (Iveco F5C, 8)
Frequently asked questions
How much power does the New Holland T4030 have?
The New Holland T4030 delivers 77.1 hp.
What engine does the New Holland T4030 have?
4 cylinders, 3,200 cm³ displacement.
How fast does the New Holland T4030 go?
Top speed is 37.8 km/h.
What is the PTO output of the New Holland T4030?
PTO output is 62 hp.
How much does the rear linkage of the New Holland T4030 lift?
The rear linkage lifts 1,800 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
