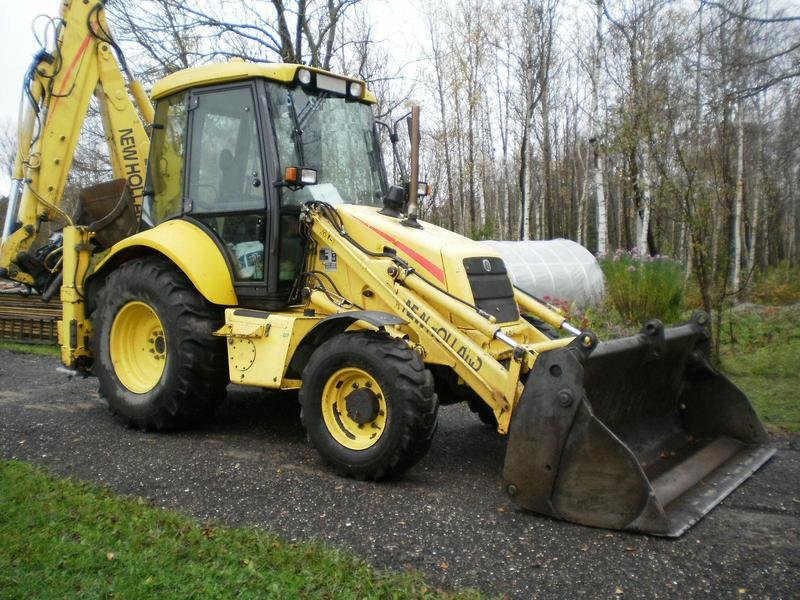

New Holland LB110

Series: New Holland Loader Backhoe

Source: https://www.truck1.eu/construction-machinery/backhoe-loaders

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland LB110 is a model in the New Holland Loader Backhoe series. The engine delivers 109.5 hp (76.8 kW), with a displacement of 5,001.3 cm³. The wheelbase measures 2,176.3 mm. Ground clearance is 396.2 mm. The tank holds 124.9 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The pump delivers 159 l/min. The hydraulic tank holds 143.8 litres. Working pressure is 209.9 bar. The cooling system holds 24.6 litres. The electrical system runs on 12 V. The engine fitted is the BSD 450T. The New Holland Loader Backhoe series covers 25 models. Rated output within it ranges from 84.2 to 111.5 hp; the LB110 sits at the top of that range with 109.5 hp. Its immediate neighbours are the 675E below it with 101.4 hp and the B110 above it with 111.5 hp. 502 New Holland models across 32 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBSD 450Tcorrect
Power109.5 hp (76.8 kW)correct
Displacement5,001.3 cm³correct
Coolant capacity24.6 lcorrect

Dimensions and weights

Wheelbase2,176.3correct
Ground clearance396.2correct

Drivetrain and chassis

Gearbox typepower-reveresing/torque converter, powershift transmissioncorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow159 l/mincorrect
Hydraulic oil capacity143.8 lcorrect
Hydraulic pressure209.9correct
Fuel tank capacity124.9 lcorrect

More machines with this engine (New Holland BSD 450T, 2)

Frequently asked questions

How much power does the New Holland LB110 have?

The New Holland LB110 delivers 110 hp.

What engine does the New Holland LB110 have?

5,001 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
