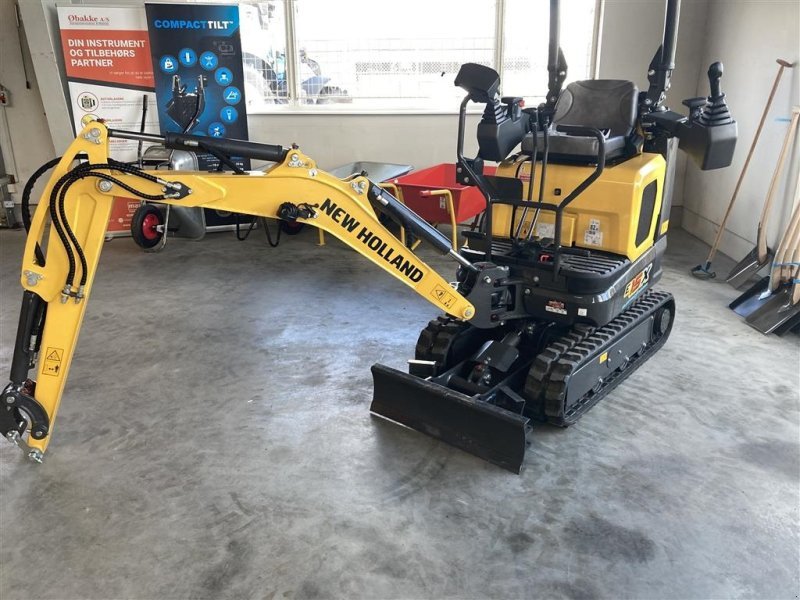

New Holland EH15.B
Series: New Holland Mini Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland mini excavators EH15 to EH35, E9SR to E40.2SR and E18B to E35 – three origins: Fiat-Hitachi, the Kobelco alliance and the own E series, 6 to 32 kW
New Holland's mini excavators bear the traces of three partnerships, and the type designations sort them. The EH models (EH15.B, EH27.B, EH30.B, EH35.B) come from the Fiat-Hitachi era of the 1990s, when the group built excavators together with Hitachi – the number gives the weight class in hundreds of kilograms. The E-SR models (E9SR to E40.2SR) come from the alliance with Kobelco from 2002 to 2012: SR stands for Short Radius, the short-tail excavator, .2 for the second generation. The E models without SR (E15, E16, E18, E18B, E27, E27B, E30, E35) are the range New Holland continued under its own management after the alliance ended. The EC240 in the register is a 24-tonne excavator that the sorting placed here.
Read on 3 more paragraphs
The register lists 21 versions; the minis run from 6 to about 30 kW from two- to four-cylinders of 523 to 2,200 cm³ – Yanmar 3TNE68, 3TNE74, 3TNV82 and 3TNV88, Mitsubishi L3E in the smallest model – at rated speeds of 2,000 to 2,400 rpm and operating weights from 1,060 to 4,440 kg.
The Kobelco era brought the short tail as standard and the cabs that still shape New Holland today; the sister models ran at Case as the CX-B range, as the identical Yanmar engines in both register rows show.
On used machines, operating hours, play in boom and stick pins, the condition of undercarriage and rubber tracks, leak-free cylinders and swivel joint and parts supply, which for the SR models runs through CNH and Kobelco part numbers, are what count.
Sources: Kennwerte der Modelle New Holland Minibagger, New Holland Construction (Hersteller)
Technical data
Engine
| Engine model | 3TNE68-YBcorrect |
|---|---|
| Power | 12.1 hp (8.9 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 784.9 cm³correct |
Dimensions and weights
| Ground clearance | 182.9correct |
|---|---|
| Unladen weight | 1,470 kgcorrect |
Working data
| Pump flow | 9.5 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 17 lcorrect |
| Hydraulic pressure | 206 barcorrect |
| Fuel tank capacity | 15.1 lcorrect |
Other data
| Cab height | 2,502.4correct |
|---|---|
| System voltage | 12 Vcorrect |
More machines with this engine (3TNE68-YB, 2)
Where this model stands
Power-to-weight ratio: 6.1 kW/t (9 kW / 1.5 t)
Stronger than 4% of the mini excavators in the register — out of 400 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland EH15.B have?
The New Holland EH15.B delivers 12.1 hp.
How much does the New Holland EH15.B weigh?
The unladen weight is 1,470 kg.
What engine does the New Holland EH15.B have?
3 cylinders, 785 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
