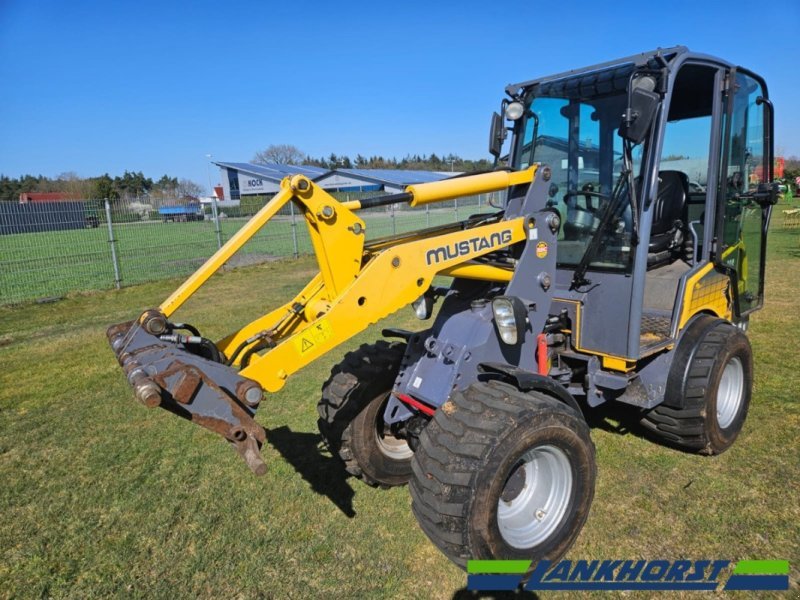

Mustang MTL20

Series: Mustang Multi Terrain Loader

Source: https://www.technikboerse.com/ru/gebraucht/mini-pogruz-ik-17

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Mustang MTL20 is a model in the Mustang Multi Terrain Loader series. The engine delivers 81.6 hp (60 kW), has 4 cylinders, with a displacement of 3,100.4 cm³. Rated speed is 2,400 rpm. The unladen weight is 4,350 kg. Ground clearance is 325.1 mm. The tank holds 90.1 litres. Maximum torque is reached at 1,800 rpm. The hydraulic tank holds 83.3 litres. Working pressure is 206 bar. The cooling system holds 15.1 litres. The oil fill is 9.5 litres. The electrical system runs on 12 V. The engine fitted is the 4JG1T. The Mustang Multi Terrain Loader series covers 3 models. Rated output within it ranges from 66.7 to 97.9 hp; the MTL20 sits in the middle of that range with 81.6 hp. Its immediate neighbours are the MTL16 below it with 66.7 hp and the MTL25 above it with 97.9 hp. 37 Mustang models across 8 series are on record. The model is listed under Wheel loaders. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model	4JG1Tcorrect
Power	81.6 hp (60 kW)correct
Rated speed	2,400 rpmcorrect
Speed at max. torque	1,800 rpmcorrect
Cylinders	4correct
Displacement	3,100.4 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	15.1 lcorrect
Engine oil capacity	9.5 lcorrect

Dimensions and weights

Ground clearance	325.1correct
Unladen weight	4,350 kgcorrect

Drivetrain and chassis

System voltage	12 Vcorrect

Working data

Hydraulic oil capacity	83.3 lcorrect
Hydraulic pressure	206correct
Fuel tank capacity	90.1 lcorrect

Other data

Height	2,167.1correct

Where this model stands

Power-to-weight ratio: 13.8 kW/t (60 kW / 4.3 t)

Stronger than 29% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Mustang MTL20 have?

The Mustang MTL20 delivers 81.6 hp.

How much does the Mustang MTL20 weigh?

The unladen weight is 4,350 kg.

What engine does the Mustang MTL20 have?

4 cylinders, 3,100 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
