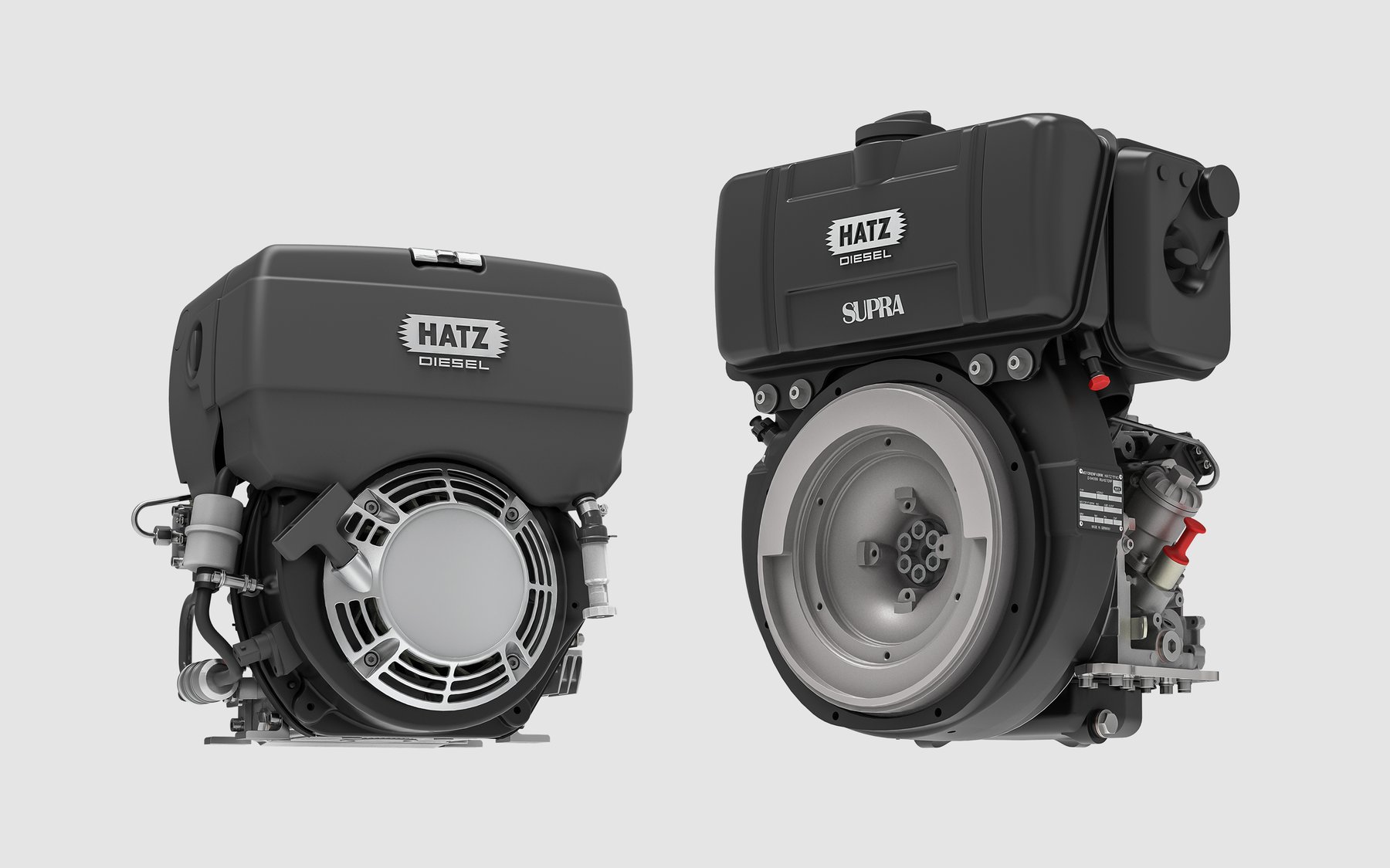

Motorenfabrik Hatz B20-2900

Built: 2012-2012 · Series: Other models

Source: https://hatz.com/en-global/ hatz.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The B20-2900 comes from Motorenfabrik Hatz Gmbh &. Production: 2012. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 3 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Motorenfabrik Hatz Gmbh & range ranges from 2 to 50 kW; the B20-2900 sits at the bottom of that range with 3 kW. Its immediate neighbours are the B20-2050 below it with 2 kW and the 1B30 / V above it with 4 kW. 82 Motorenfabrik Hatz Gmbh & models are on record. The model is listed under Non-road diesel engines. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine code1B20/1B20Rcorrect
Engine familyCHZXL.243C20correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output3 kWcorrect
Power bandkW<8correct
Rated speed2,900 rpmcorrect
Maximum torque7.3 N·mcorrect
Speed at max. torque2,900 rpmcorrect
Cylinders1correct
Cylinder layoutin linecorrect
Bore69 mmcorrect
Stroke65 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version1B20/1B20Rcorrect
Sales regionbothcorrect

Frequently asked questions

How much power does the Motorenfabrik Hatz B20-2900 have?

The Motorenfabrik Hatz B20-2900 delivers 3 kW.

When was the Motorenfabrik Hatz B20-2900 built?

Production years: 2012.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
